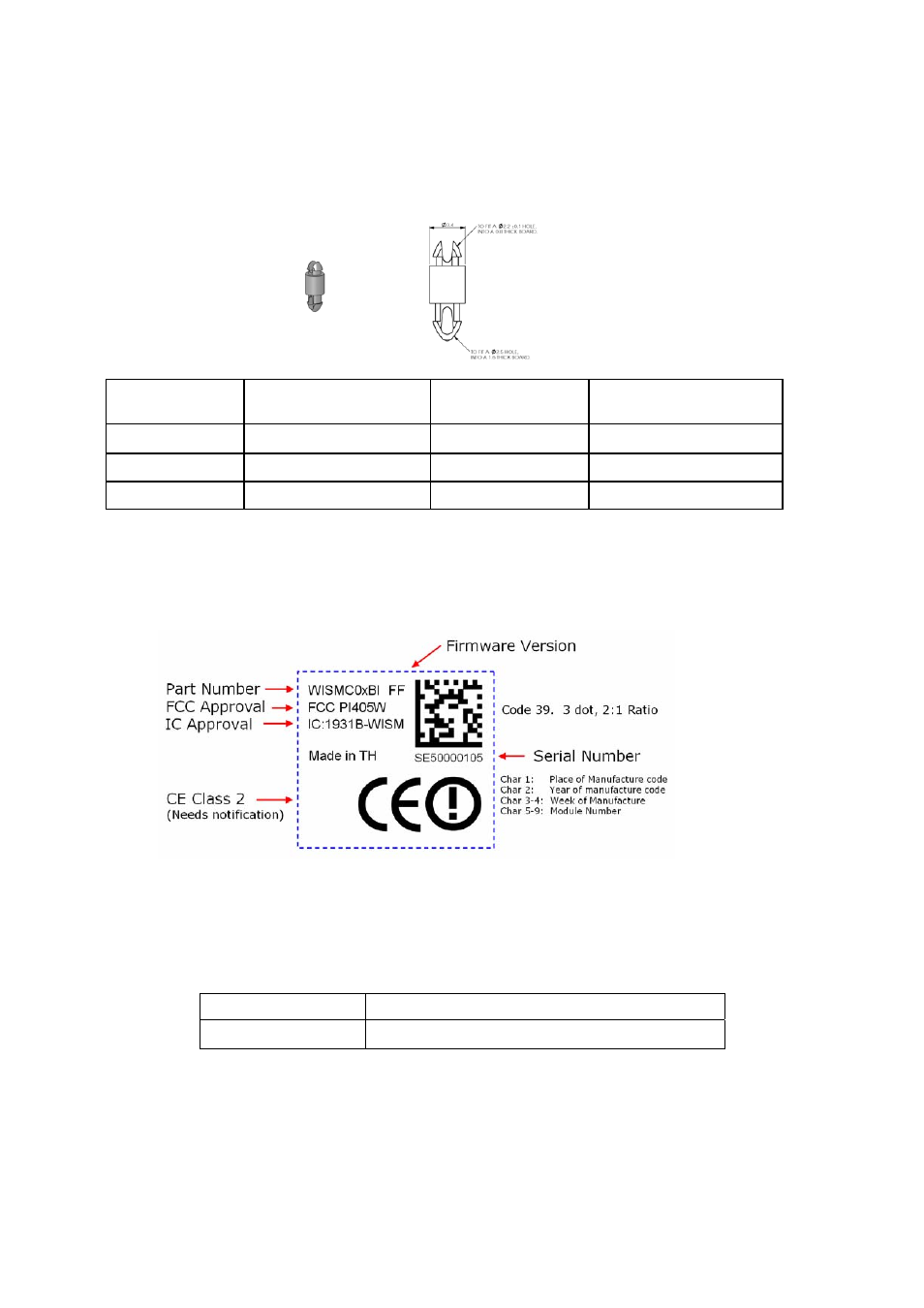

9.8.1 Fixing Pillars
EZURiO in conjunction with Richco has designed a mounting pillar for use with the Wireless LAN
Module. This allows the module to be securely held to a primary pcb using snap fit details. A variety of
heights are available to accommodate different variants of Hirose stacked connectors. Pillars
supporting a 3.5mm stacked board height can be supplied by EZURiO. These and alternative spacings
can also be ordered directly from Richco.
Customer designs using these pillars should use 2.5mm diameter holes on a 1.6mm thick PCB.
DSH_WISMC01_1v2 WISM 40 pin TCP-IP Data Sheet.doc © 2007 EZURiO Ltd
Page 17
Board Spacing Part number Source Matching HRS PCB
Socket
3.6 mm NPR2005-153-3.6 EZURiO / Richco CL537-0032-4-86
4.1 mm NPR2005-153-4.1 Richco CL537-0057-5-86
5.1 mm NPR2005-153-5.1 Richco CL537-0157-0-86
9.9 Labelling
The label contains the Part number, firmware version loaded at manufacture, serial number and
statutory approvals information.
9.10 Ordering Information
The WISM described in this data sheet should be ordered using the part number below:
Part Number Description
WISMC01BI 802.11b/g Wireless LAN Processor Module
