Application Hints
(Continued)
it will expect to see 13 SCLK pulses for each I O transmis-
sion The number of SCLK pulses that the ADC expects to
see is the same as the digital output word length The digital
output word length is controlled by the Data Out (DO) for-
mat The DO format maybe changed any time a conversion
is started or when the sign bit is turned on or off The table
below details out the number of clock periods required for
different DO formats
Number of
DO Format
SCLKs
Expected
8-Bit MSB or LSB First
SIGN OFF
8
SIGN ON
9
12-Bit MSB or LSB First
SIGN OFF
12
SIGN ON
13
16-Bit MSB or LSB first
SIGN OFF
16
SIGN ON
17
If erroneous SCLK pulses desynchronize the communica-
tions the simplest way to recover is by cycling the power
supply to the device Not being able to easily resynchronize
the device is a shortcoming of leaving CS low continuously
The number of clock pulses required for an I O exchange
may be different for the case when CS is left low continu-
ously vs the case when CS is cycled Take the I O se-
quence detailed in
Figure 5
(Typical Power Supply Se-
quence) as an example The table below lists the number of
SCLK pulses required for each instruction
Instruction
CS Low
CS Strobed
Continuously
Auto Cal
13 SCLKs
8 SCLKs
Read Status
13 SCLKs
8 SCLKs
Read Status
13 SCLKs
8 SCLKs
12-Bit a Sign Conv 1
13 SCLKs
8 SCLKs
12-Bit a Sign Conv 2
13 SCLKs
13 SCLKs
1 4 Analog Input Channel Selection
The data input on DI also selects the channel configuration
for a particular A D conversion (see Tables II III IV and V)
In
Figure 6
the only times when the channel configuration
could be modified would be during I O sequences 1 4 5
and 6 Input channels are reselected before the start of
each new conversion Shown below is the data bit stream
required on DI during I O sequence number 4 in
Figure 6
to set CH1 as the positive input and CH0 as the negative
input for the different versions of ADCs
Part Number
DI Data
DI0 DI1 DI2 DI3 DI4 DI5 DI6 DI7
ADC12H030
L
H
L
L
H
L
X
X
ADC12030
ADC12H032
L
H
L
L
H
L
X
X
ADC12032
ADC12H034
L
H
L
L
L
H
L
X
ADC12034
ADC12H038
L
H
L
L
L
L
H
L
ADC12038
Where X can be a logic high (H) or low (L)
1 5 Power Up Down
The ADC may be powered down at any time by taking the
PD pin HIGH or by the instruction input on DI (see Tables V
and VI and the Power Up Down timing diagrams) When
the ADC is powered down in this way the circuitry neces-
sary for an A D conversion is deactivated The circuitry nec-
essary for digital I O is kept active Hardware power up
down is controlled by the state of the PD pin Software pow-
er-up down is controlled by the instruction issued to the
ADC If a software power up instruction is issued to the ADC
while a hardware power down is in effect (PD pin high) the
device will remain in the power-down state If a software
power down instruction is issued to the ADC while a hard-
ware power up is in effect (PD pin low) the device will power
down When the device is powered down by software it
may be powered up by either issuing a software power up
instruction or by taking PD pin high and then low If the
power down command is issued during an A D conversion
that conversion is disrupted Therefore the data output after
power up cannot be relied upon
TL H 11354 – 37

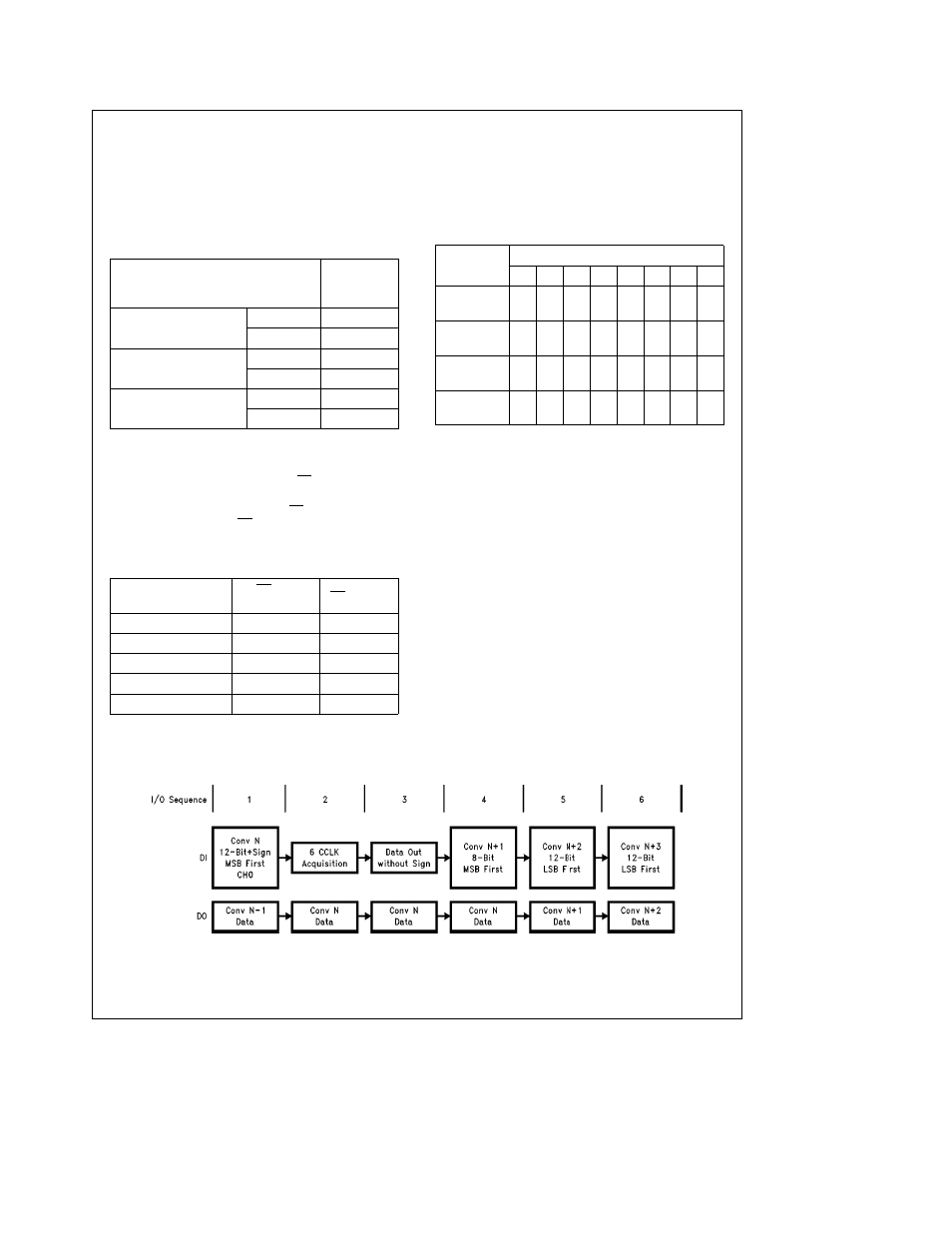

FIGURE 6 Changing the ADC’s Conversion Configuration
