Typical Dynamic Performance Characteristics
(Continued)

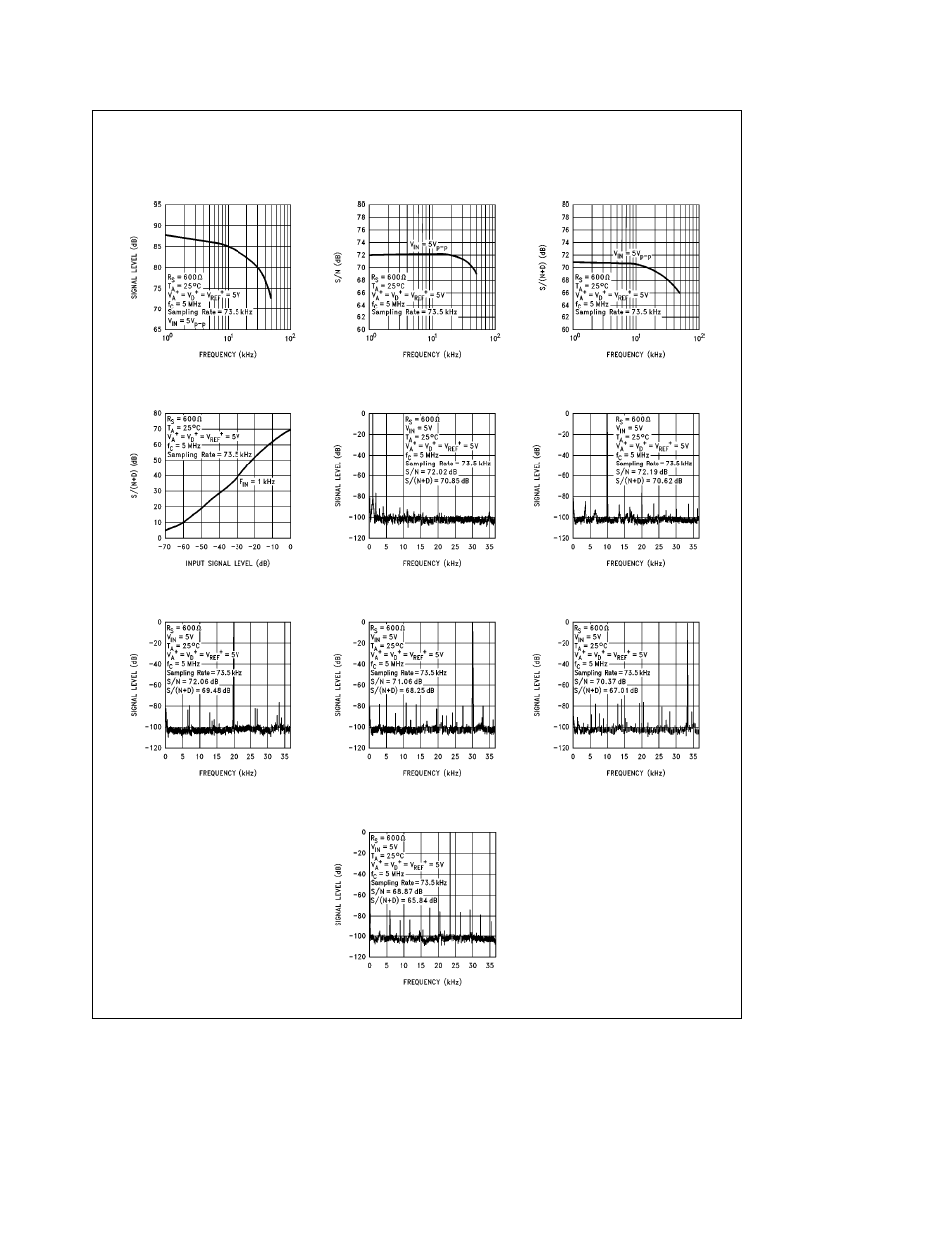

The following curves apply for 12-bit a sign mode after auto-calibration unless otherwise specified
Dynamic Range
Bipolar Spurious Free
vs Input Frequency
Unipolar Signal-to-Noise Ratio
vs Input Frequency
a Distortion Ratio
Unipolar Signal-to-Noise
vs Input Signal Level
a Distortion Ratio
Unipolar Signal-to-Noise
with 1 kHz Sine Wave Input
Unipolar Spectral Response
with 10 kHz Sine Wave Input
Unipolar Spectral Response
with 20 kHz Sine Wave Input
Unipolar Spectral Response
with 30 kHz Sine Wave Input
Unipolar Spectral Response
with 40 kHz Sine Wave Input
Unipolar Spectral Response
with 50 kHz Sine Wave Input
Unipolar Spectral Response
TL H 11354 – 17
