MAX9586–MAX9589
Single, Dual, Triple, and Quad Standard-Definition
Video Filter Amplifiers with AC-Coupled Input Buffers
______________________________________________________________________________________ 23
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages.)

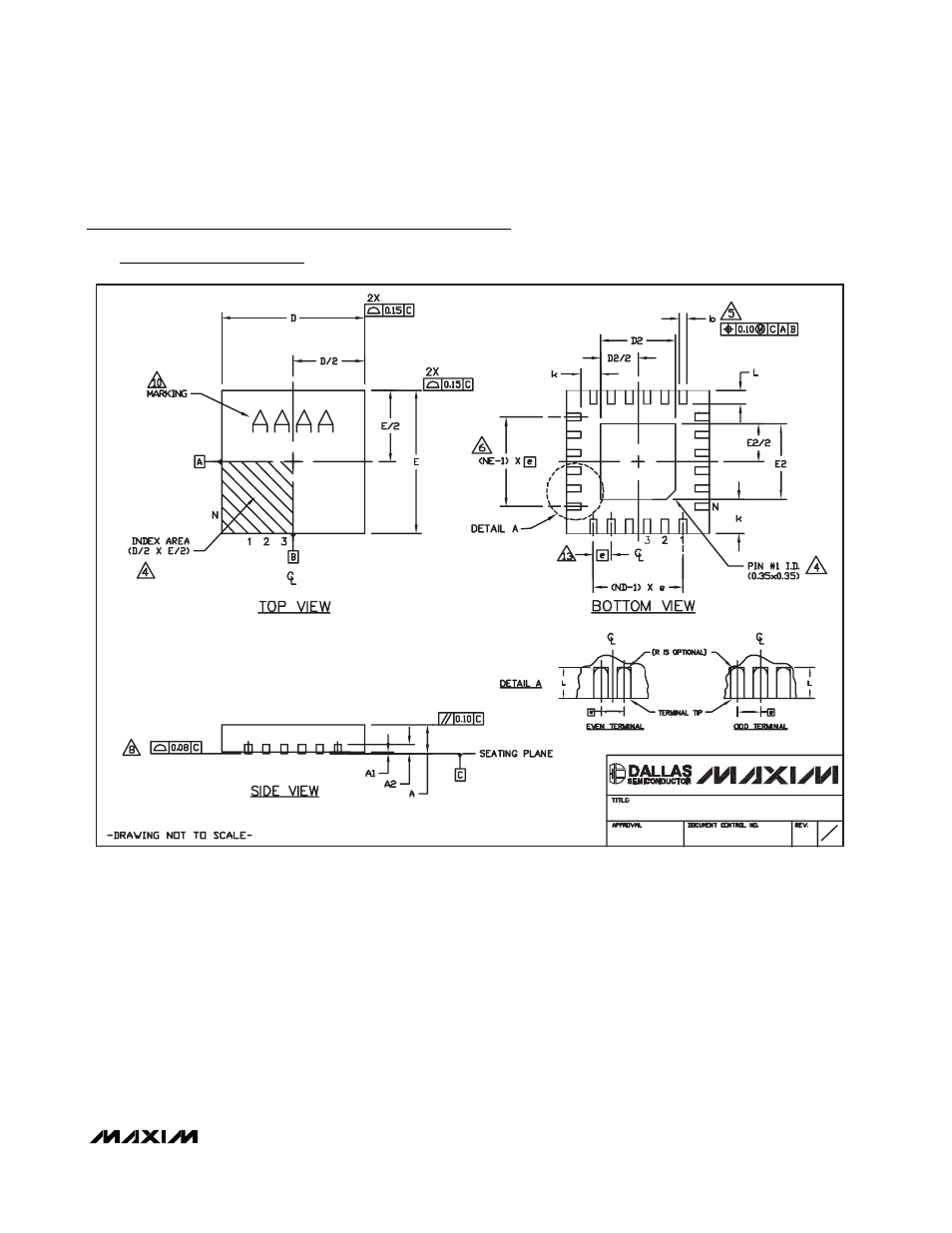

24L QFN THIN.EPS
PACKAGE OUTLINE,
21-0139 2
1
E
12, 16, 20, 24, 28L THIN QFN, 4x4x0.8mm
