MAX66140

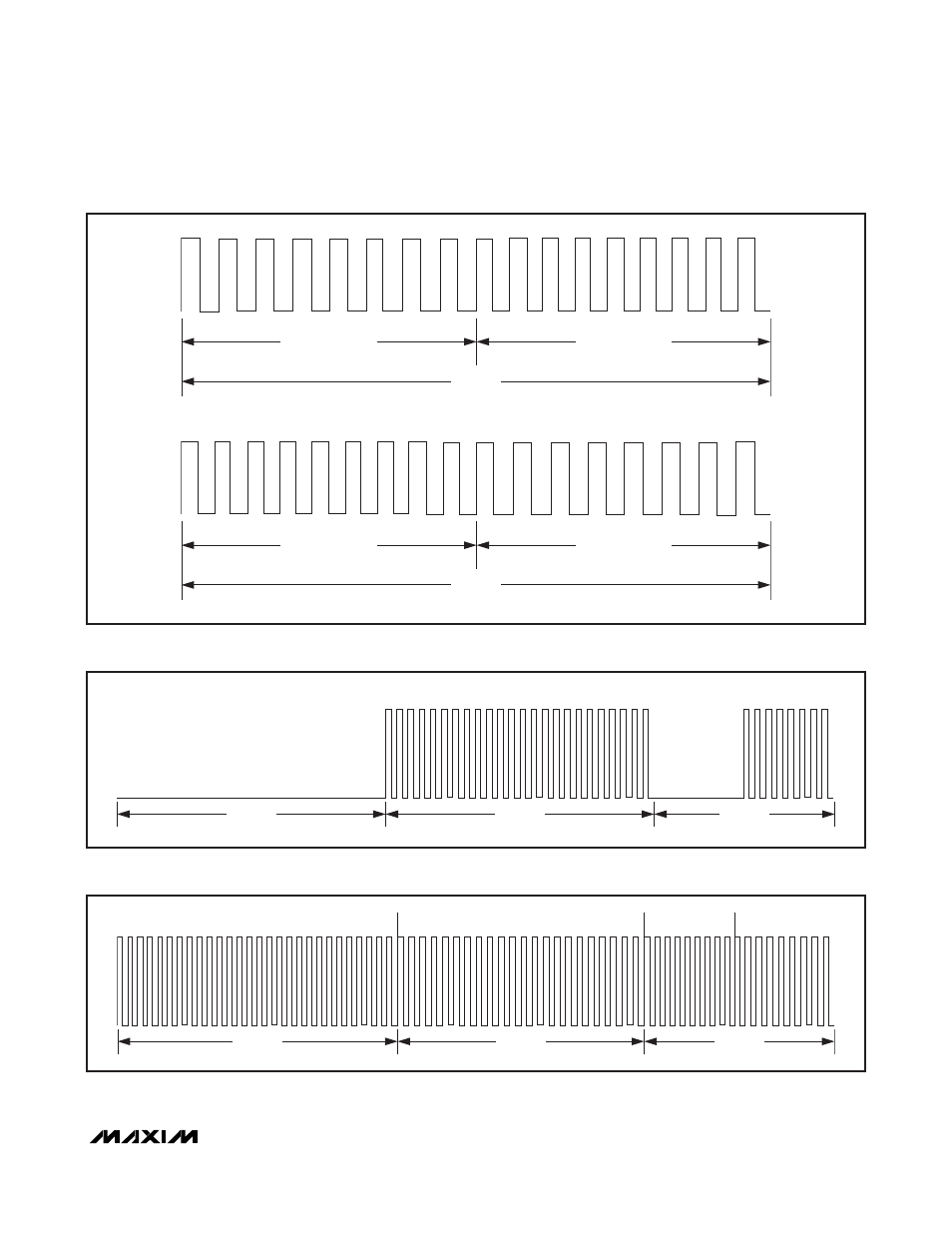

Figure 13. Uplink Coding, Two Subcarriers Case (High Data-Rate Timing)
TRANSMITTING A ZERO
484.28kHz, ~ 18.58 μs 423.75kHz, ~ 18.88 μs
~ 37.46 μs
TRANSMITTING A ONE
484.28kHz, ~ 18.58 μs 423.75kHz, ~ 18.88 μs
~ 37.46 μs
Figure 14. Uplink SOF, Single Subcarrier Case (High Data-Rate Timing)
423.75kHz 423.75kHz
~ 56.64 μs ~ 56.64 μs ~ 37.76 μs
Figure 15. Uplink SOF, Two Subcarriers Case (High Data-Rate Timing)
423.75kHz 423.75kHz 484.28kHz 484.28kHz
~ 55.75 μs ~ 56.64 μs ~ 37.46 μs
ISO 15693-Compliant Secure Memory
______________________________________________________________________________________ 11
ABRIDGED DATA SHEET
