MAX66140
ISO 15693-Compliant Secure Memory
10 ______________________________________________________________________________________
ABRIDGED DATA SHEET

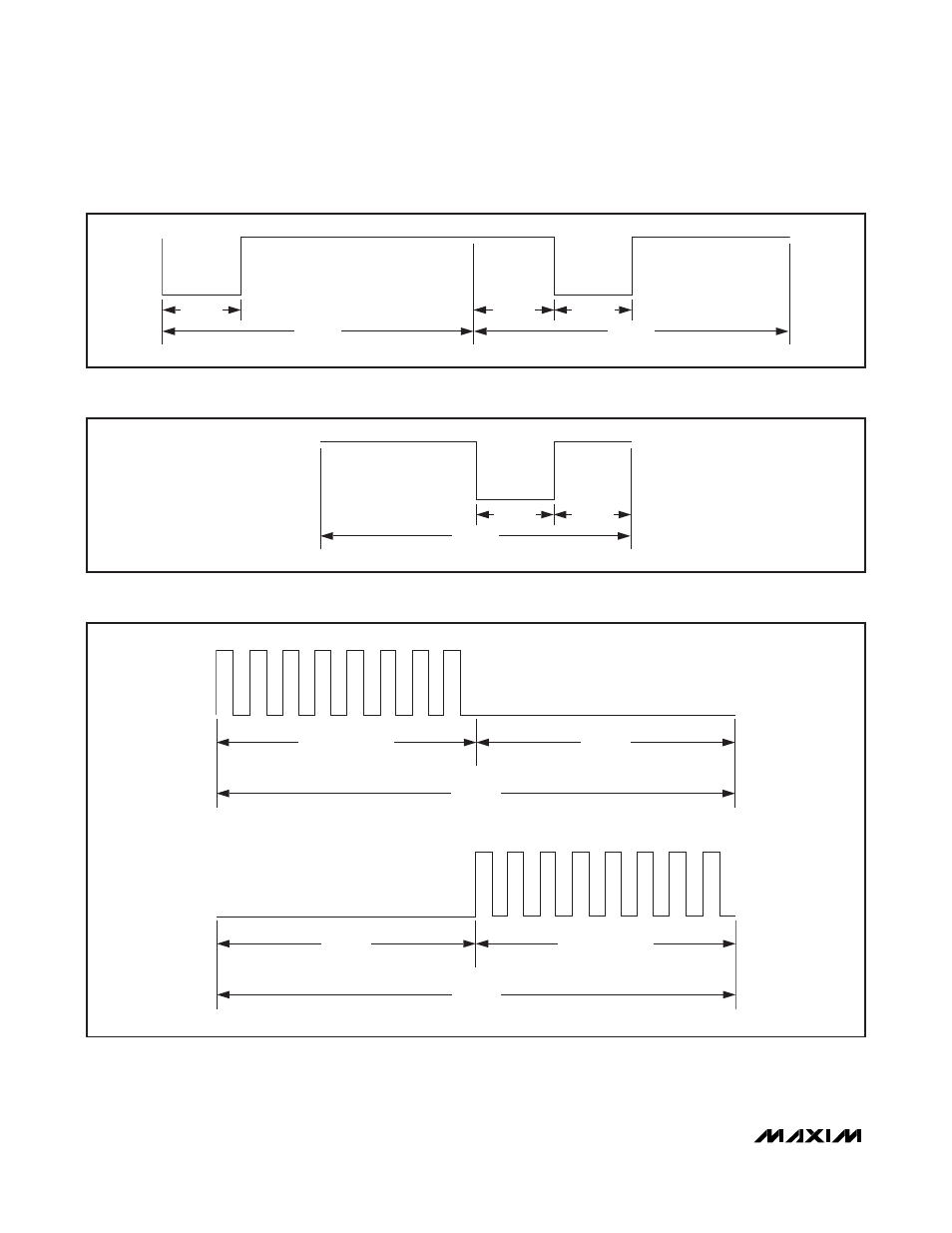

Figure 10. Downlink SOF for “1 Out of 4” Coding (Carrier Not Shown)
~ 9.44 μs
~ 37.76 μs ~ 37.76 μs
~ 9.44 μs ~ 9.44 μs
Figure 11. Downlink EOF (Identical for Both Coding Schemes, Carrier Not Shown)
~ 9.44 μs
~ 37.76 μs
~ 9.44 μs
Figure 12. Uplink Coding, Single Subcarrier Case (High Data-Rate Timing)
TRANSMITTING A ZERO
423.75kHz, ~ 18.88 μs ~ 18.88 μs
~ 37.76 μs
TRANSMITTING A ONE
423.75kHz, ~ 18.88 μs ~ 18.88 μs
~ 37.76 μs
