TC Electronic G-Major 2 - Manual (Page 9)

8

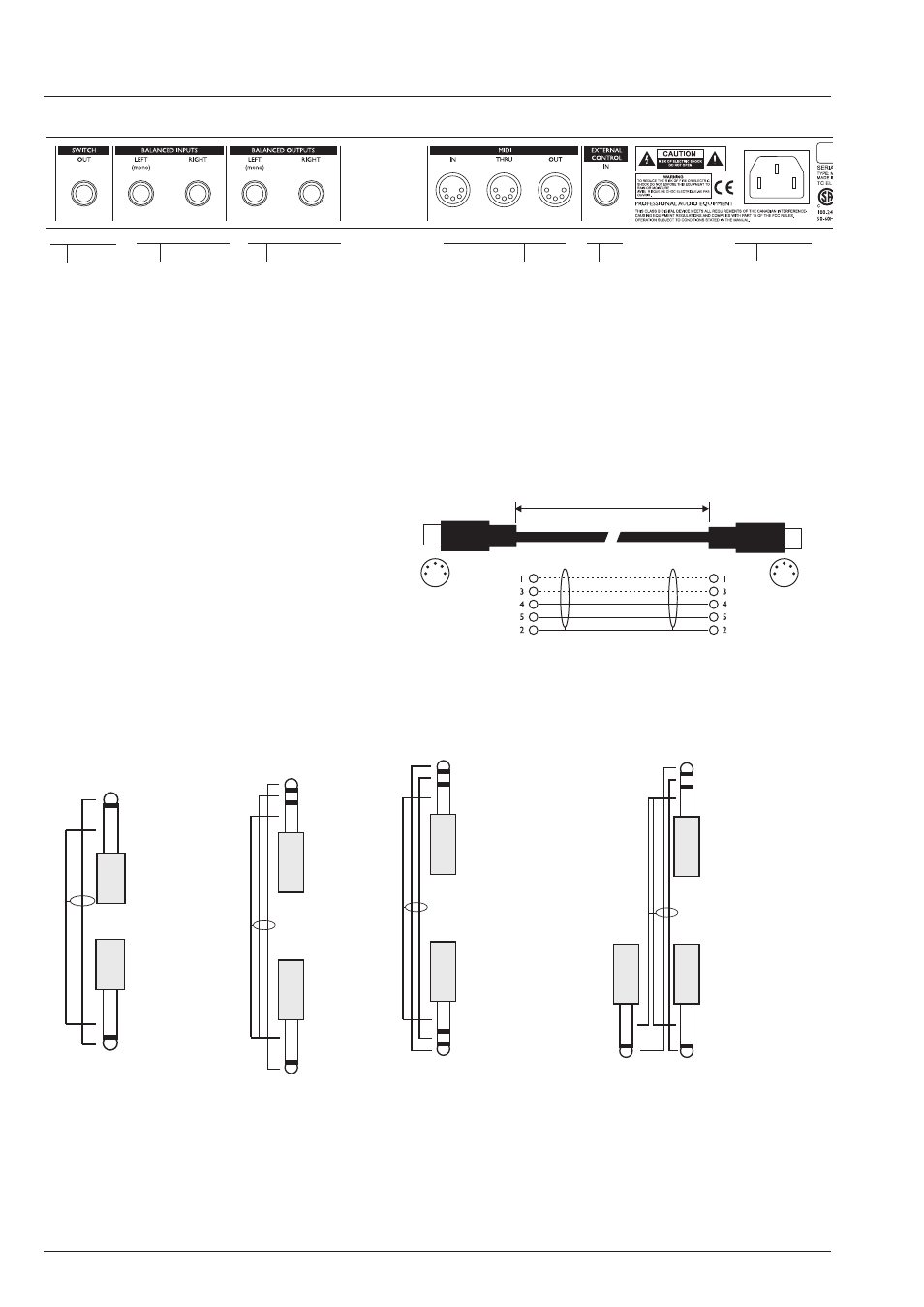

REAR PANEL
Balanced
Jack
Analog
inputs
Balanced
Jack
Analog
outputs
External
Control
MIDI
In, Out, Thru
Switch
Out
Relay
Jack
Power
input
100 to 240V
Relay Jack Cable
– Y-Splitter Type
Jack Cable
Stereo to Mono
Jack Cable
Mono to Mono
TIP
RING
GND
GND
TIP
GND
TIP
MIDI Cable
DIN CONNECTOR
5POLE – MALE
45 degrees
DIN CONNECTOR
5POLE – MALE
45 degrees
max. 10m
SHIELDED CABLE (3 or 5 wires + screen)
Balanced vs. regular Audio Cables
The analog input and output connectors
on G-Major 2 are balanced ¼" jacks. To
achieve the best possible connection to
balanced equipment, use balanced cables.
However, most guitar equipment is NOT
balanced, and you will generally have no
problems when using standard mono-to-
mono cables as illustrated below.
TIP
RING
GND
GND
TIP
GND
TIP
TIP
GND
TIP
RING
GND
GND
RING
TIP
Relay Jack Cable
– Stereo Jack Type
