7 Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)
RF-TVMLPT03V2 TV Wall Mount

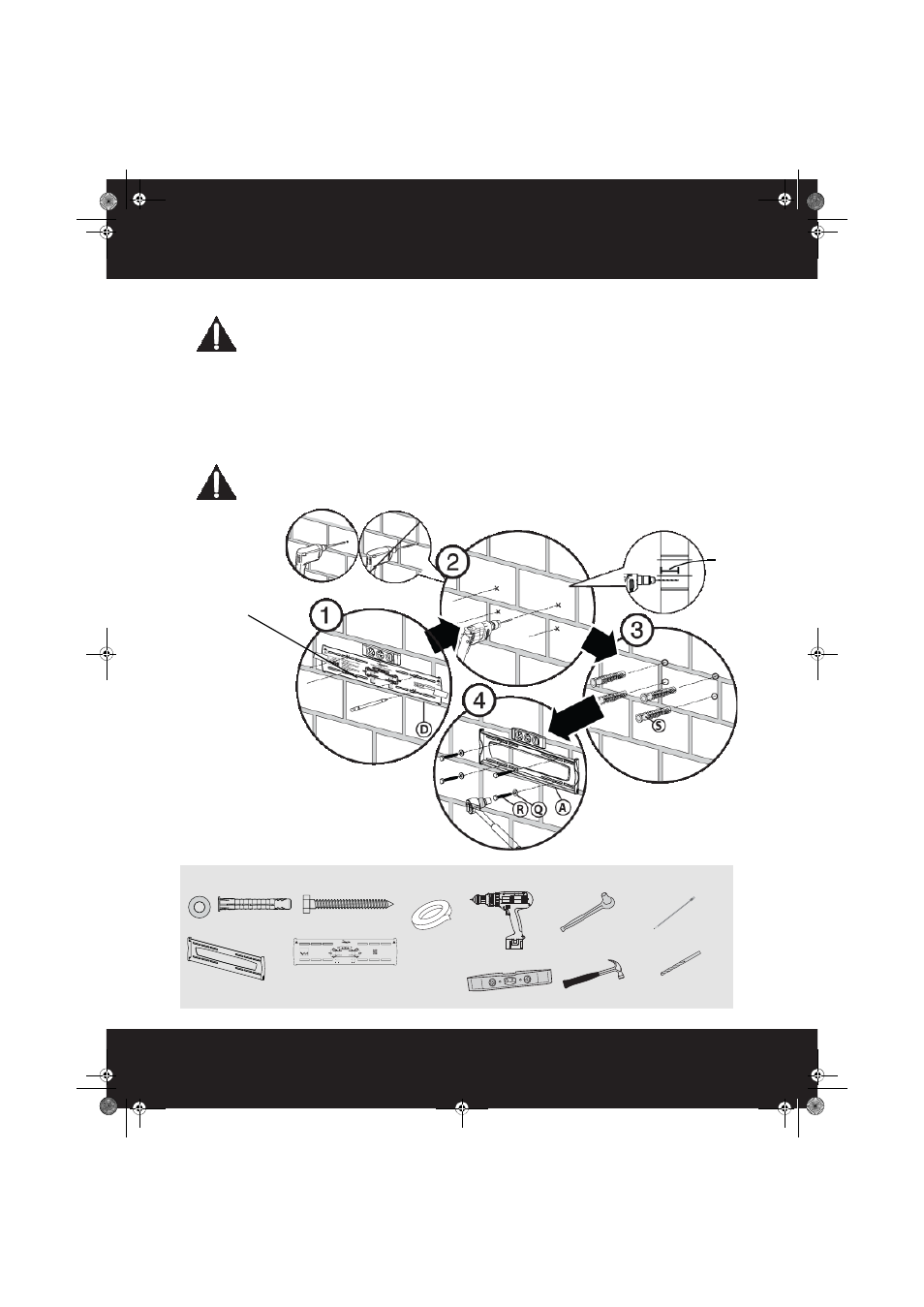

STEP 2 - Option 2: Installing on a solid concrete or concrete block wall
CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount
wall plate directly onto the concrete surface.
1 Align the wall plate template (D) at the height you determined in the previous step and make sure that it is
level. Tape the wall plate template to the wall, then use a pencil to mark the lag bolt hole locations (4).
Remove the wall plate template.
2 Drill pilot holes to a depth of 3 in. (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.
3 Insert the concrete wall anchors (R) into the pilot holes and use a hammer to make sure the anchors are flush
with the concrete surface.
4 Align the wall plate (A) with the anchors, insert the lag bolts (R) through the lag washers (Q) and the holes in
the wall plate, then tighten the lag bolts only until they are firm against the wall plate.
CAUTION: Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (R).
You’ll need
Center pencil mark
made in Step 1.
3 in.
(75 mm)
Note: Minumum solid concrete
thickness: 8 in (203 mm). Minimum
concrete block size: 8 x 8 x 16 in. (203 x
203 x 406 mm).
Note: The minumum distance between
the top two fastiners cannot be less than
16 in. (406 mm).
Q (4)
R (4)
Pencil
Drill
3/8" masonry
drill bit
1/2" socket
wrench
Level
Tape
S (4)
(D) Template
Top Dessus Parte superior Top Dessus Parte superior RF-TVMLPT03V2 Template • Gabarit • Plantilla Note: For wood frame installations, use a stud finder to
locate wood studs first. Remarque : Pour une construction à ossature de bois,
localiser d'abord les montants en bois, à l'aide d'un
détecteur de montants.
Nota: para la instalación en construcciones de armazón
de madera, primero debe localizar las vigas de madera
con un localizador de vigas.
Need help deciding how high to mount your TV? Scan this QR code. Besoin d'aide pour déterminer la hauteur de montage du téléviseur?
Numériser ce code QR. ¿Necesita ayuda para determinar la altura de montaje de su televisor?
Escanee este código QR.
V2 13-0197
Tools Needed Outils nécessaires Herramientas requeridas
(A) Wall plate
Hammer
