RF-TVMFM03V2 TV Wall Mount

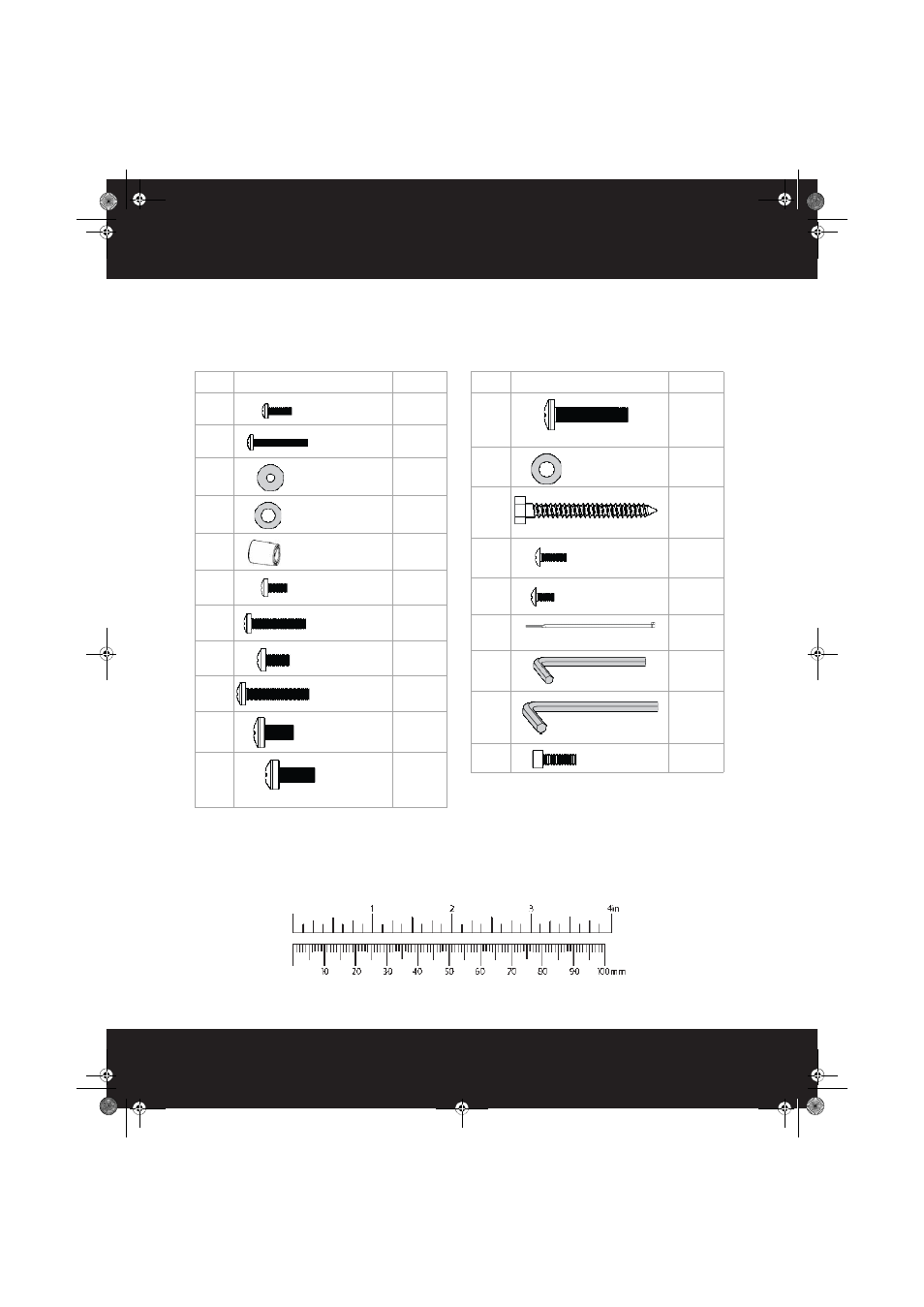

Package contents: hardware
Make sure that you have all the hardware necessary to assemble your new TV wall mount:
TV Hardware Bag
Label Hardware Qty.
H 4
I 4
J 4
K 4
L 4
M 4
N 4
O 4
P 4
Q 4
R 4
M4 × 12 mm
screw
M4 × 35 mm
screw
M4/M5 washer
M6/M8 washers
Universal spacers
M5 × 12 mm
screw
M5 × 35 mm
screw
M6 × 12 mm
screw
M6 × 35 mm
screw
M8 × 16 mm
screw
M8 × 20 mm screw
Label Hardware Qty.
S 4
T 4
U 4
V 4
W 1
X 5
Y 1
Z 1
Zz 2
M8 × 35 mm screw
Lag bolt washer
5/16" × 2 3/4" lag bolt
8-32 x 9/16"
Phillips head
screw
8-32 x 3/8"
Phillips head screw
Cable ties (8"/20.5 cm nylon)
5/32" hex key
3/16" hex key
Cap screw
