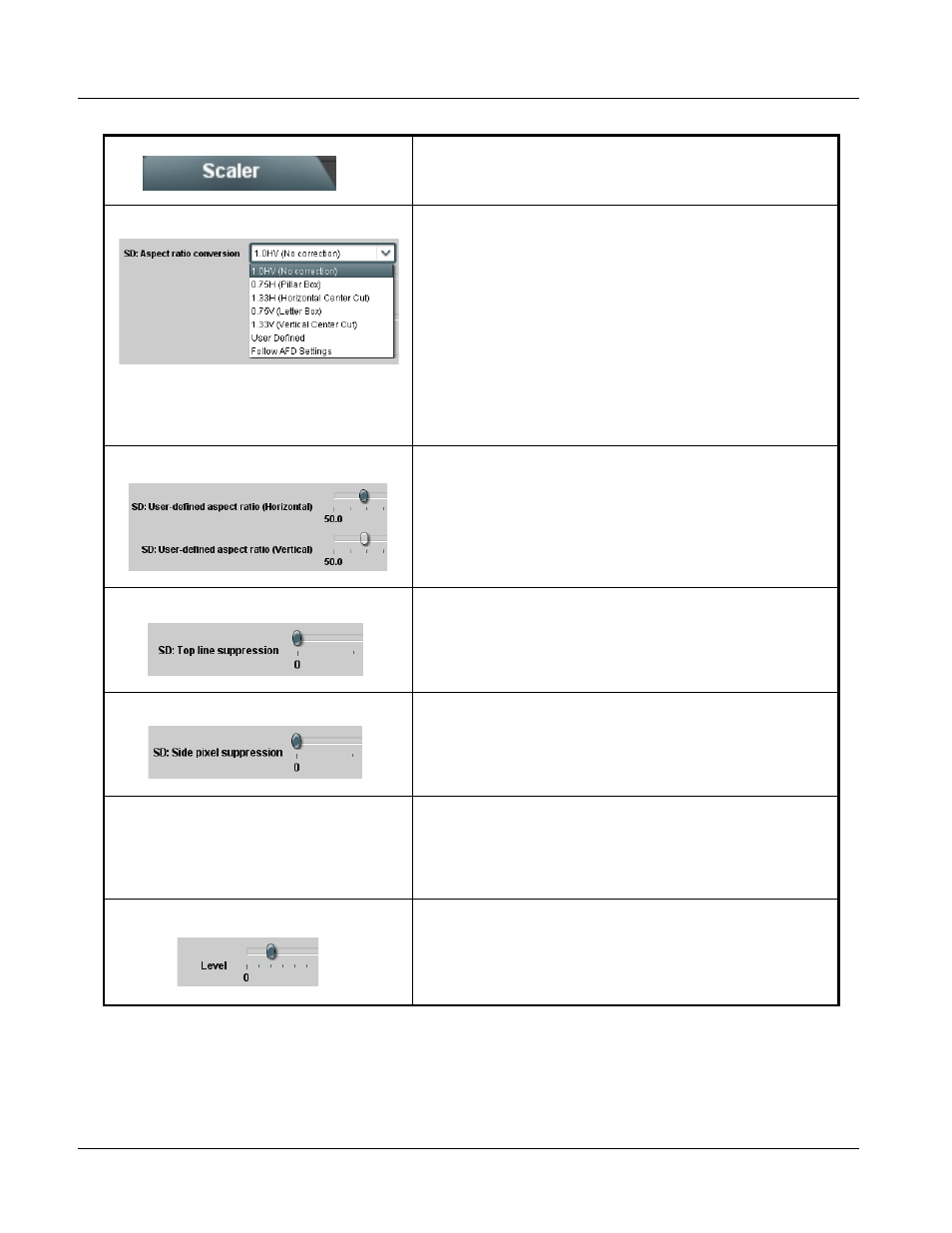

9066 Function Submenu List and Descriptions
3-16
9066 PRODUCT MANUAL
9066-OM (V4.5)
(continued)
• SD: Aspect Ratio Conversion
Selects between the standard preset Aspect Ratio Conversions (ARC)
shown here, as well as User Defined and Follow AFD Settings.
• User Defined settings allow custom user-defined H and V aspect
ratio control.
• Follow AFD Settings sets the output aspect ratio to track with AFD
settings performed in AFD (p. 3-18).
Note: This function is intended for aspect ratio adjustment of a particular
signal without AFD considerations.
• If ARC is being used on a case-by-case basis for a particular
signal, it is easier to use the Scaler ARC tools described here.
• If AFD is to be used to set and apply a standard AFD code label
for ARC, use Follow AFD Settings. Do not perform ARC here;
instead, perform ARC as described in the AFD function
description on page 3-18.
• SD: User-defined aspect ratio
(Horizontal) and (Vertical) controls adjust horizontal and vertical zoom
percentage. Settings less than (<) 100% provide zoom-out; settings
greater than (>) 100% provide zoom-in.
(50% to 200% range in 0.1% steps; null = 100.0)
• SD: Top line suppression
Selects the number of lines suppressed at the beginning of video. In this
manner, the image is scaled proportionally to replace the top few lines
suppressed using this control. When upconverting from SD to HD, using
this control can hide unwanted closed caption or timecode data.
(Range is 0 thru 10 lines.)
• SD: Side pixel suppression
Selects the number of pixels at the left and right horizontal margins within
the SAV and EAV portions of each line.
(Range is 0 thru 20 pixels.)
• Detail Enhancement Controls
Sharpness Level, Threshold, and Noise Reduction controls (individually
described below) which can be used to tailor output video sharpness per
program material and aesthetic preferences.
Note: Detail Enhancement Controls apply to both SD and HD
conversions.
• Sharpness Level Control
Adjusts the aggressiveness of sharpening applied to MPEG video.
Optimum setting results in overall perception of increased sharpness,
while avoiding pattern noise artifacts.
(Range is 0 thru 255)
Table 3-2
9066 Function Submenu List — continued
