2

Installing a Rear I/O Module

2-6

9066 PRODUCT MANUAL

9066-OM (V4.5)

9066 Rear I/O Modules

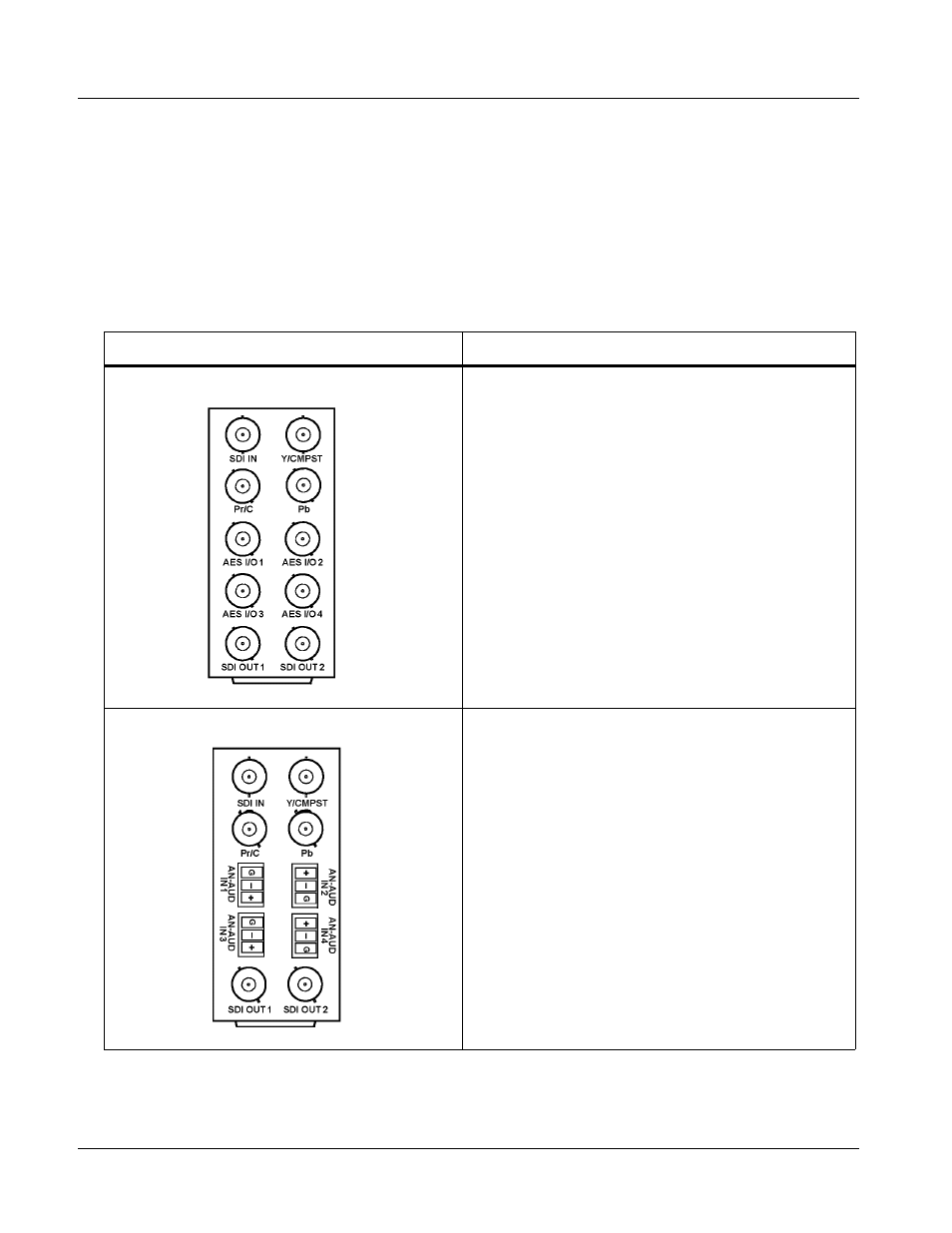

Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9066.

Note:

Rear I/O Modules equipped with 3-wire Phoenix connectors are supplied with
removable screw terminal block adapters. For clarity, the adapters are omit-
ted in the drawings below.

Table 2-1

9066 Rear I/O Modules

9066 Rear I/O Module

Description

RM20-9066-A

Provides the following connections:

• SD-SDI coaxial input (SDI IN)

• Analog Y/composite, Pr/C, and Pb coaxial inputs

(Y/Cmpst, Pr/C, and Pb, respectively)

• Four AES I/O coaxial input/outputs (AES I/O 1 thru

AES I/O 4; I/O function of each connection is
user-configurable)

• Two buffered SDI coaxial outputs (SDI OUT)

RM20-9066-B

Provides the following connections:

• SD-SDI coaxial input (SDI IN)

• Analog Y/composite, Pr/C, and Pb coaxial inputs

(Y/Cmpst, Pr/C, and Pb, respectively)

• Four analog balanced audio inputs (AN-AUD IN 1

thru AN-AUD IN 4)

• Two buffered SDI coaxial outputs (SDI OUT)
