9391-TCB-OM (V1.3) 9391-TCB PRODUCT MANUAL 3-17
Operating Instructions
9391 Function Submenu List and Descriptions

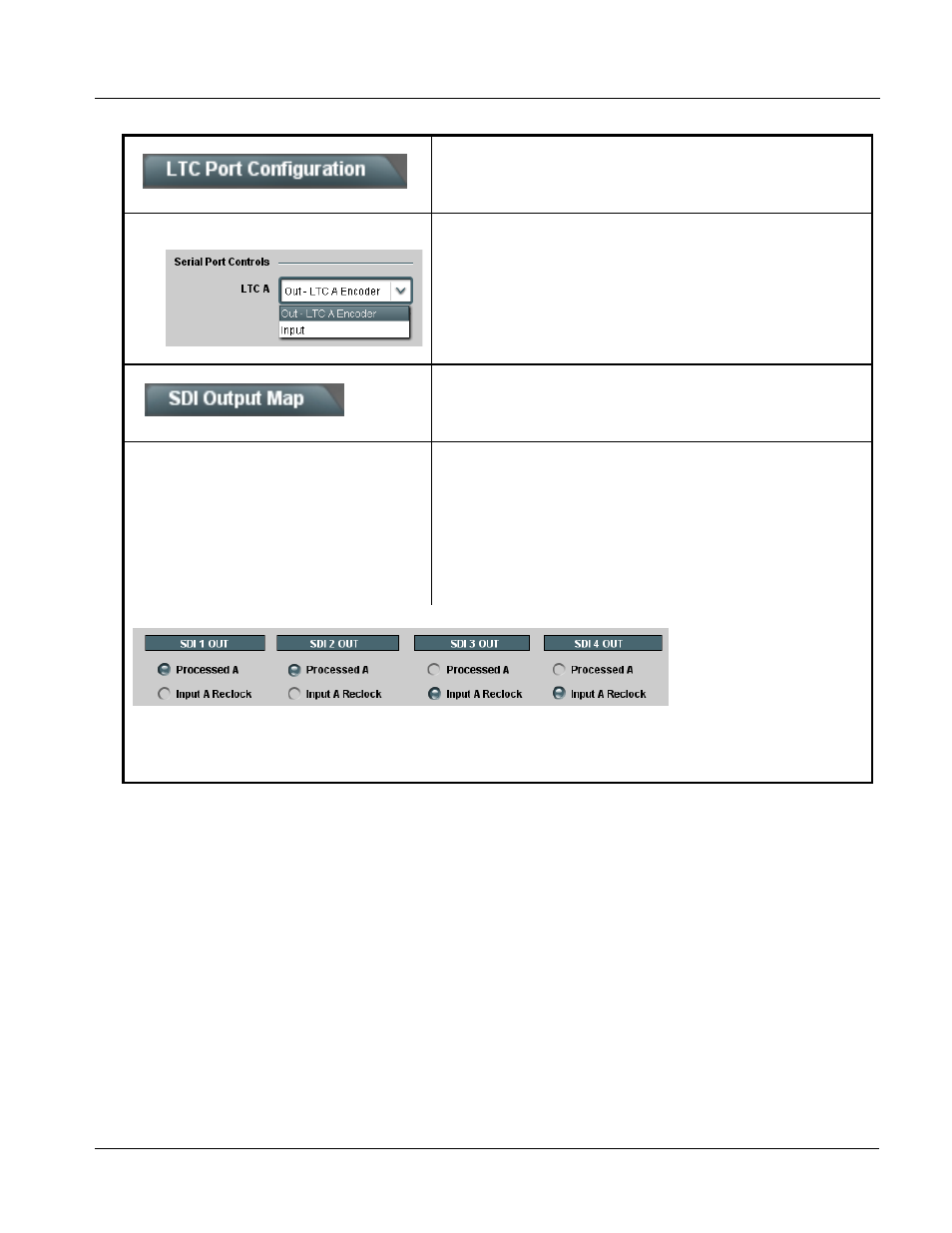

LTC Port Configuration Controls
Provides controls for setting RS-485 ports for LTC in or
out functions.
• LTC Port Direction Control Sets RS-485 LTC port function to either receive LTC over the port (Input), or
send RS-485 LTC over the port (Out).
SDI Output Map Control
Provides a 2 x 4 output video crosspoint between the
processed video path / reclocked SDI IN A input to up to
four SDI output ports.
• Output Video Crosspoint As shown below, each independent card SDI output SDI 1 OUT thru
SDI 4 OUT can receive as sources:
• Processed A (video path A with processing as described in Video Path
Controls (p. 3-9).
• Input A Reclock
Note: • Crosspoint is fully flexible, with duplicated choices (DA function)
across several outputs from the same or different sources.
• “Processed B” selection is not valid for this card model; do not use
this selection.
Table 3-1 9391 Function Submenu List — continued
In this example:
• Processed A (video path from input SDI In A) is DA’ed to outputs SDI 1 Out and SDI 2 Out.
• Input A Reclock is DA’d to outputs SDI 3 Out and SDI 4 Out.
