9391-TCB-OM (V1.3) 9391-TCB PRODUCT MANUAL 3-11
Operating Instructions
9391 Function Submenu List and Descriptions
Provides timecode data extraction from various sources,
and provides formatting and re-insertion controls for
inserting the timecode into the output video and burn-in.
Table 3-1 9391 Function Submenu List — continued
SDI VITC
Detect/Extract
SDI ATC_LTC
Detect/Extract
SDI ATC_VITC
Detect/Extract
Priority/
Select
525i SDI
w/ VITC
Waveform
SDI VITC
Timecode
Proc/Embed
ATC_VITC
Timecode
Proc/Embed
ATC_LTC
Timecode
Proc/Embed
525i SDI
w/ATC_VITC
Insert
Control
Line
Number
Control
Buffer/
Format
ATC_VITC Insertion = Enabled
ATC_VITC = Line 13 (default SMPTE 12M-2)
Noting that the incoming video contains VITC
waveform timecode data (as shown in the status
display), set the Source Priority drop-down lists to
include VITC Waveform timecode data (SDI VITC) as
a choice. This extracts VITC Waveform timecode
data from the incoming video.
In this example, it is desired to provide SD ATC_VITC
timecode data in the output video. As such, set
SD ATC VITC Insertion to Enabled.
In the example here, the line numbers are set to the
default SMPTE 12M-2-2008 recommended value.
A
B
A
A
B
Reference VITC
Detect/Extract
Free Run
(Internal Count)

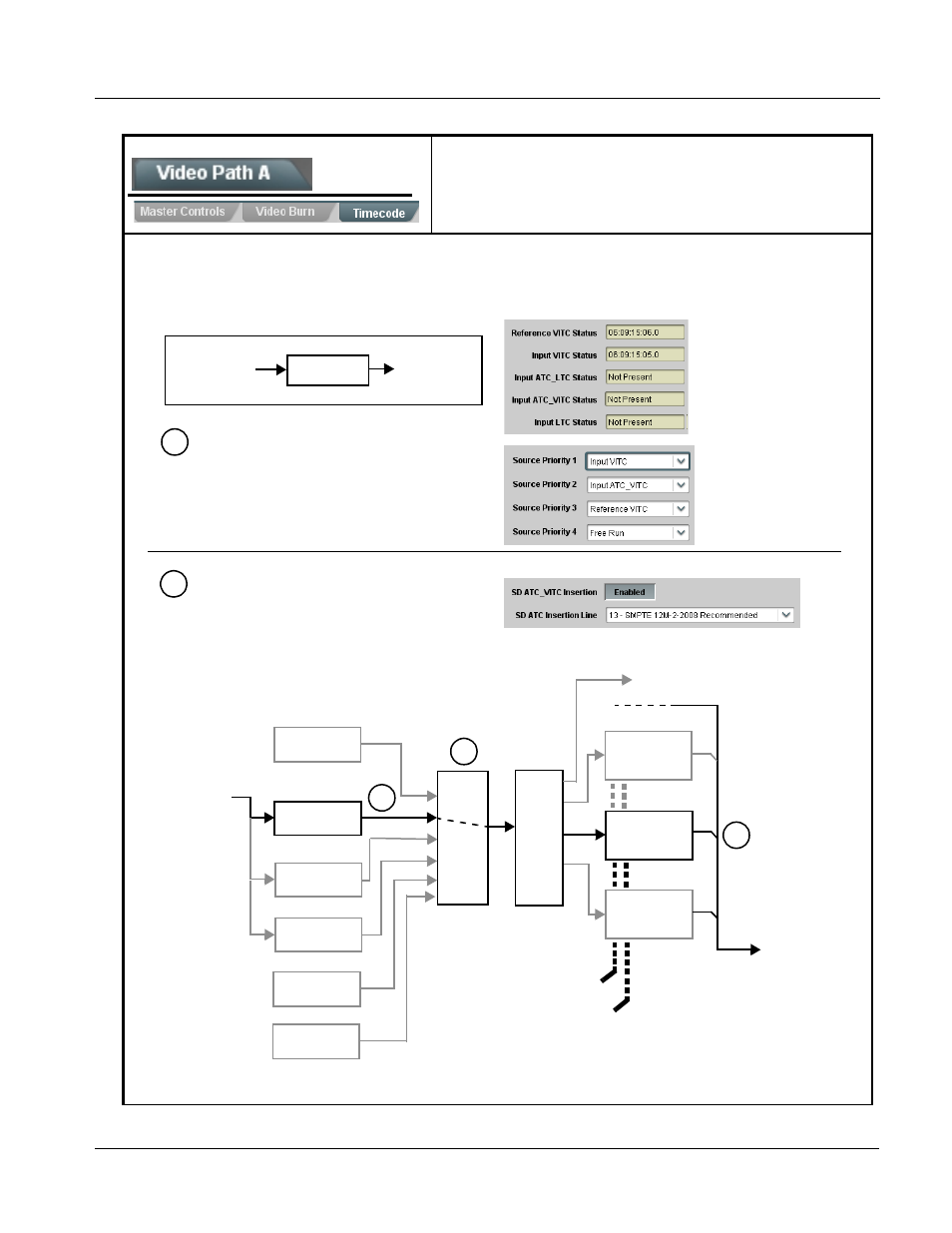

Shown below is an example in which received SDI video with SDI VITC waveform timecode is to be converted to SDI
ATC_VITC timecode data. Each Timecode control is fully described on the pages that follow. Timecode settings performed
here output selected timecode on output video and timecode burn-in.
9391
525i 5994
w/ VITC
Waveform
525i 5994
w/ ATC_VITC
RS-485 LTC
Detect/Insert
RS-485 LTC
