9034 Function Submenu List and Descriptions
3-34 9034 PRODUCT MANUAL 9034-OM (V4.1)
Dolby E Metadata
(9034-DEC only) Displays the status and programming
details for each Dolby
® E AC-3 program dictated by the
received external metadata.
Note: • This display is read-only. No changes can be made to the settings. All displays are reports per the received metadata.
• Information provided here is intended as an overview of the screen. Displayed parameters are per ATSC A/52B definitions.
Refer to ATSC A/52B for detailed descriptions and background.
Table 3-2 9034 Function Submenu List — continued
•
•
•

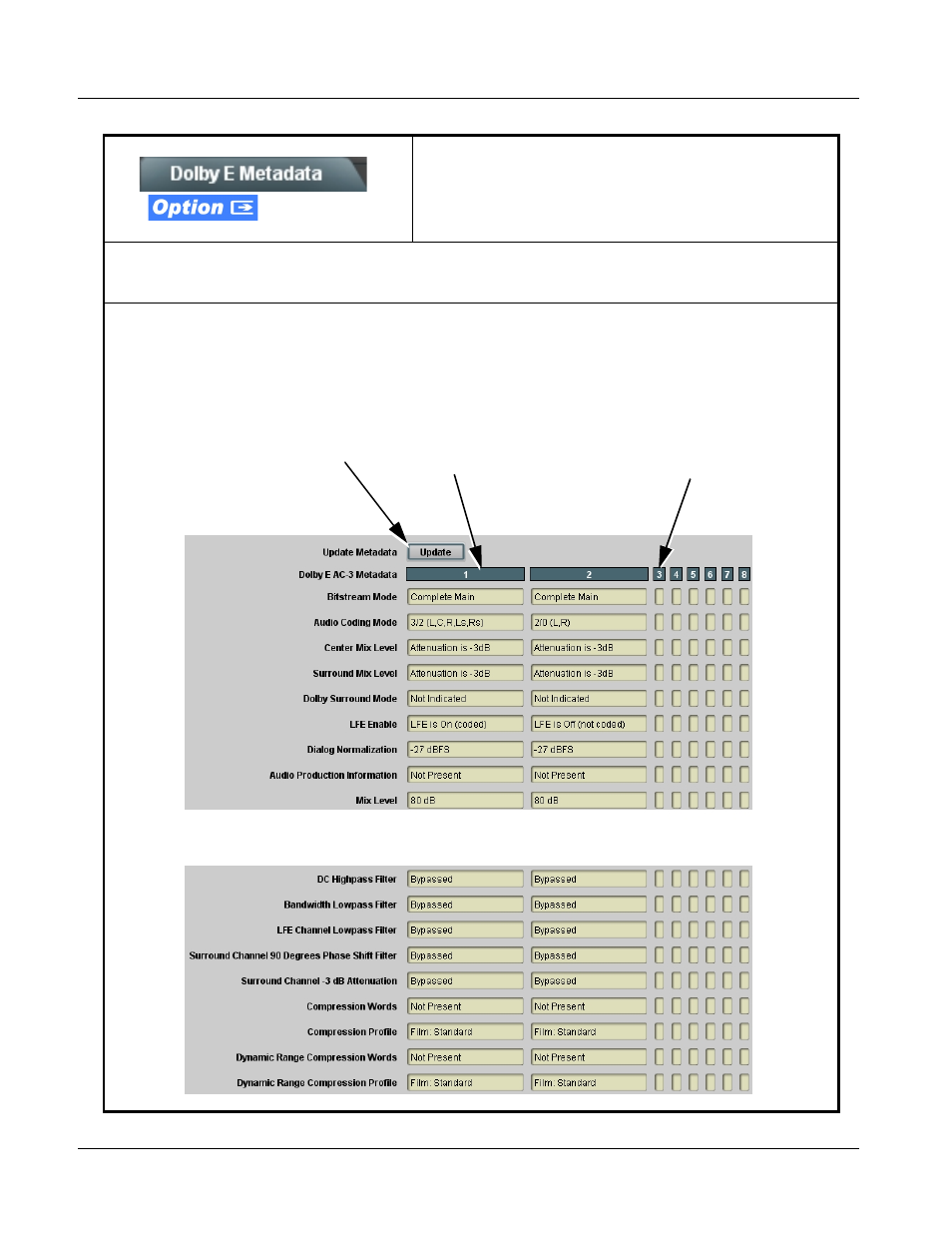

Where AC-3 programs exist for the
current metadata coding, the columns
show the details for the individual
AC-3 programs Where AC-3 programs do not
exist for the current metadata
coding, the columns are
collapsed
Updates the external metadata status and
program configuration display screen. The
display always shows the last initiated
metadata transaction; to refresh screen for
any changes, click Update.
Note: Metadata does not continuously report.
Use this button to report new metadata. When
clicked, the button stays in the “depressed”
position while updating. When the button
displays the “out” position, update is complete
and all displays are current.
