9086 Function Submenu List and Descriptions
3-22
9086-SD PRODUCT MANUAL
9086-OM (V4.3)

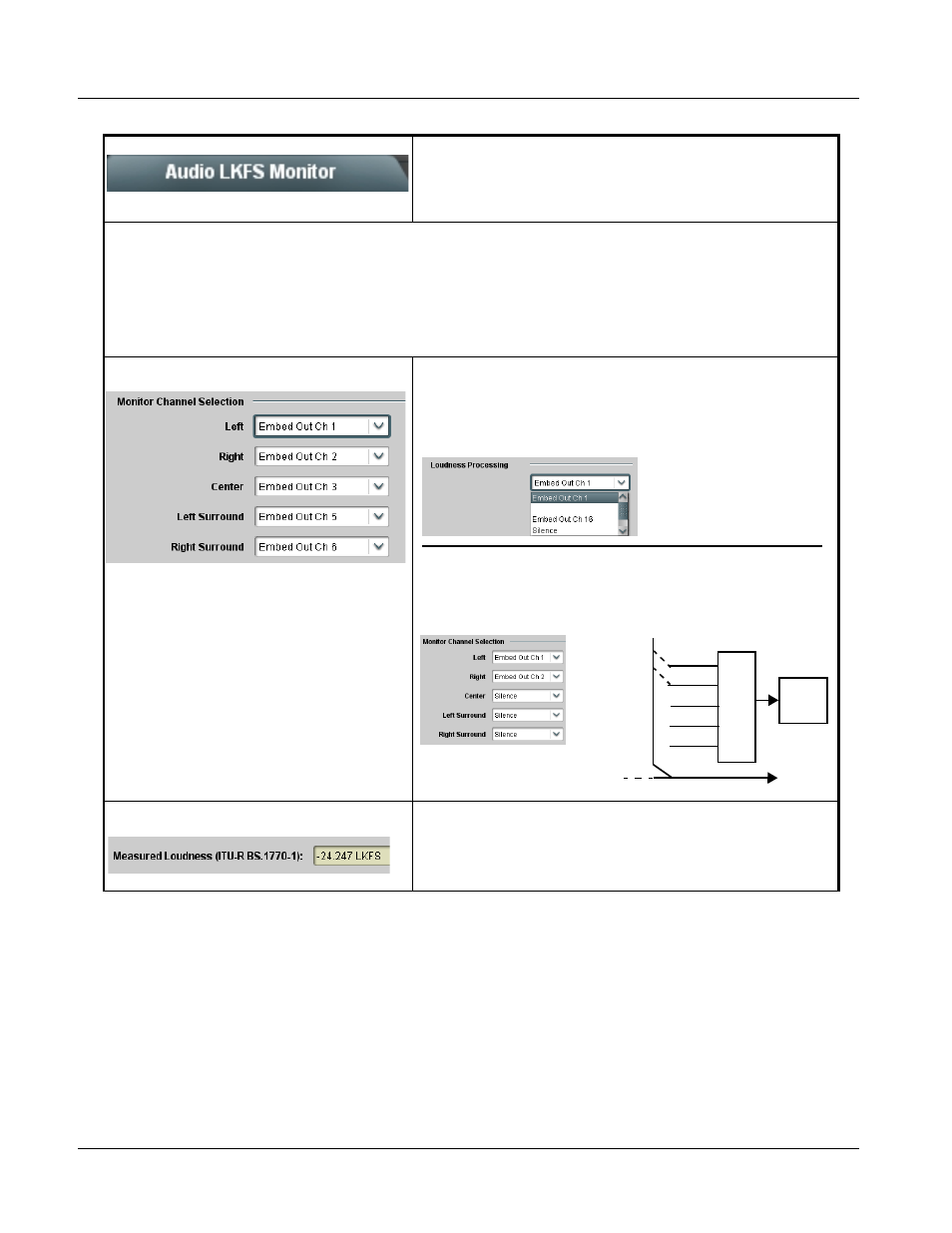

Audio LKFS Monitor
Provides an ITU-R BS.1770-1 / ATSC A/85 Audio
Loudness (LKFS) measurement of selected channels.
Note: • See Appendix A, “Loudness Measurement Guidelines and Techniques” for more information about LKFS
parameters and measurement techniques. Read and understand the information in this appendix before
changing LKFS parameters from default values.
• This function provides DashBoard loudness metering and is furnished standard with this option. OGCP-9000
Loudness Meter Option (+LM) is an OGCP-9000 Control Panel option that provides advanced loudness metering
functions such as graphing and statistics in conjunction with an OGCP-9000 or WinOGCP Remote Control Panel.
+LM option is separate and independent of this function; refer to catalog or website for more information.
• Monitor Channel Selection
Separate drop-down lists for Left, Right, Center, Left Surround (Ls),
and Right Surround (Rs) for applying any combination of card audio
outputs to each of the five LKFS monitor inputs as shown below.
Note: Set any unused LKFS monitor channel inputs to Silence. For stereo
LKFS monitoring, use the Left and Right channels and set the other inputs
to Silence.
The example below shows selection from various channel sources
applied to the LKFS monitor inputs. Because the LKFS monitor uses
output (post-processed “destination”) channels, LKFS values displayed
can be post-loudness processed values.
• Measured Loudness Display
Displays the current aggregate ITU-R BS.1770-1 LKFS loudness for the
selected monitored channels.
Note: -inf LKFS display indicates LKFS monitor is not receiving any
input.
Table 3-2
9086 Function Submenu List — continued
•
•
•
Emb Ch 1
Emb Ch 2
Silence
Silence
Silence
L
R
(C)
(Ls)
(Rs)
LKFS
Monitor
LKFS
Value
Display
Emb Ch 1 Out
Emb Ch 2 Out
