Setting Up 9086 Network Remote Control
2-6
9086-SD PRODUCT MANUAL
9086-OM (V4.3)
Setting Up 9086 Network Remote Control
Perform remote control setup in accordance with Cobalt
®
reference guide
“Remote Control User Guide (PN 9000RCS-RM)”.
Note:
• If network remote control is to be used for the frame and the frame has not
yet been set up for remote control, Cobalt
®
reference guide Remote
Control User Guide (PN 9000RCS-RM) provides thorough information and
step-by-step instructions for setting up network remote control of
COMPASS™ cards using DashBoard™. (Cobalt
®
OGCP-9000 and
OGCP-9000/CC Remote Control Panel product manuals have complete
instructions for setting up remote control using a Remote Control Panel.)
Download a copy of this guide by clicking on the
Support>Documents>Reference Guides
and then select DashBoard Remote Control Setup Guide as a download, or
contact Cobalt
®
as listed in Contact Cobalt Digital Inc. (p. 1-18).
• If installing a card in a frame already equipped for, and connected to
DashBoard™, no network setup is required for the card. The card will be dis-
covered by DashBoard™ and be ready for use.

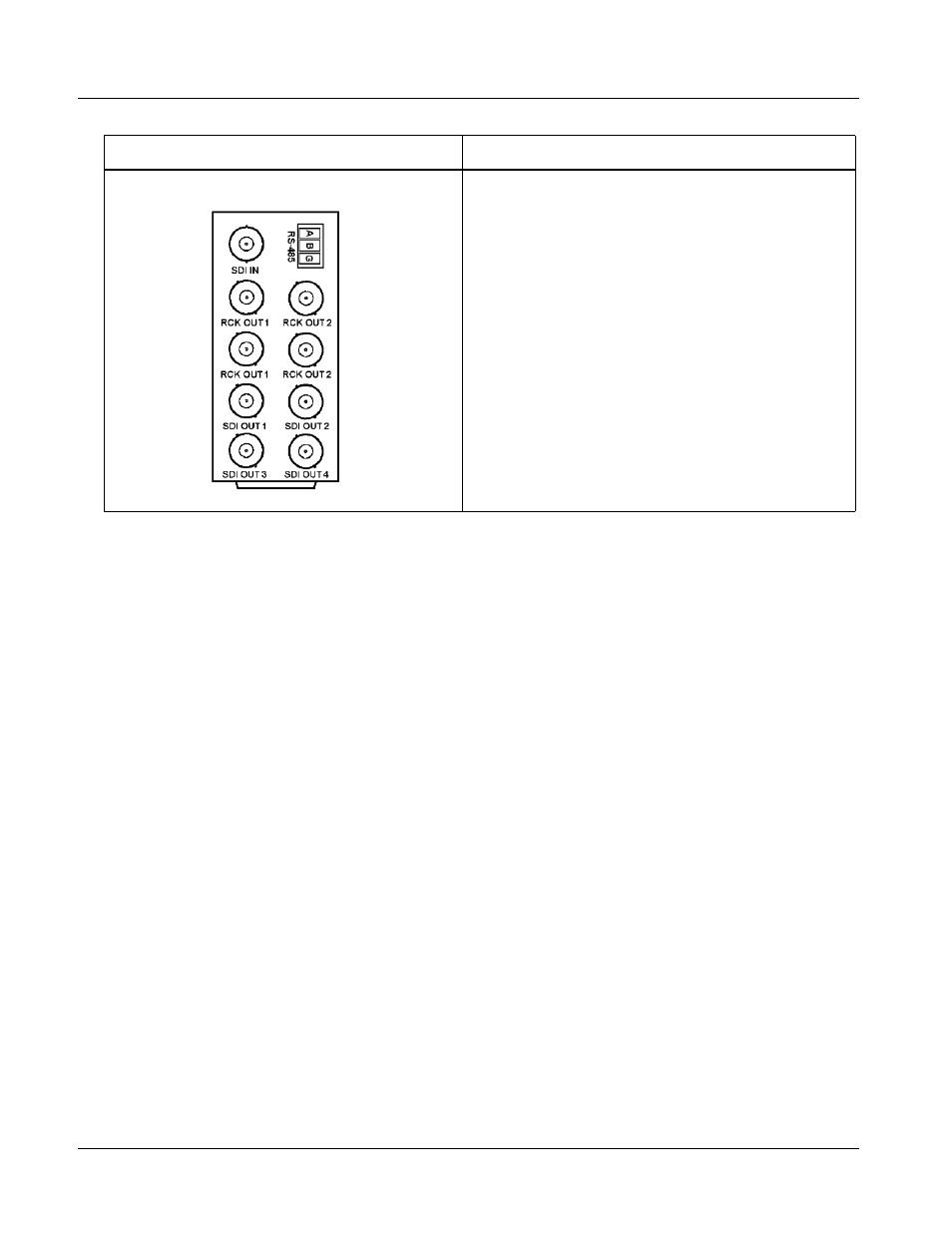

RM-9086-B
Provides the following connections:
• SDI coaxial input (SDI IN)
• Four SDI reclocked input copies (RCK OUT)
• Four buffered SDI coaxial outputs (SDI OUT)
• Four buffered SDI coaxial outputs (SDI OUT)
Note: On card with +LTC option, this connector
provides RS-485 LTC I/O as well as Dolby
metadata port (selectable using card control).
Table 2-1
9086 Rear I/O Modules — continued
9086 Rear I/O Module
Description
