9086 Function Submenu List and Descriptions
3-16 9086-SD PRODUCT MANUAL 9086-OM (V4.3)
(continued)

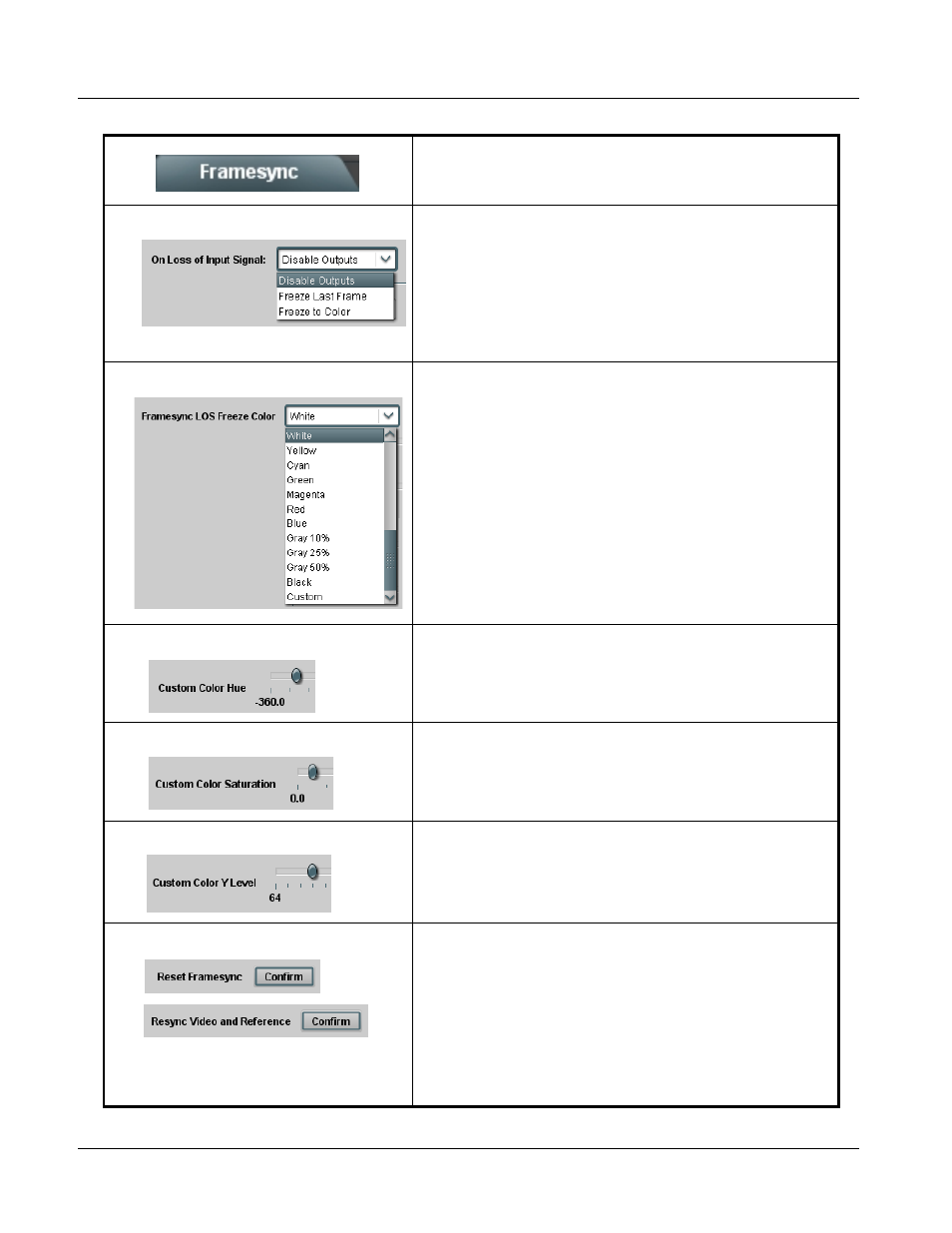

• Loss of Input Signal Selection In the event of input video Loss of Signal (LOS), determines action to be
taken as follows:
• Disable Outputs: Disable all outputs.
• Freeze Last Frame: Freeze image to last good frame (last frame
having valid SAV and EAV codes).
• Freeze to Color: Freeze image to a color raster (as selected using
Framesync LOS Freeze Color control).
Note: Freeze Last Frame and Freeze to Color choices are functional only
when frame sync is set to lock to valid reference.
• Framesync LOS Freeze Color In the event of LOS with Freeze to Color enabled above, sets the image
raster color from choices shown to the left.
• Custom Color Hue Adjusts raster hue (phase angle) for custom LOS color.
(-360° to 360° range in 0.1° steps; null = 0°)
• Custom Color Saturation Adjusts raster saturation level for custom LOS color.
(0% to 100% range in 0.1% steps)
• Custom Color Y Level Adjusts raster luma level for custom LOS color.
(64 to 940 range)
• Reset/Resync Framesync
Reset Framesync
Reset Framesync resets the frame sync, clearing any buffered audio and
video.
Resync Video and Reference resets the input processing paths for video
and reference.
When Confirm is clicked, a Confirm? pop-up appears, requesting
confirmation.
• Click Yes to reset the frame sync.
• Click No to reject reset.
Note: These controls are not normally used or required when the card is
receiving a stable, continuous frame sync reference.
Table 3-2 9086 Function Submenu List — continued
