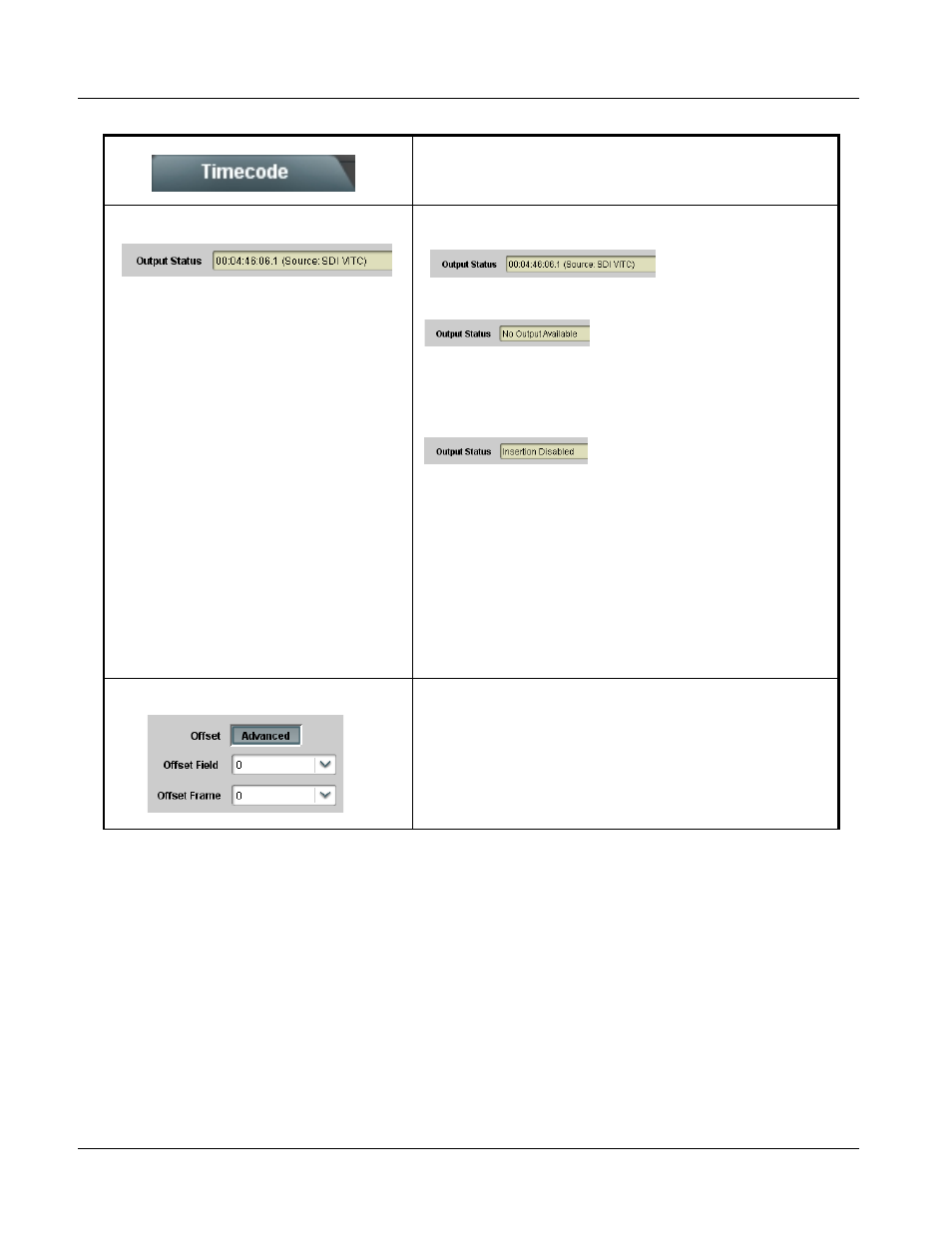

9071 Function Submenu List and Descriptions
3-12 9071 PRODUCT MANUAL 9071-OM (V4.0)
(continued)
• Output Status Display Displays the current content and source being used for the timecode data
as follows:
• Output status OK (in this example, running SDI VITC timecode received
and outputted).
• Timecode not available due to lack of appropriate input timecode data on
enabled formats.
Note: Timecode output requires that source and priority are appropriately
selected (as described above in Source Priority). Also, video input
must contain appropriate timecode data.
• Timecode Insertion button set to Disabled; output insertion disabled.
Note: • If timecode is not available from Source Priority selections
performed, timecode on output reverts to Free Run (internal
count) mode.
• Because the 1’s digit of the display Frames counter goes from 0 to
29, the fractional digit (along with the 1’s digit) indicates frame
count as follows:
0.0 Frame 0
0.1 Frame 1
1.0 Frame 2
1.1 Frame 3
•
•
•
29.1 Frame 59
• Offset Controls Allows the current timecode count to be advanced or delayed on the
output video.
• Offset Advance or Delay selects offset advance or delay.
• Offset Field delays or advances or delays timecode by one field.
• Offset Frame delays or advances or delays timecode by up to 5
frames.
Note: Default settings are null, with both controls set at zero as shown.
Table 3-2 9071 Function Submenu/Parameter List — continued
