9071-OM (V4.0) 9071 PRODUCT MANUAL 1-7
Introduction
9071 Functional Description
User Control Interface
Figure 1-3 shows the user control interface options for the 9071. These
options are individually described below.
Note: All user control interfaces described here are cross-compatible and can oper-
ate together as desired. Where applicable, any control setting change made
using a particular user interface is reflected on any other connected interface.

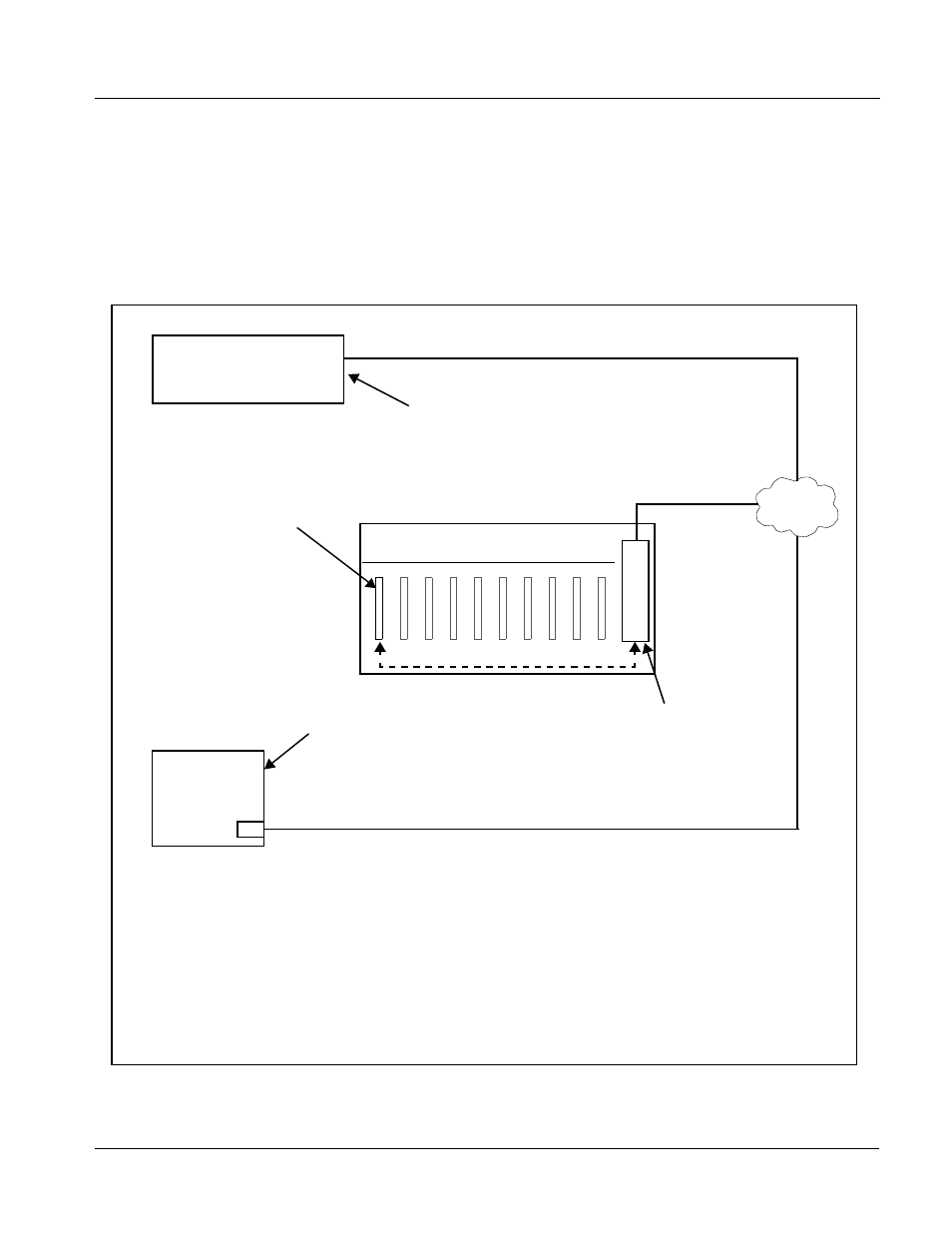

Figure 1-3 9071 User Control Interface
Computer
with NIC
OGCP-9000 Control Panel
or
OGCP-9000/CC Control Panel
20-Slot Frame with MFC-8320-N network
controller card
LAN
Card Edge Controls
9071 card can be
controlled using built-in
card edge controls
In conjunction with a frame equipped
with an MFC-8320-N network
controller card, 9071 card can be
remotely controlled over a LAN
Remote Control Panel
Using the Control Panel,
9071 card can be remotely
controlled over a LAN
DashBoard™ Remote Control
Using a computer with
DashBoard™ installed, 9071
card can be remotely controlled
over a LAN
Note: • To communicate with DashBoard™ or a Remote Control Panel, the frame must have the optional
MFC-8320-N network controller card installed.
• DashBoard™ and the Remote Control Panels provide network control of the 9071 as shown. The
value displayed at any time on the card, or via DashBoard™ or a Control Panel is the actual value
as set on the card, with the current value displayed being the actual value as effected by the card.
Parameter changes made by any of these means are universally accepted by the card (for
example, a change made using the card edge controls will change the setting displayed on
DashBoard™ and a Control Panel; a change made using DashBoard™ will similarly change the
setting displayed on a Control Panel and the card itself).
