15
INITIAL SETTINGS:
MIX 10
DELAY TIME 0.1 to 0.3
FEEDBACK 9 to10
Left Switch SHORT
Right Switch INT.LOOP
CP-251 LFO RATE 9 o'clock position (about 0.5 Hz)
CONNECTIONS:
• From CP-251 LFO square wave output jack, to MF-104Z AUDIO
IN
jack.
• From MF-104Z MIX OUT jack, to your amplifier.
NEPTUNE'S CANYON (RING
MODULATOR IN EXTERNAL LOOP;
FIGURE 7)
This setup shows how the external loop is used. The external loop
works best with processors that do not change the amplitude of the
signal, - such as a
ring modulator. By
placing a ring
modulator or pitch
shifter in the external
loop, you can create
echo streams that
change in pitch and
timbre as they evolve.
This setup uses a
moogerfooger MF-102
Ring Modulator in
the external feedback
loop. The echo
spacing is determined
by the MF-104Z TIME
control and SHORT-

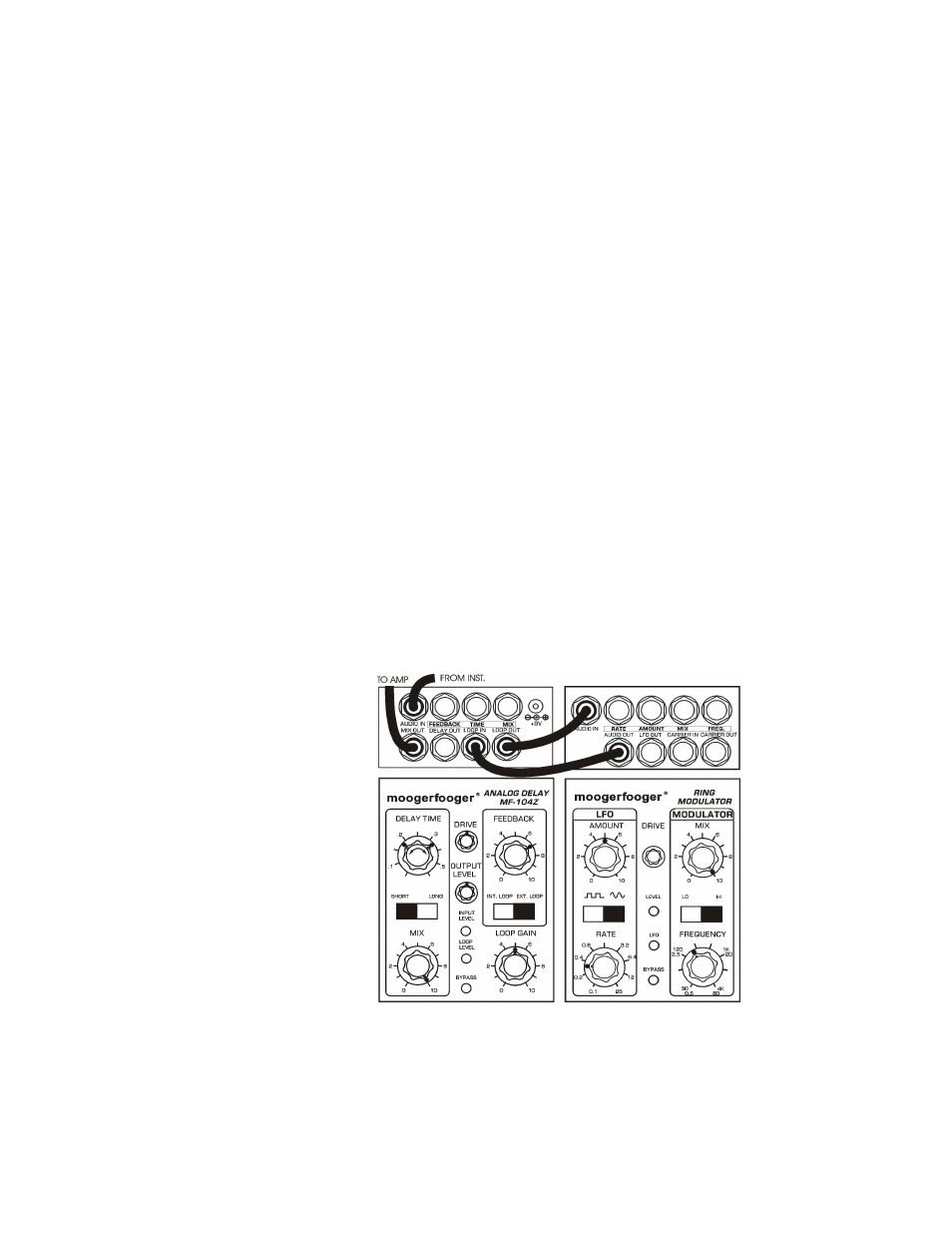

Figure 7 - Setup for NEPTUNE’s CANYON
