13
RHYTHMIC ECHOES
By setting the delay time to exactly
one beat of your music, or to an exact
whole number of beats or exact
fraction of a beat, you can build up
expressive rhythmic backgrounds that
are made up of phrases that you've
just played. Adjust the DELAY TIME
control carefully to get the exact
tempo at which you want to play.
INITIAL SETTINGS:
MIX 5
DELAY TIME between 0.4 and .8(Set
for the desired tempo.)
FEEDBACK 6
Left Switch
LONG
Right Switch INT.LOOP
ECHOES WITH
CHORUS (FIGURE 5)
By modulating the delay time with
an externally applied slow random
wave, you can impart small random
variations to the pitches and to the
echoes. Then, when you listen to the
direct sound and the delayed sound
(echoes) together, you'll hear a chorus
effect. This setup uses a moogerfooger
CP-251 Control Processor to supply
the slow random wave and to adjust
the wave's amplitude with an
attenuator.
MF-104Z SETTINGS:
MIX 5
DELAY TIME about .15
FEEDBACK 7
(
Setup continues on next page .)

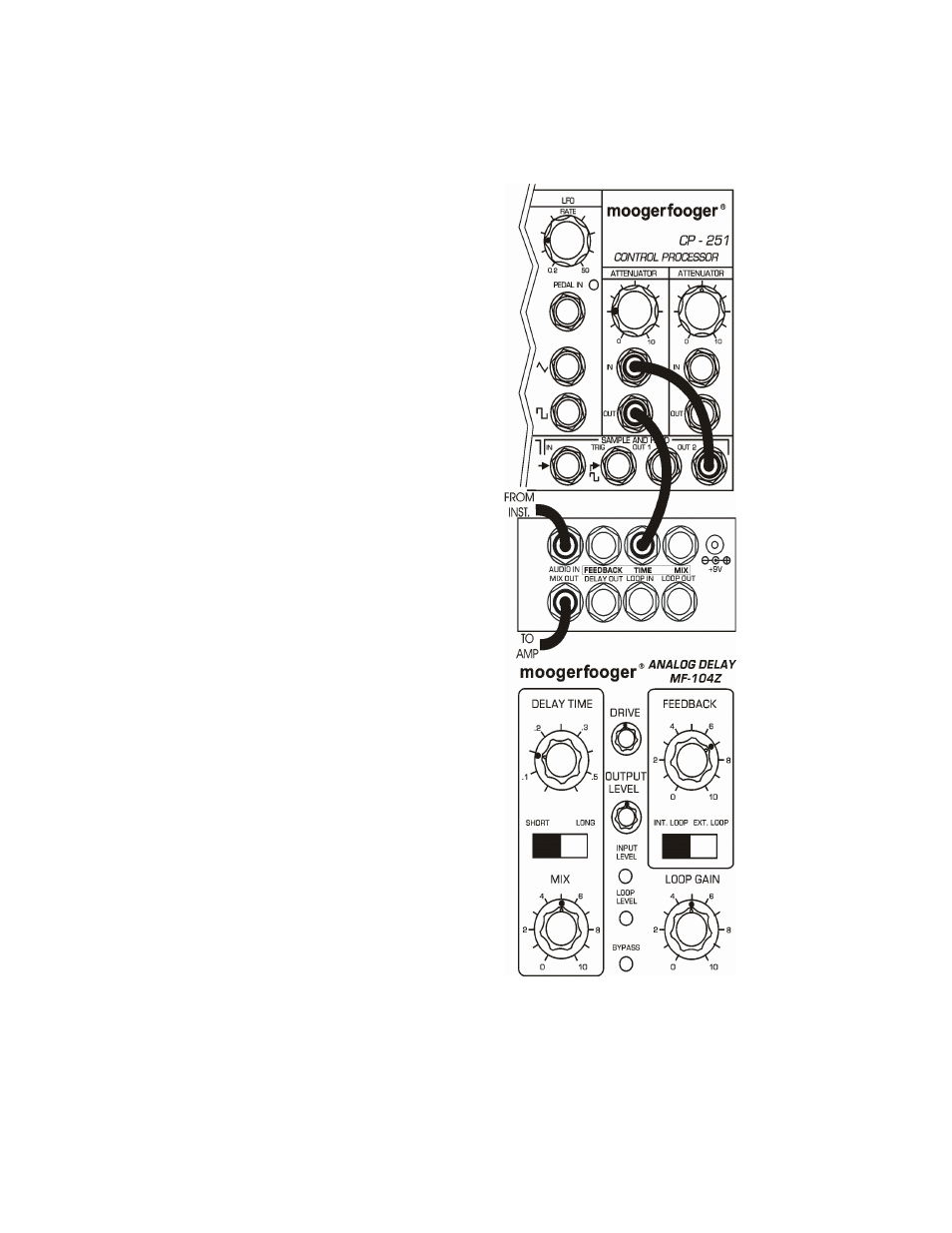

Figure 5 - Setup for ECHOES WITH
CHORUS.
