6. Layouts
PNEG-1827 36' Dura-Lok Plank and Support Manual 37
36'-26" Monorail Spacing Layout

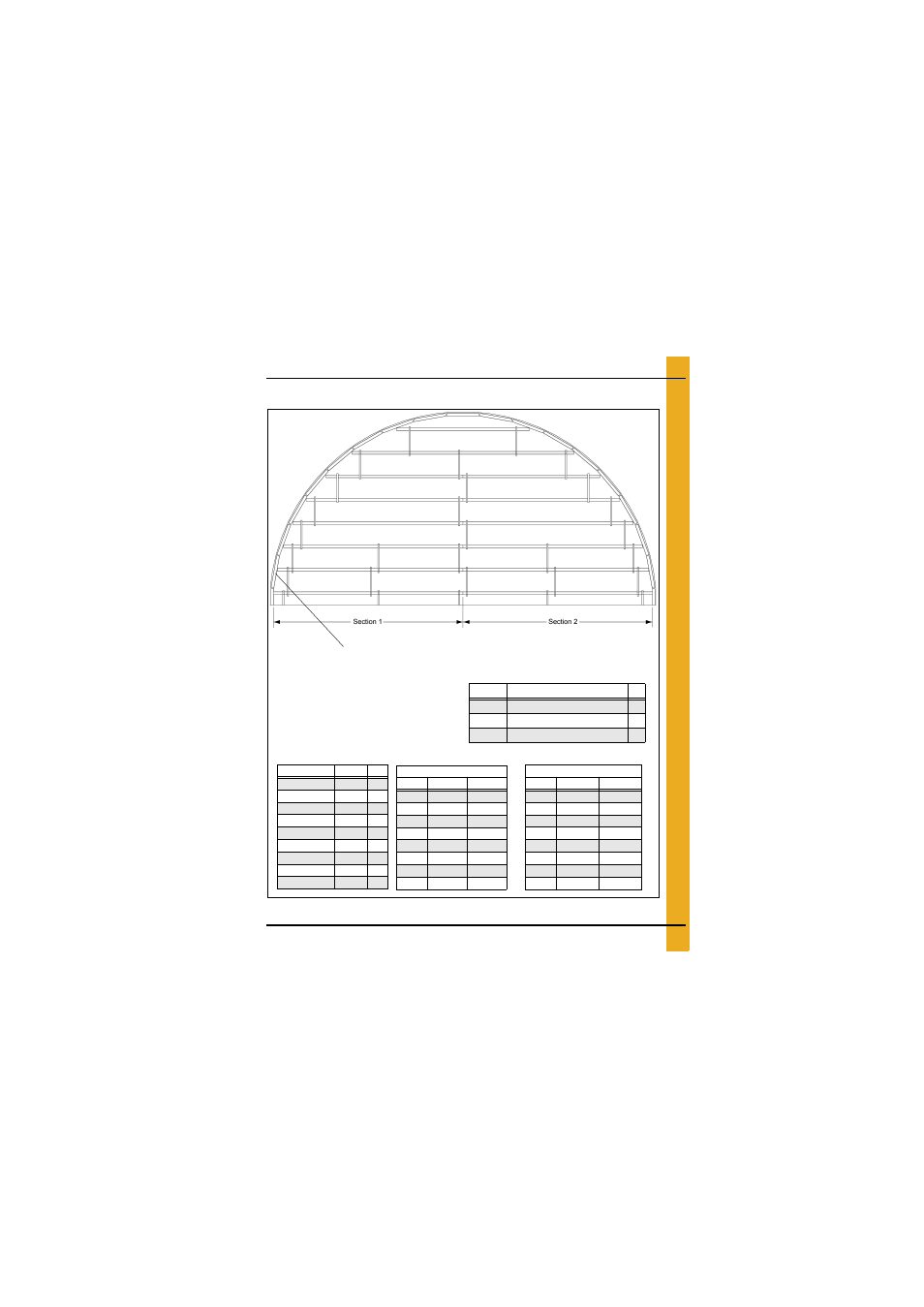

Figure 6L 36' Diameter Bin with 26" Monorail Spacing
Bill of Materials
Part # Length Qty
A-20.5MONO 246 2
A-17.5MONO 210 4
A-17.2MONO 206 4
A-16.58MONO 199 4
A-15.75MONO 189 4
A-14.5MONO 174 4
A-12.7MONO 152 4
A-12.25MONO 147 2
A-3MONO 36 50
36' Diameter 26" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 210 210
2 206 206
3 199 199
4 189 189
5 174 174
6 152 152
7 246 0
8 147 0
Part # Description Qty
FL-404-26 26" Monorail Tie Bar 60
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 240
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
NOTE: Thirty six (36) total outer perimeter 3' monorail pieces.
See
Page 17 for leg support details.
10.97 m Diameter 55.88 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 533.4 533.4
2 523.24 523.24
3 505.46 505.46
4 480.06 480.06
5 441.96 441.96
6 386.08 386.08
7 624.84 0
8 373.38 0
