6. Layouts
PNEG-1827 36' Dura-Lok Plank and Support Manual 31
36'-18" Monorail Spacing Layout

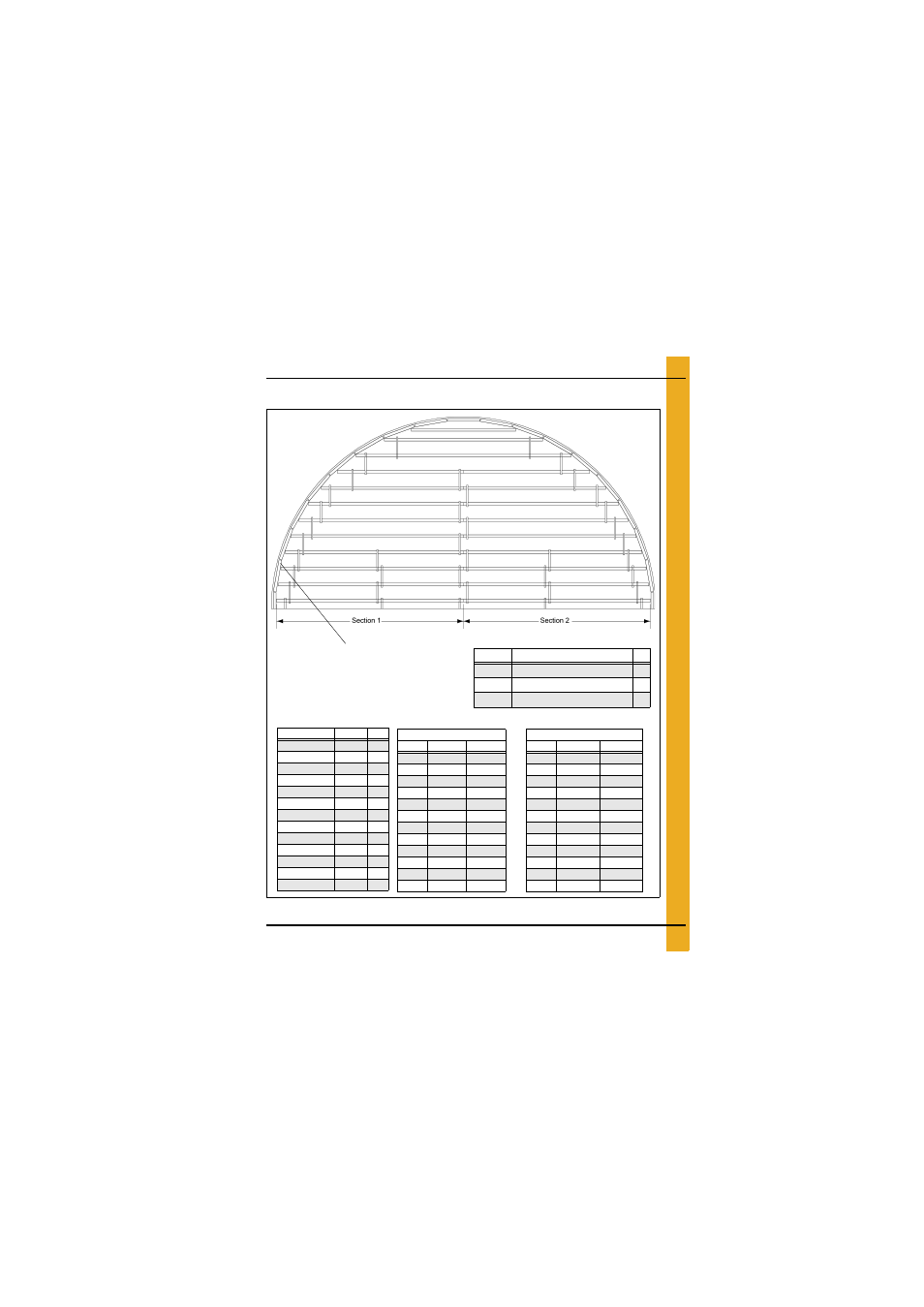

Figure 6F 36' Diameter Bin with 18" Monorail Spacing
NOTE: Thirty six (36) total outer perimeter 3' monorail pieces.
See
Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-20MONO 240 2
A-17.42MONO 209 4
A-17.25MONO 207 4
A-17MONO 204 4
A-16.58MONO 199 4
A-16.08MONO 193 4
A-15.33MONO 184 4
A-14.75MONO 177 2
A-14.42MONO 173 4
A-13.25MONO 159 4
A-11.75MONO 141 4
A-9.75MONO 117 2
A-3MONO 36 50
36' Diameter 18" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 209 209
2 207 207
3 204 204
4 199 199
5 193 193
6 184 184
7 173 173
8 159 159
9 141 141
10 240 0
11 177 0
12 117 0
Part # Description Qty
FL-404-18 18" Monorail Tie Bar 80
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 300
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.97 m Diameter 45.72 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 530.86 530.86
2 525.78 525.78
3 518.16 518.16
4 505.46 505.46
5 490.22 490.22
6 467.36 467.36
7 439.42 439.42
8 403.86 403.86
9 358.14 358.14
10 609.6 0
11 449.58 0
12 297.18 0
