6. Layouts
PNEG-1827 36' Dura-Lok Plank and Support Manual 29
36'-17" Monorail Spacing Layout

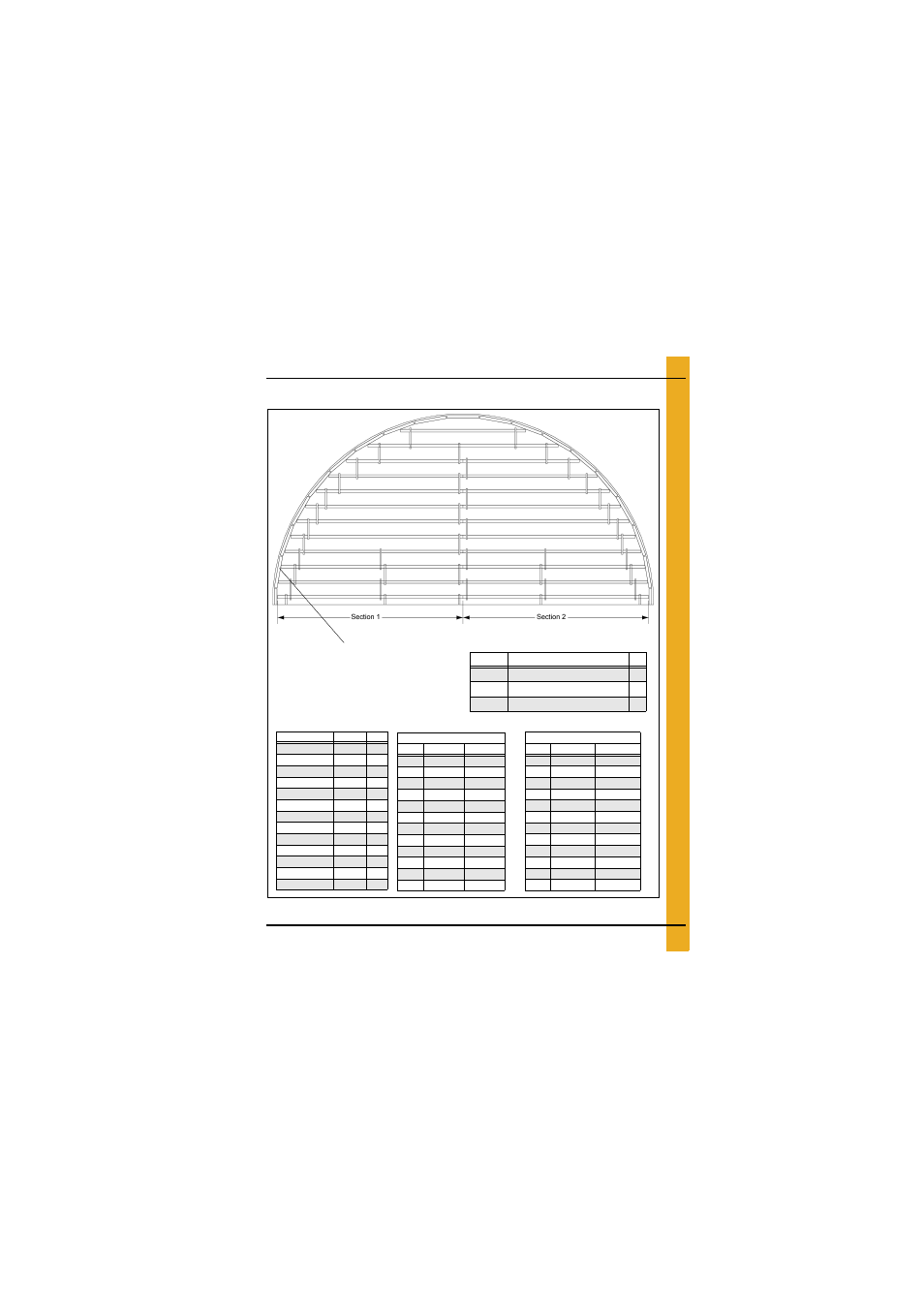

Figure 6D 36' Diameter Bin with 17" Monorail Spacing
NOTE: Thirty six (36) total outer perimeter 3' monorail
pieces. See
Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-17.8MONO 214 2
A-17.42MONO 209 4
A-17.3MONO 208 4
A-17.08MONO 205 4
A-16.6MONO 200 4
A-16.2MONO 194 4
A-15.58MONO 187 4
A-14.75MONO 177 4
A-13.75MONO 165 4
A-12.58MONO 151 4
A-11.8MONO 141 2
A-10.92MONO 131 4
A-3MONO 36 50
36' Diameter 17" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 209 209
2 208 208
3 205 205
4 200 200
5 194 194
6 187 187
7 177 177
8 165 165
9 151 151
10 131 131
11 214 0
12 141 0
Part # Description Qty
FL-404-17 17" Monorail Tie Bar 90
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 300
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.97 m Diameter 43.18 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 530.86 530.86
2 528.32 528.32
3 520.7 520.7
4 508 508
5 492.76 492.76
6 474.98 474.98
7 449.58 449.58
8 419.1 419.1
9 383.54 383.54
10 332.74 332.74
11 543.56 0
12 358.14 0
