6. Layouts
PNEG-1827 36' Dura-Lok Plank and Support Manual 27
36'-16" Monorail Spacing Layout

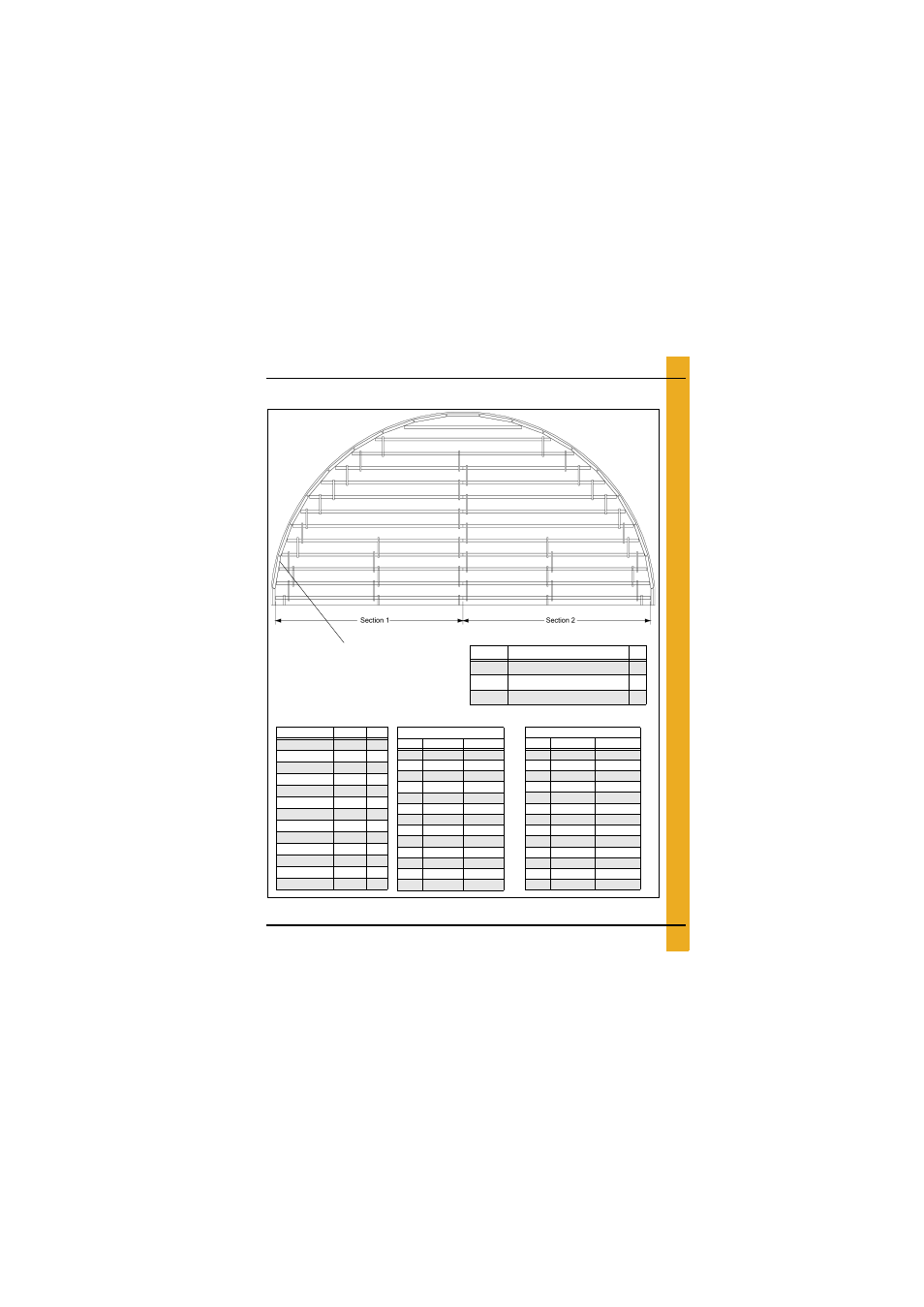

Figure 6B 36' Diameter Bin with 16" Monorail Spacing
NOTE: Thirty six (36) total outer perimeter 3' monorail
pieces. See
Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-20.58MONO 247 2
A-17.42MONO 209 4
A-17.3MONO 208 4
A-17.08MONO 205 4
A-16.8MONO 202 4
A-16.3MONO 196 6
A-15.83MONO 190 4
A-15.08MONO 181 4
A-14.25MONO 171 4
A-13.2MONO 158 4
A-11.83MONO 142 4
A-10.92MONO 131 2
A-3MONO 36 50
36' Diameter 16" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 209 209
2 208 208
3 205 205
4 202 202
5 196 196
6 190 190
7 181 181
8 171 171
9 158 158
10 142 142
11 247 0
12 196 0
13 131 0
Part # Description Qty
FL-404-16 16" Monorail Tie Bar 90
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 320
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.97 m Diameter 40.64 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 530.86 530.86
2 528.32 528.32
3 520.7 520.7
4 513.08 513.08
5 497.84 497.84
6 482.6 482.6
7 459.74 459.74
8 434.34 434.34
9 401.32 401.32
10 360.68 360.68
11 627.38 0
12 497.84 0
13 332.74 0
