6. Layouts
PNEG-1827 36' Dura-Lok Plank and Support Manual 33
36'-20" Monorail Spacing Layout

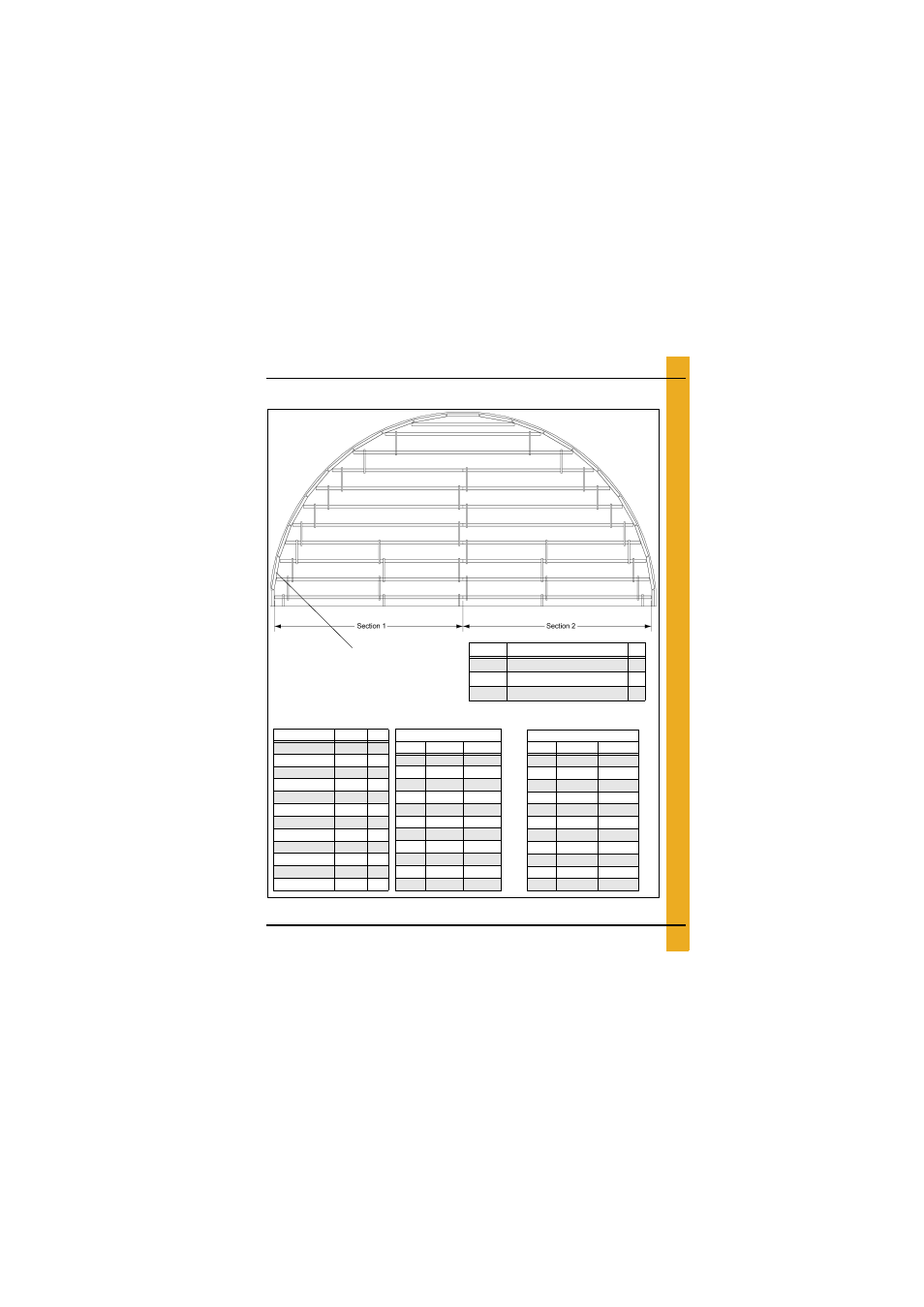

Figure 6H 36' Diameter Bin with 20" Monorail Spacing
NOTE: Thirty six (36) total outer perimeter 3' monorail pieces.
See
Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-20.25MONO 243 2
A-17.42MONO 209 4
A-17.25MONO 207 4
A-16.92MONO 203 4
A-16.42MONO 197 4
A-15.75MONO 189 4
A-14.75MONO 177 4
A-14.33MONO 172 2
A-13.58MONO 163 4
A-12.08MONO 145 4
A-9.5MONO 114 2
A-3MONO 36 50
36' Diameter 20" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 209 209
2 207 207
3 203 203
4 197 197
5 189 189
6 177 177
7 163 163
8 145 145
9 243 0
10 172 0
11 114 0
Part # Description Qty
FL-404-1 20" Monorail Tie Bar 70
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 270
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.97 m Diameter 50.8 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 530.86 530.86
2 525.78 525.78
3 515.62 515.62
4 500.38 500.38
5 480.06 480.06
6 449.58 449.58
7 414.02 414.02
8 368.3 368.3
9 617.22 0
10 436.88 0
11 289.56 0
