12. Stiffeners
PNEG-805 36' Diameter 40°/45° NCHT Commercial Hopper Tanks 47

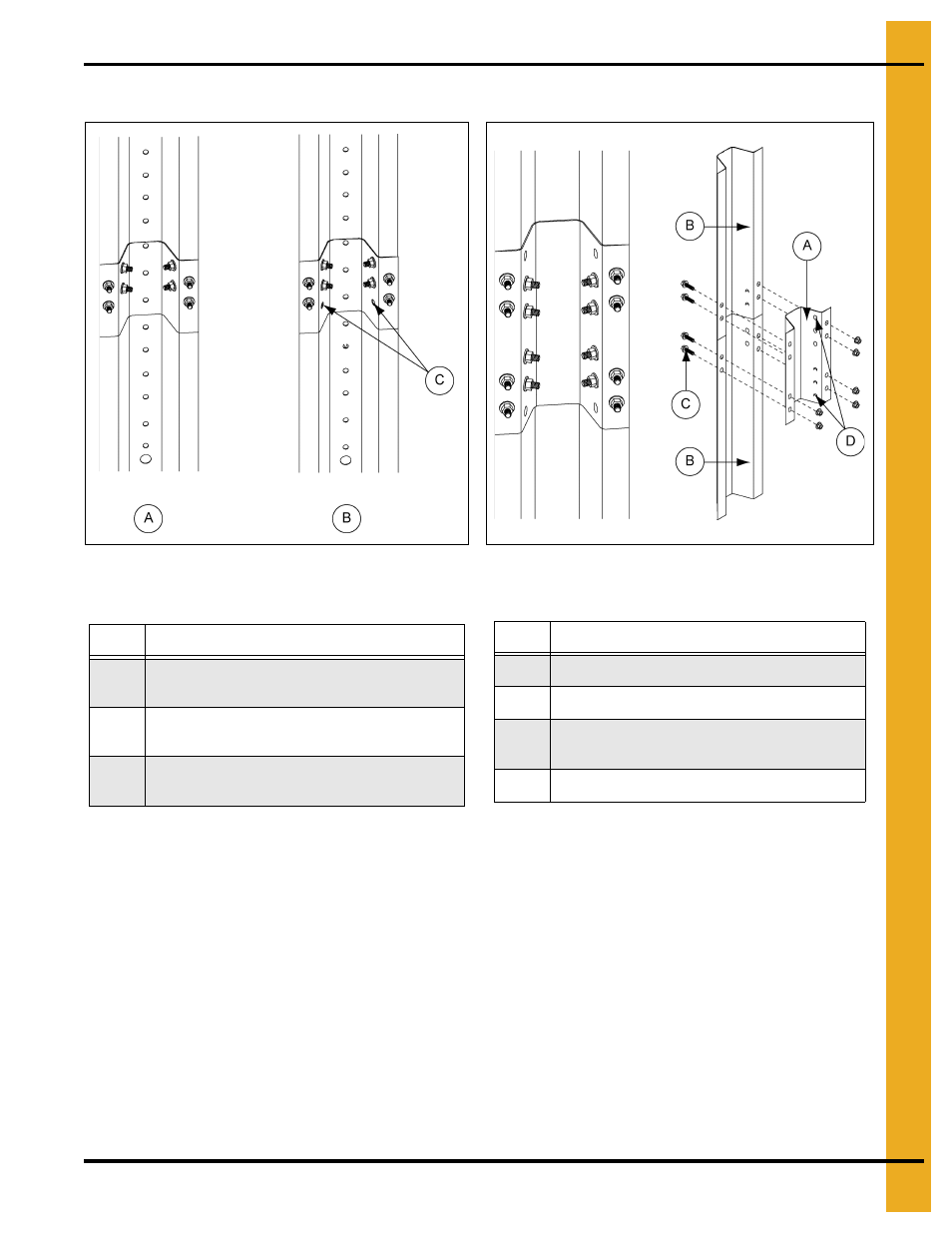

2.66" Corrugation Commercial Stiffener Splice Details (Continued)
Figure 12C Figure 12D 10 Gauge and 11 Gauge Stiffener
Bearing Splice
Ref # Description
A 14 Gauge and 15 Gauge to 14 Gauge and
15 Gauge Offset Connection Detail
B 14 Gauge and 15 Gauge to 13 Gauge and
12 Gauge Offset Connection Detail
C Bolt hole not used in 14 gauge and 15 gauge.
Do not drill.
Ref # Description
A Splice Plate 8 Gauge (SS-7053)
B 10 Gauge or 11 Gauge Standard Stiffener
C 3/8" Diameter Hex Flanged Head Bolt
(No Sealing Washer)
D Bolt holes in splice plate not used. Do not drill.
