7. Hopper Section Assembly
PNEG-805 36' Diameter 40°/45° NCHT Commercial Hopper Tanks 27
Install Compression Angle
Lift the compression angles on top of the columns so that the columns fit between the inside and outside
vertical plates of the compression angle. A 5/8"-11 x 2-3/4" bolt may be placed in the top hole of the
compression angle and the top plate of the column for alignment purposes. Using 5/8"-11 x 2" bolts,
connect the compression angles to the columns with a splice plate on each side as shown in
Figure 7C .
Do not tighten bolts until after hopper panels are installed to allow alignment.

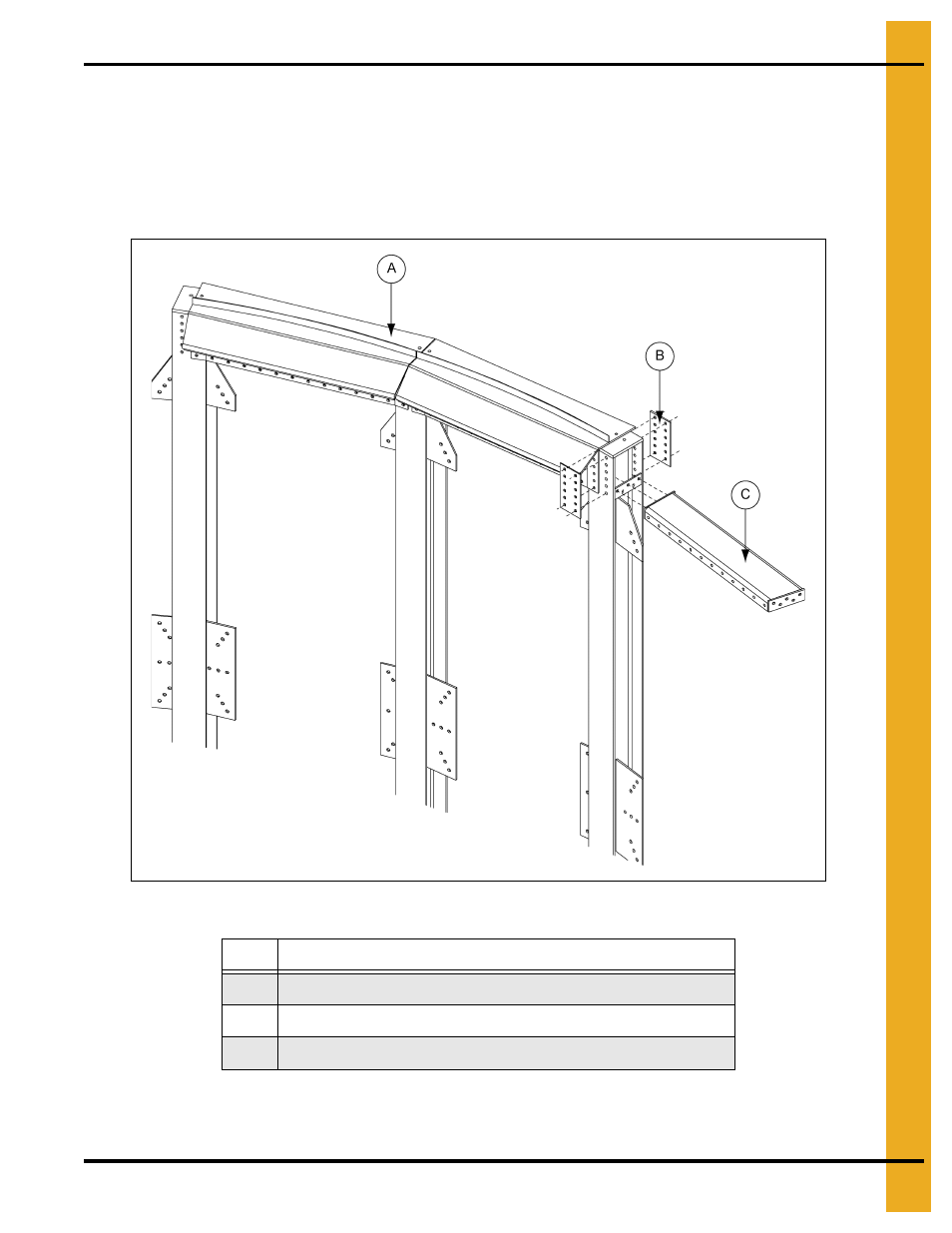

Figure 7C Compression Angle Erection
NOTE: Compression angle holes not shown for clarity. Structural bracing not shown for clarity.
36' Diameter hopper tanks have 24 columns.
Ref # Description
A Compression Angle Segments
B Splice Plate
C Horizontal Compression Channel (See Figure 7D on Page 28.)
