12. Stiffeners
46 PNEG-805 36' Diameter 40°/45° NCHT Commercial Hopper Tanks
2.66" Corrugation Commercial Stiffener Splice Details
When installing bottom stiffeners, you may find that in some cases the stiffener with base plate attached
will not rest on support structure. Shim plates have been furnished and should be used to fill opening
between base plate and compression element.
See Page 58 for detail.
IMPORTANT: If shim plates are not used where required, the downward pressure of the stiffeners will not
be transferred directly to the foundation and bin failure could result.

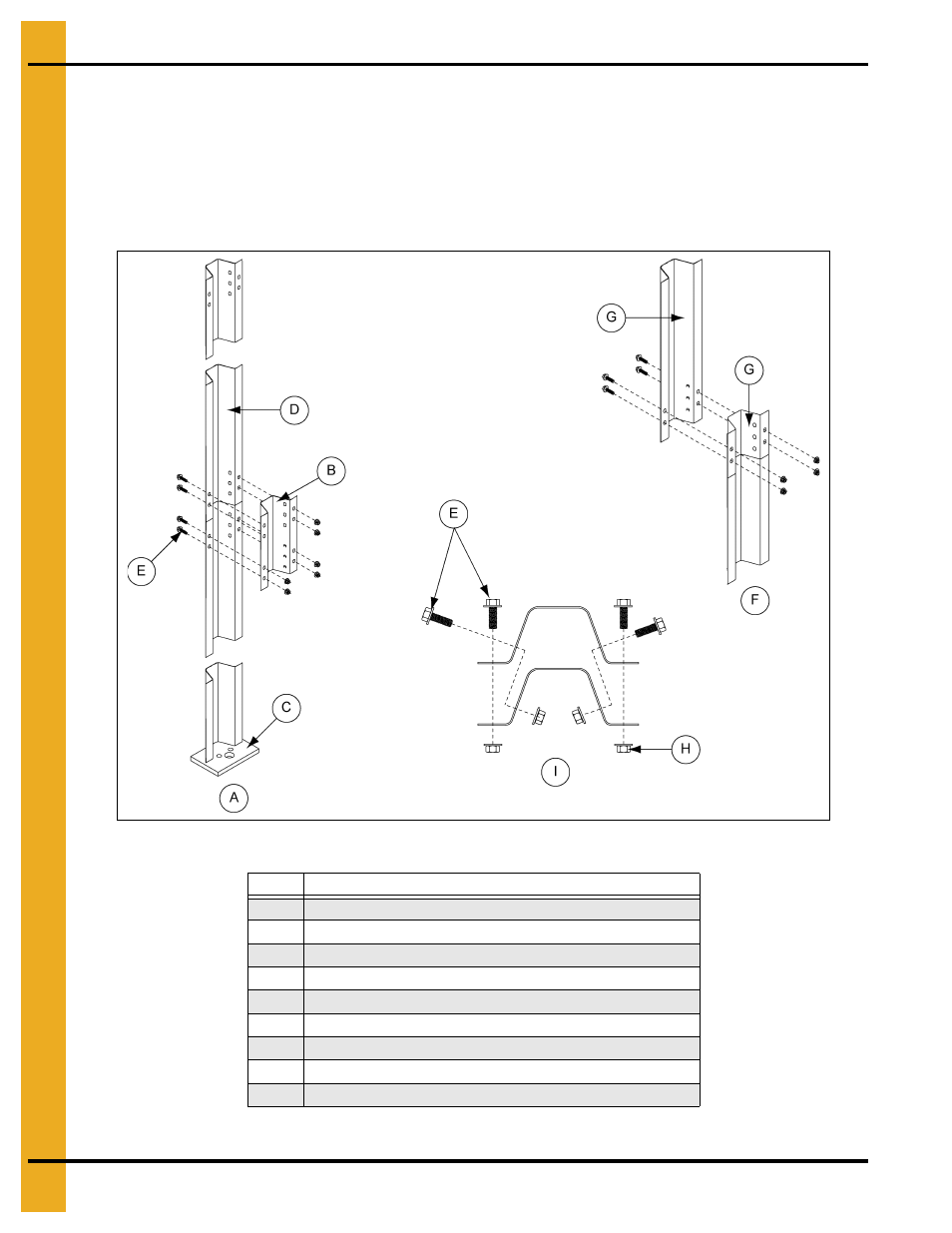

Figure 12B
See Page 34 and Pages 44-46 for further details.
Ref # Description
A Splice Plate Joint Detail (Non-Offset Joint)
B Splice Plate 8 Gauge (Fluorescent Green) (SS-7053)
C Base Stiffener (SS-6976)
D 2 Ring Standard Stiffener
E 3/8" Diameter Hex Flanged Head Bolt (No Sealing Washer)
F Offset Joint Connection Detail
G Standard Offset Stiffener
H 3/8" Flange Nut
I Splice Plate Joint (Top View)
