PNEG-805 36' Diameter 40°/45° NCHT Commercial Hopper Tanks

25

7. Hopper Section Assembly

Hopper Section Assembly 36' Diameter Hopper Tanks

Use a transit and surveyors rod to locate high and low areas in the concrete, before placing the support
columns on the anchor bolts. To assure level alignment, use the proper supplied shim (or) shims between
the concrete and base plate. After leveling, place the support columns over the anchor bolts, on the shims
and loosely fasten with nuts and washers (not supplied).

(See Figure 7A.)

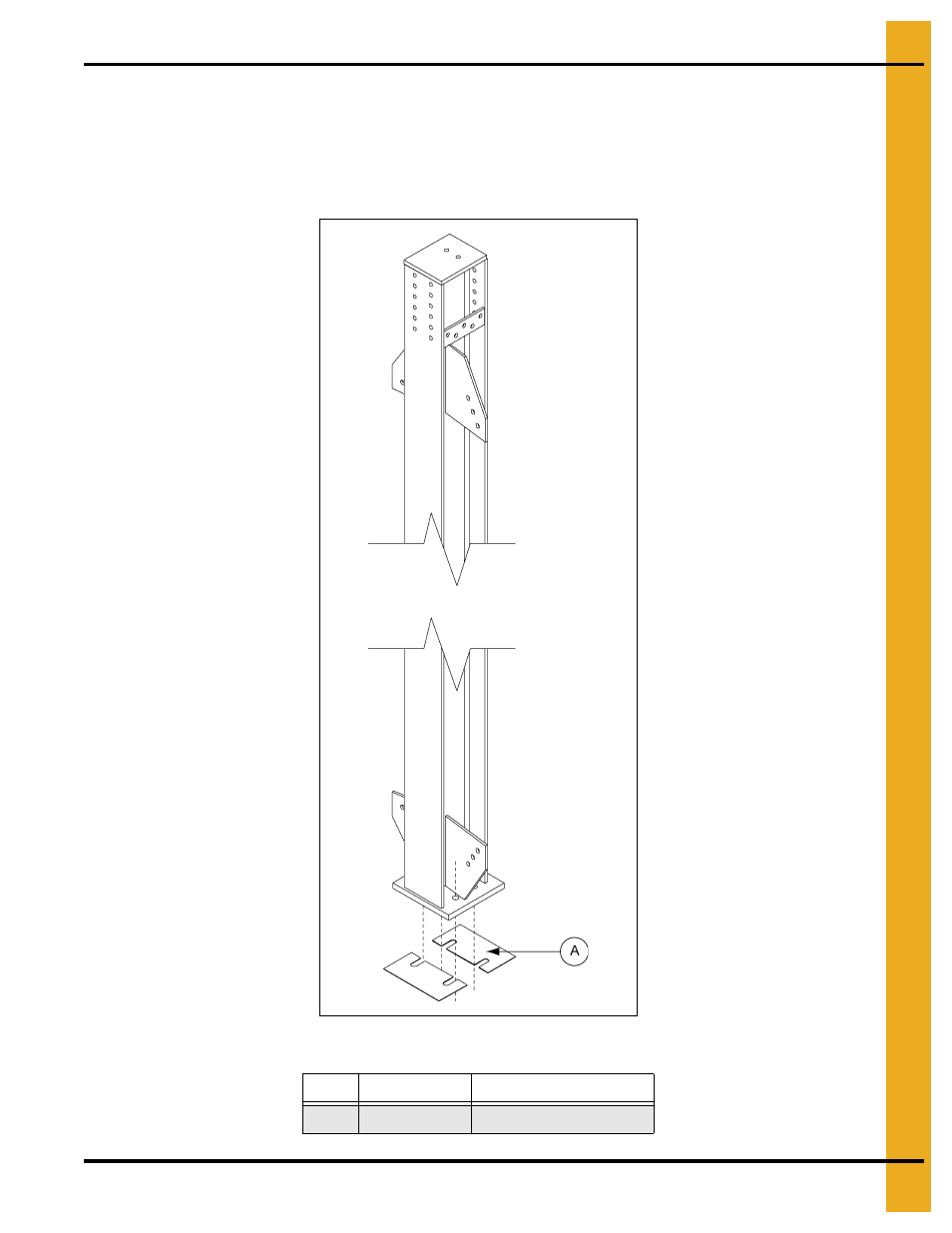

Figure 7A Column Shim Plate Detail (Use when necessary.)

Ref #

Part #

Description

A

CHT-1425

Shim Plate
