Chapter 7: Roof Assembly

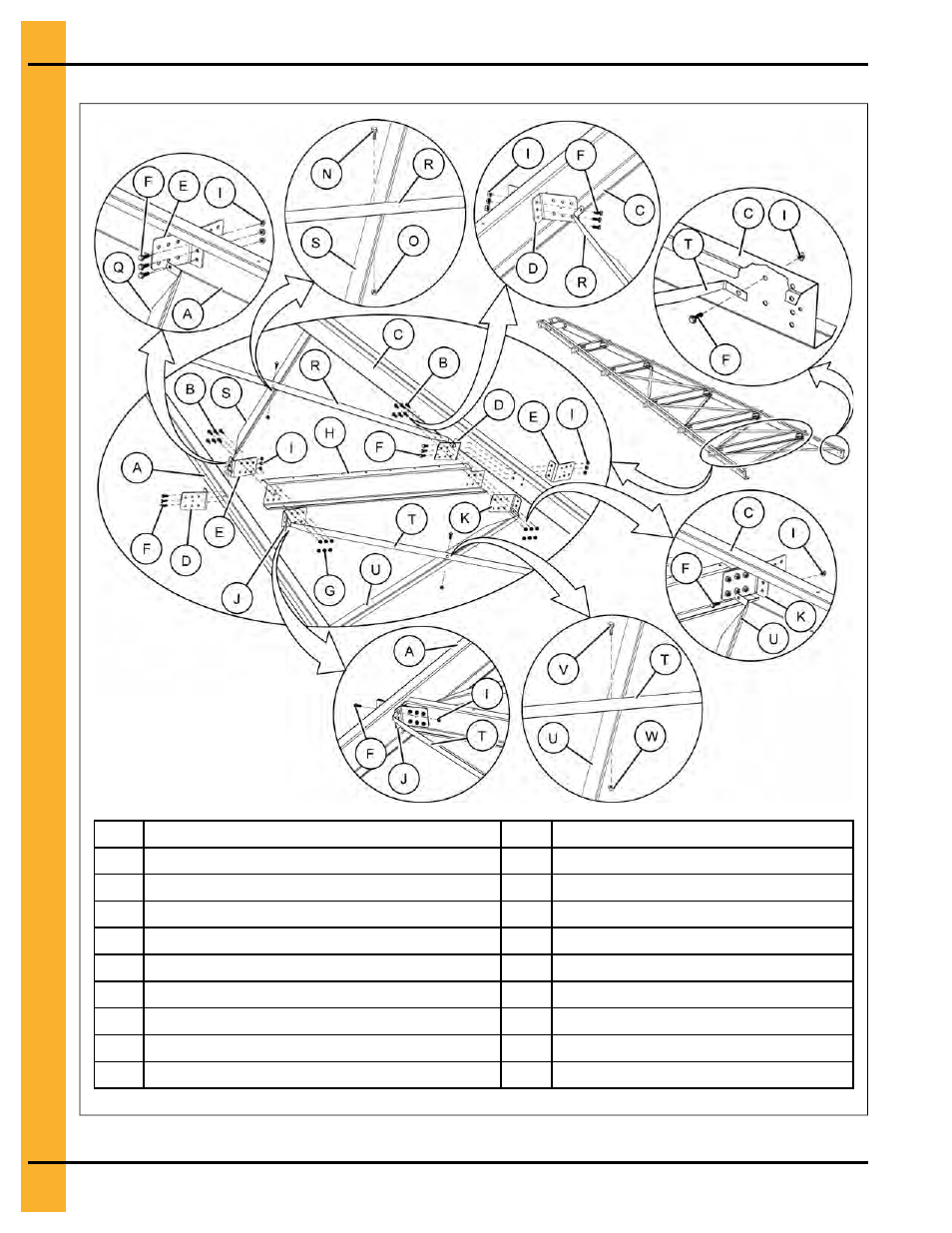

Figure 7-15 Purlin location 1

A

Left-hand roof rafter (CTR-0481 and CTR-0488)

K

Lower right purlin clip (CTR-0612)

B

7/16 x 1-1/4 in. flange bolt (S-10250)

R

Top X-brace (CTR-0494)

C

Right-hand roof rafter (CTR-0481 and CTR-0488)

S

Bottom X-brace (CTR-0494)

D

Upper right purlin clip (CTR-0614)

N

7/16 x 1-1/4 in. flange bolt (S-10250)

E

Upper left purlin clip (CTR-0613)

O

7/16 in. flange nut (S-10251)

F

7/16 x 1-1/4 in. flange bolt (S-10250)

T

Top X-brace (CTR-0493)

G

7/16 in. flange nut (S-10251)

U

Bottom X-brace (CTR-0493)

H

Purlin (CTR-0483)

V

7/16 x 1-1/4 in. flange bolt (S-10250)

I

7/16 in. flange nut (S-10251)

W

7/16 in. flange nut (S-10251)

J

Lower left purlin clip (CTR-0611)
