Chapter 7: Roof Assembly

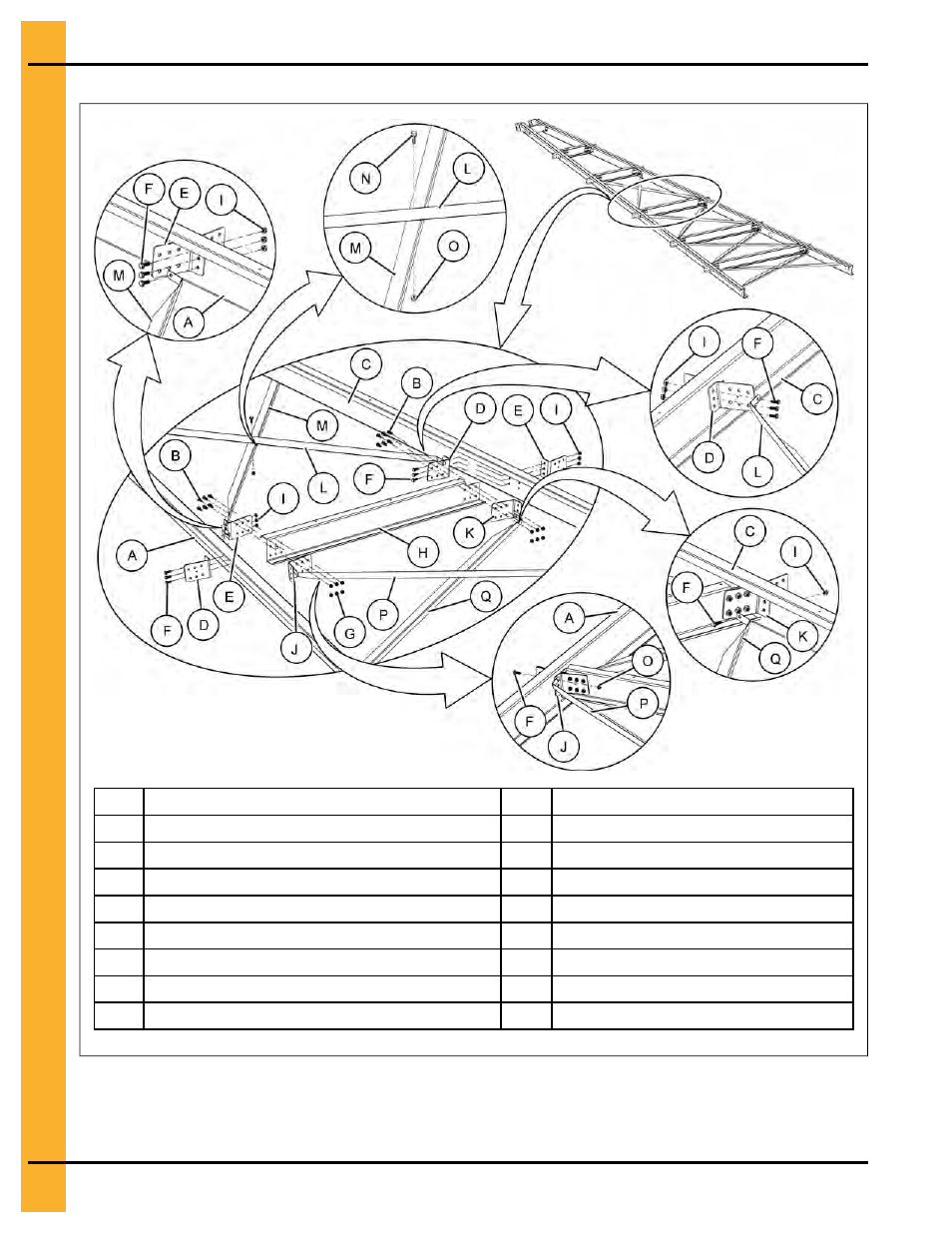

Figure 7-13 Purlin location 3
A Left-hand roof rafter (CTR-0481 and CTR-0488) J Lower left purlin clip (CTR-0611)
B 7/16 x 1-1/4 in. flange bolt (S-10250) K Lower right purlin clip (CTR-0612)
C Right-hand roof rafter (CTR-0481 and CTR-0488) L Top X-brace (CTR-0496)
D Upper right purlin clip (CTR-0614) M Bottom X-brace (CTR-0496)
E Upper left purlin clip (CTR-0613) N 7/16 x 1-1/4 in. flange bolt (S-10250)
F 7/16 x 1-1/4 in. flange bolt (S-10250) O 7/16 in. flange nut (S-10251)
G 7/16 in. flange nut (S-10251) P Top X-brace (CTR-0495)
H Purlin (CTR-0484) Q Bottom X-brace (CTR-0495)
I 7/16 in. flange nut (S-10251)
