Chapter 7: Roof Assembly

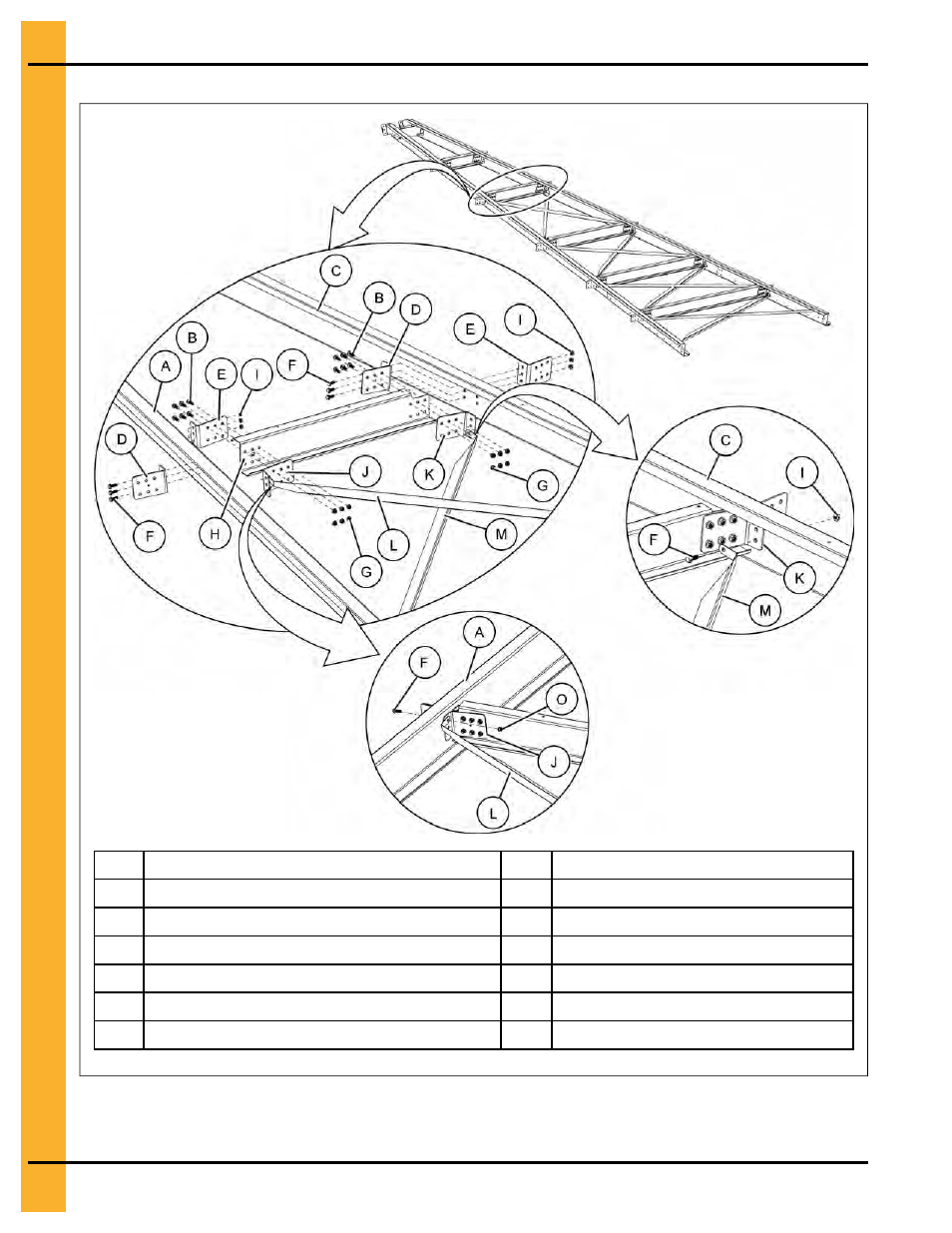

Figure 7-12 Purlin location 4

A

Left-hand roof rafter (CTR-0481 and CTR-0488)

H

Purlin (CTR-0485)

B

7/16 x 1-1/4 in. flange bolt (S-10250)

I

7/16 in. flange nut (S-10251)

C

Right-hand roof rafter (CTR-0481 and CTR-0488)

J

Lower left purlin clip (CTR-0611)

D

Upper right purlin clip (CTR-0614)

K

Lower right purlin clip (CTR-0612)

E

Upper left purlin clip (CTR-0613)

L

Top X-brace (CTR-0496)

F

7/16 x 1-1/4 in. flange bolt (S-10250)

M

Bottom X-brace (CTR-0496)

G

7/16 in. flange nut (S-10251)

92

Pneg-4054G 54 Ft Diameter 40-Series Bin
