Chapter 7: roof assembly – Grain Systems Tanks PNEG-4054G User Manual
Page 111

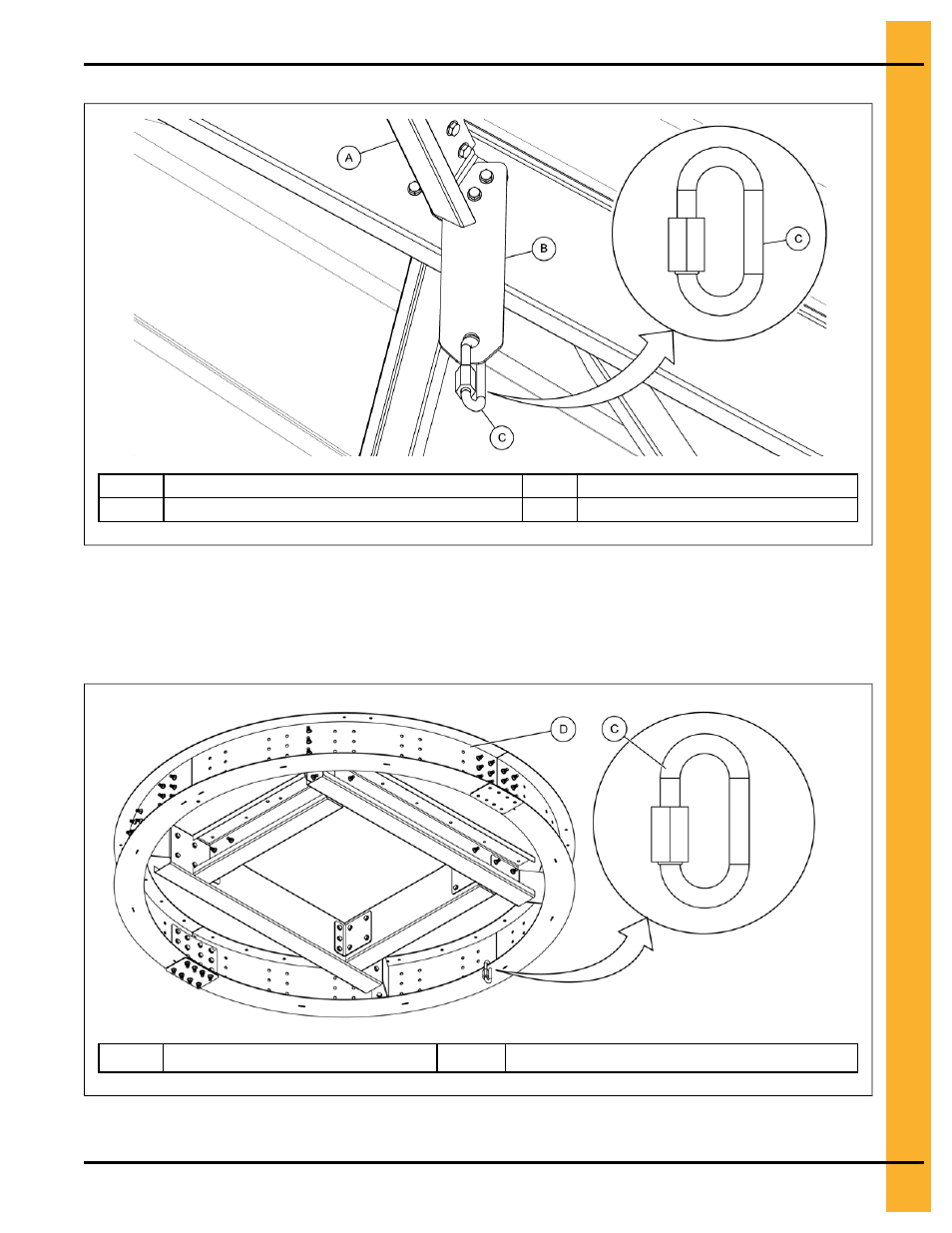

Figure 7-26 Supplier quick link
A
Purlin
C
Supplier quick link
B
Temperature cable bracket (CTR-0172)
6. Locate the center collar temperature cable hole (D), and install a supplier quick link (C), allowing for
the installation of a temperature cable at this location.
Figure 7-27 Supplier quick link on the center collar (view from bottom side of center collar)
C
Supplier quick link
D
Center collar temperature cable hole
Pneg-4054G 54 Ft Diameter 40-Series Bin
111
