Chapter 2: General Overview

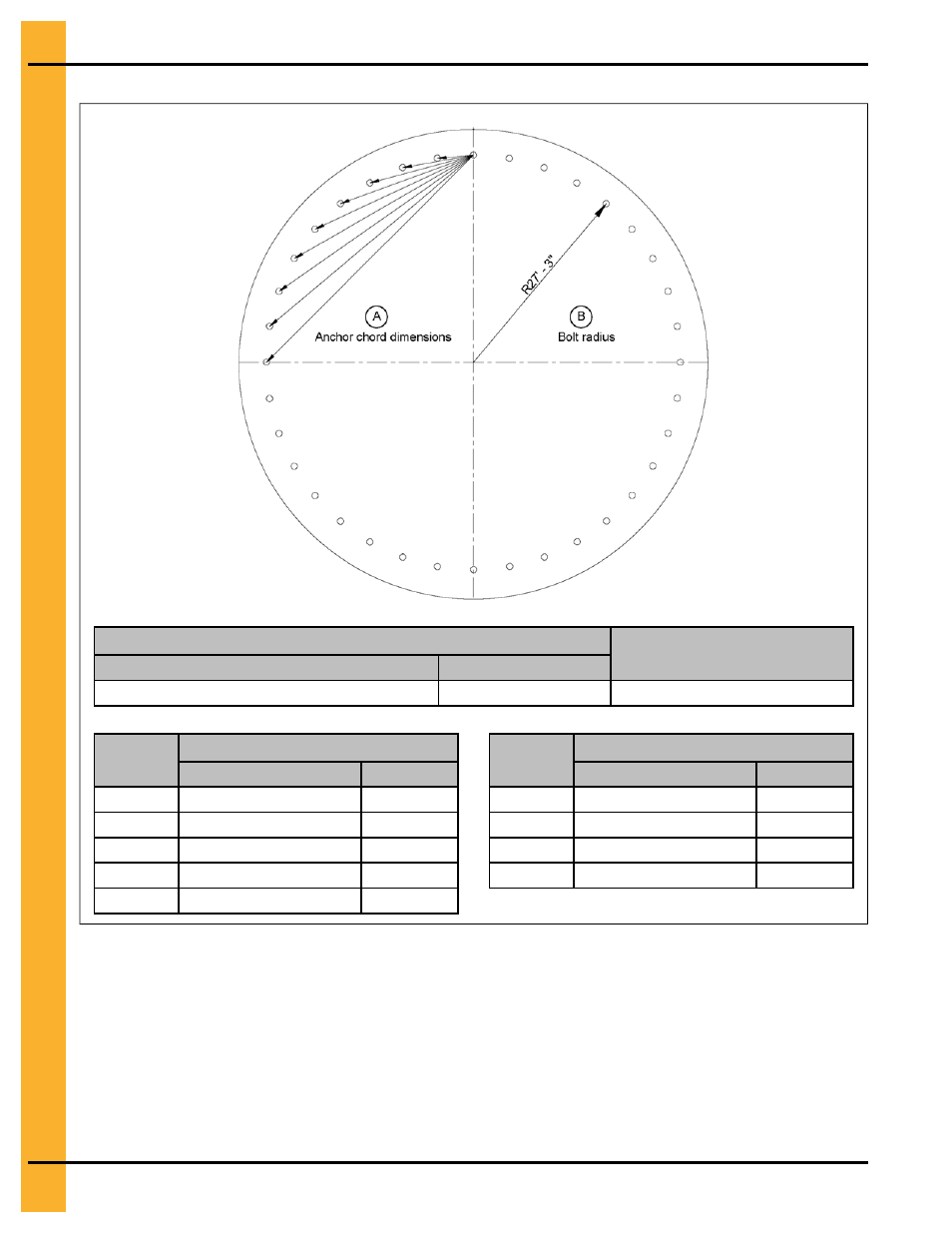

Figure 2-1 Anchor bolt chords for 54 diameter 2–post bin

Bolt Radius (B)

Anchor Quantity

ft and in

m

27 – 3

8.306

36

Chord (A)

Length

ft and in

m

1

4 – 9-1/16

1.449

2

9 – 5-5/8

2.886

3

14 – 1-5/16

4.301

4

18 – 7-3/4

5.683

5

23 – 1/2

7.023

Chord (A)

Length

ft and in

m

6

27 – 3-1/8

8.309

7

31 – 3-1/4

9.531

8

35 – 1/2

10.681

9

38 – 6-9/16

11.749

16
