Chapter 7: Roof Assembly

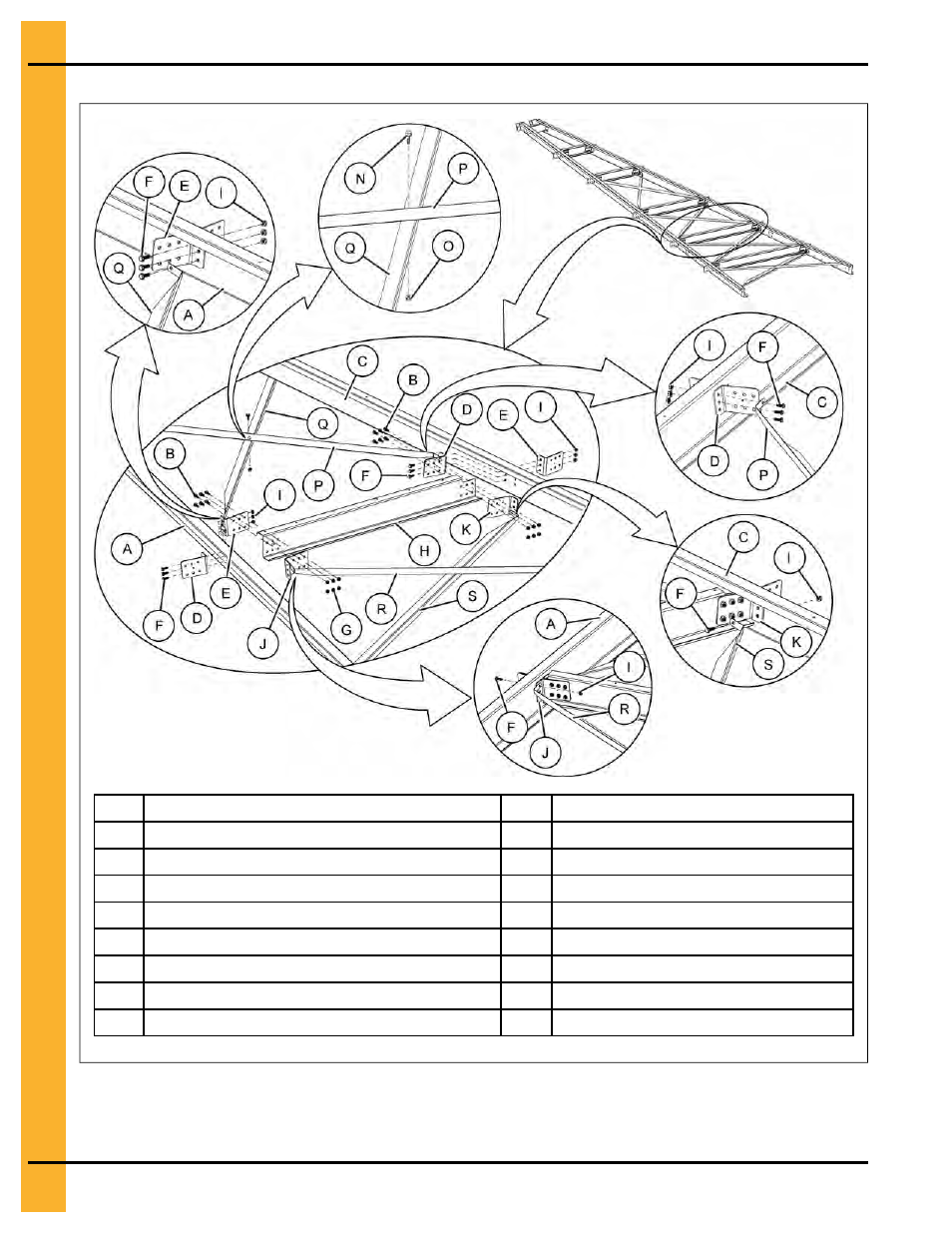

Figure 7-14 Purlin location 2
A Left-hand roof rafter (CTR-0481 and CTR-0488) J Lower left purlin clip (CTR-0611)
B 7/16 x 1-1/4 in. flange bolt (S-10250) K Lower right purlin clip (CTR-0612)
C Right-hand roof rafter (CTR-0481 and CTR-0488) P Top X-brace (CTR-0495)
D Upper right purlin clip (CTR-0614) Q Bottom X-brace (CTR-0495)
E Upper left purlin clip (CTR-0613) N 7/16 x 1-1/4 in. flange bolt (S-10250)
F 7/16 x 1-1/4 in. flange bolt (S-10250) O 7/16 in. flange nut (S-10251)
G 7/16 in. flange nut (S-10251) R Top X-brace (CTR-0494)
H Purlin (CTR-0483) S Bottom X-brace (CTR-0493)
I 7/16 in. flange nut (S-10251)
