PNEG-970 S2 Hopper w/ Collector Ring 24
Assembly

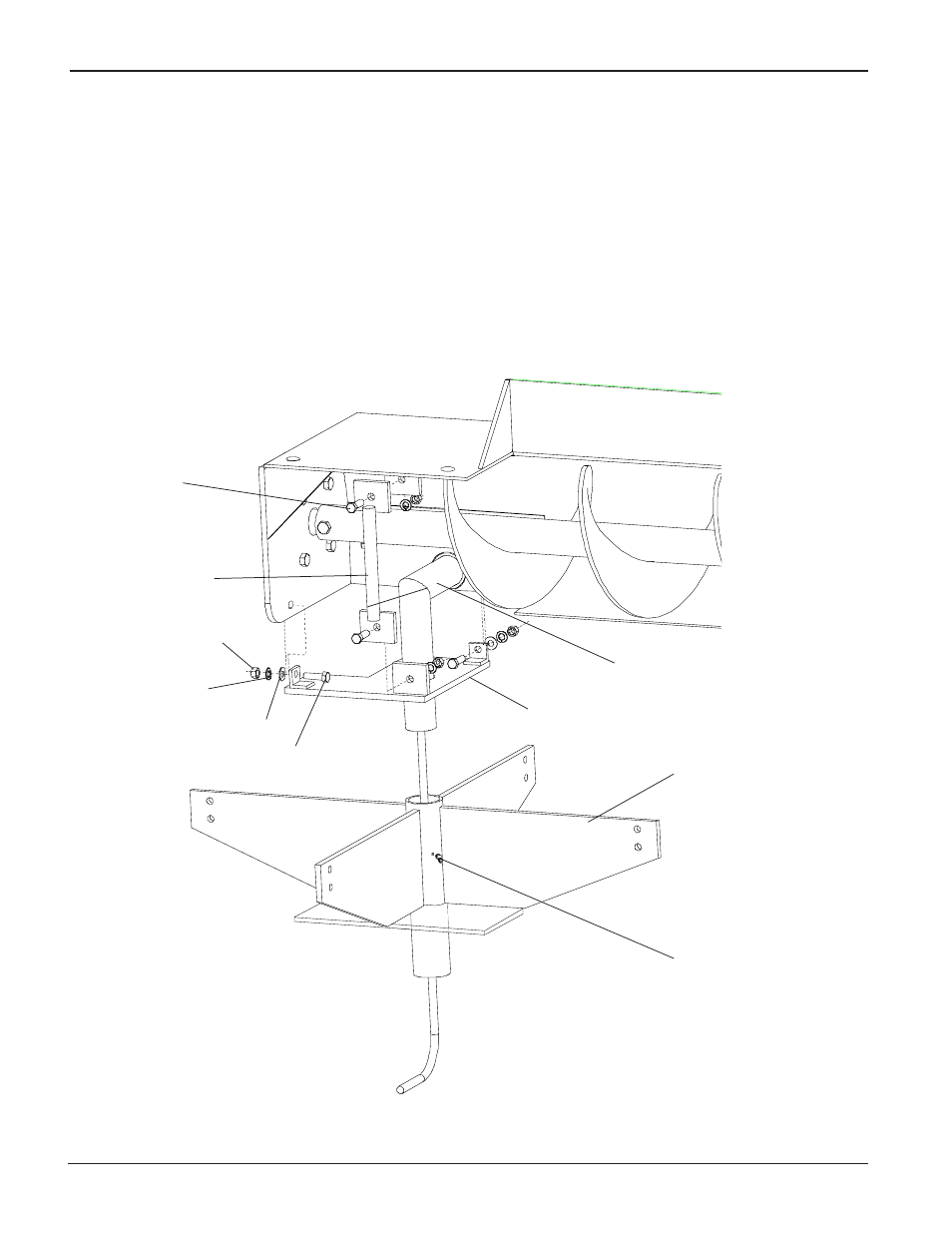

3. ASSEMBLE THE CROSSBRACE TO THE SWEEP (cont.)
C. Connect the pivot plate to the backshield using two (2) 1/2"-13 x 1 3/4" hex bolts,
flat washers, lockwashers, and hex nuts.
D. Fasten the pivot rod to the backshield and pivot plate using two (2) 1/2"-13 x 2" hex bolts,
lockwashers, and hex nuts.
E. Screw the 45 degree grease fitting into the crossbrace assembly.
lockwasher
flat washer
hex nut
1/2"-13 x 1 3/4" hex bolt
1/2"-13 x 2" hex bolt
pivot plate
pivot tube
crossbrace
assembly
45 degree
grease fitting
pivot rod
