PNEG-970 S2 Hopper w/ Collector Ring 16
Assembly
Do not completely assemble the remaining hopper parts until wiring is complete!
1. ASSEMBLE THE CROSSBRACE (cont.)

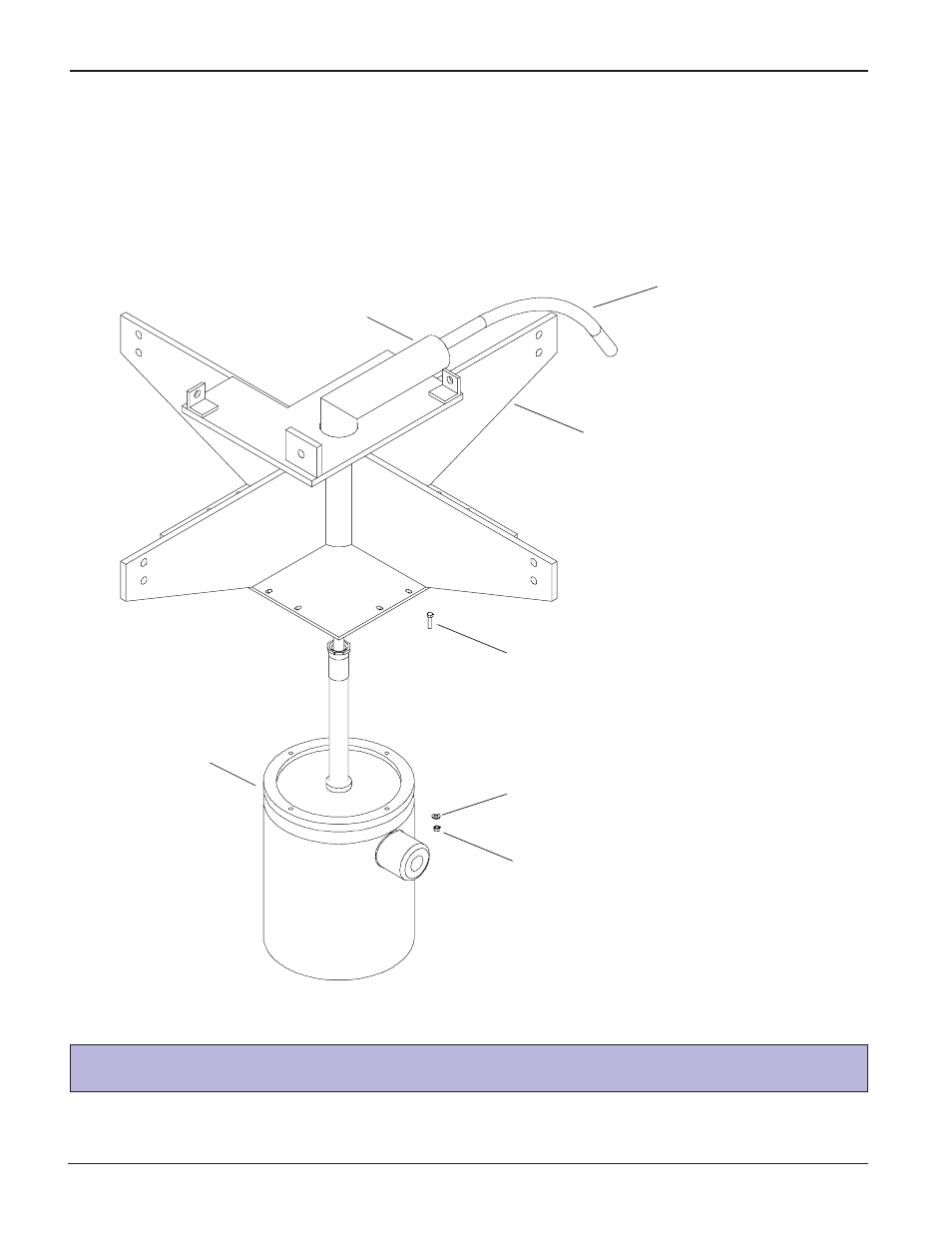

C. Feed the nine (9) stranded wires from the collector ring through the pivot tube and bolt the
collector ring to the crossbrace assembly using four (4) 1/4"-20 x 1" hex bolts, lock washers,
and hex nuts.
collector ring
nine (9) stranded wires
crossbrace assembly
1/4"-20 x 1" hex bolt
hex nut
lock washer
pivot tube
