PNEG-970 S2 Hopper w/ Collector Ring 18
Assembly
1. ASSEMBLE THE CROSSBRACE (cont.)

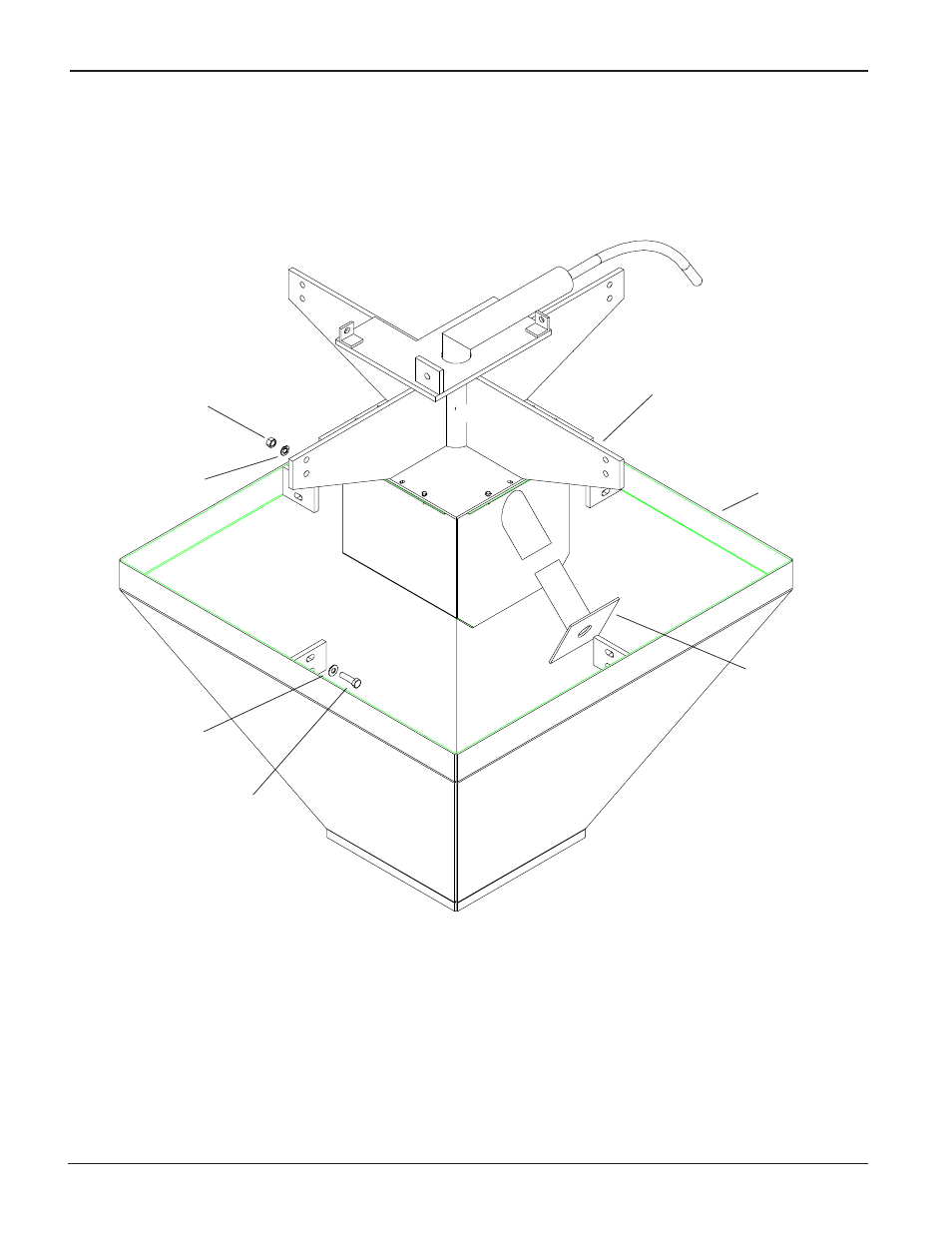

E. Slide the lower tube assembly into the shield assembly. Bolt the crossbrace to the hopper
using four (4) 1/2"-13 x 1 3/4" hex bolts, flat washers, lock washers, and hex nuts (One on
each side.).
1/2"-13 x 1 3/4"
hex bolt
lock washer
hex nut
crossbrace
assembly
lower tube
assembly
hopper
flat washer
F. Slide the lower tube assembly against the hopper and mark the center.
G. Unbolt the crossbrace from the hopper and remove the shield assembly from the crossbrace.
H. Drill a 7/8" hole at the marked location on the hopper.
