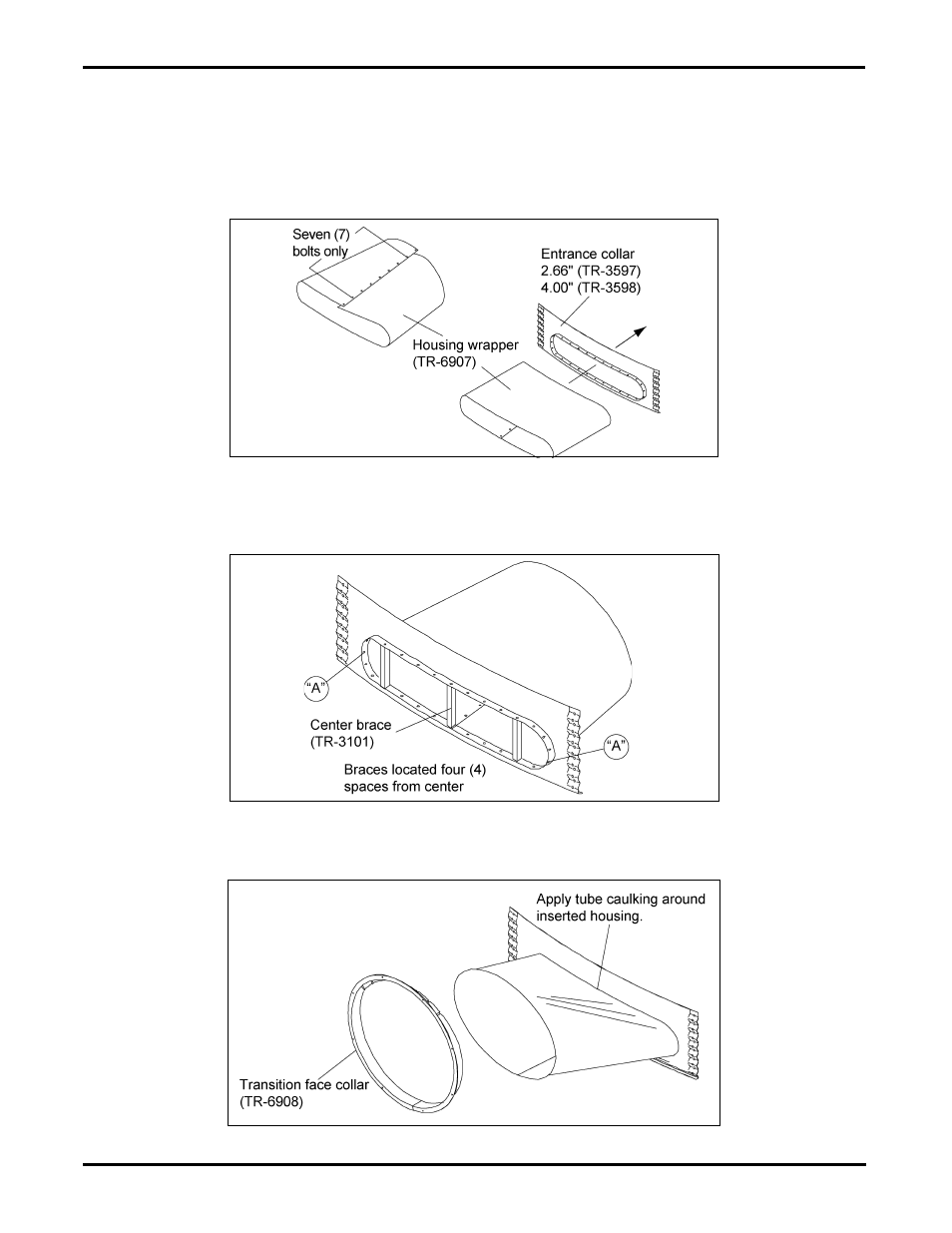

Standard Oval Transition Assembly
Transition Instructions
1. Fold and lap opposite ends of housing wrapper. Using 1/4"-20 x 1/2" bolts, bolt the seams together
leaving the end two (2) holes open.
2. Rotate housing wrapper until bolted seam is on bottom. Slip housing through entrance collar until
front edge is flush with extruded lip.
Figure 4
3. Align holes designated “A” and bolt them first. Place center brace into position and bolt top and
bottom. Complete by bolting remaining holes and inserting remaining braces as shown in Figure 5 .
Figure 5
4. Slide transition face collar into opening, with crimped surface at top. Secure with remaining bolts.
Figure 6
