Pad location, Standard oval transition assembly – Grain Systems PNEG-838 User Manual
Page 2
Page 2 of 4
PNEG-838
Standard Oval Transition Assembly
Pad Location
IMPORTANT: Fan pad/fan must be level for proper operation. Vibration problems can result from
improper fan leveling.
NOTE: Please note new fan pad location. All fan pads should start 32" from bin wall. If heater is to be
used or possibly used in the future, it is recommended that a full fan/heater pad is poured.

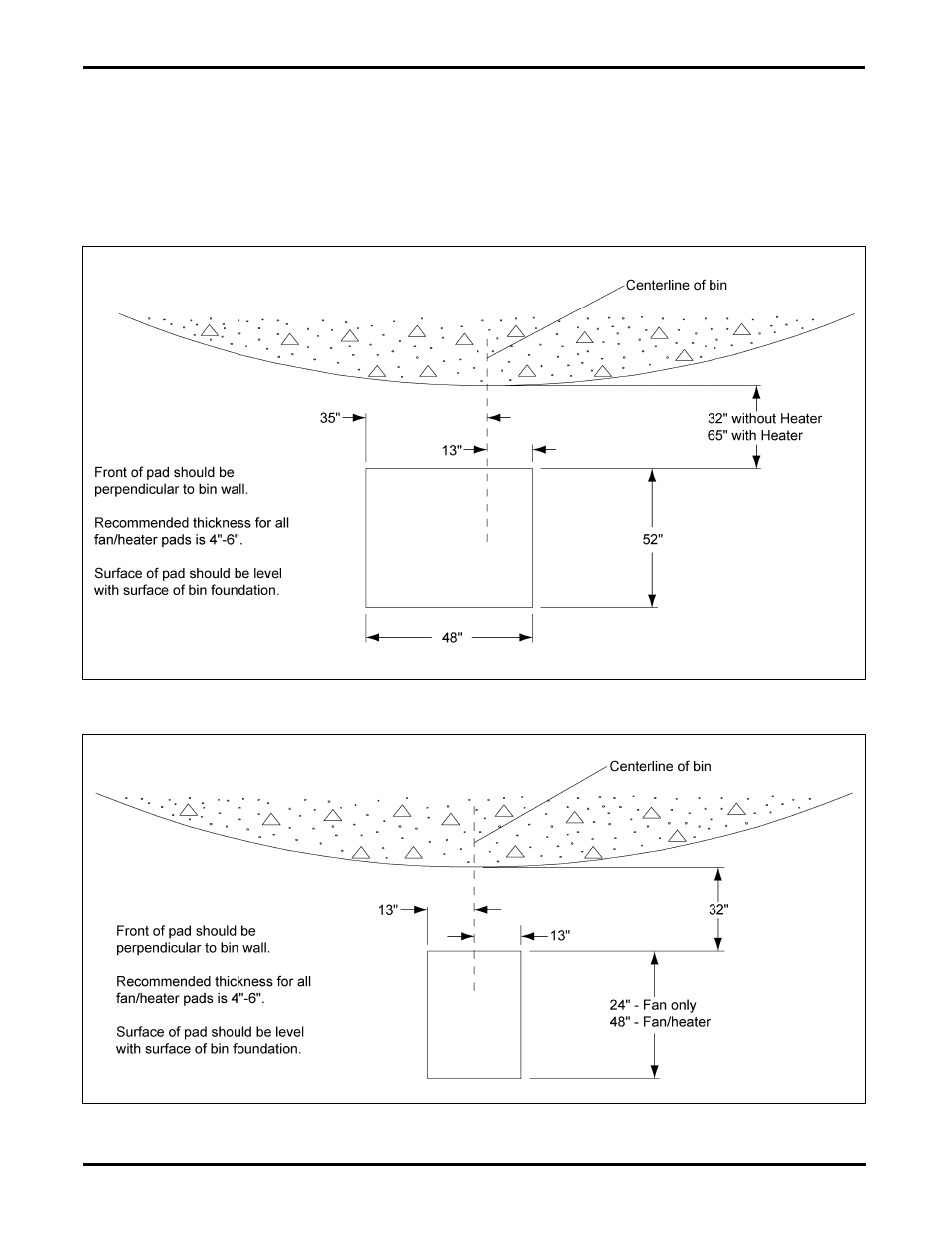

Figure 2 Centrifugal Pad Location
Figure 3 Vane Axial Pad Location
