Installation – Grain Systems Unload Augers PNEG-1550 User Manual
Page 19

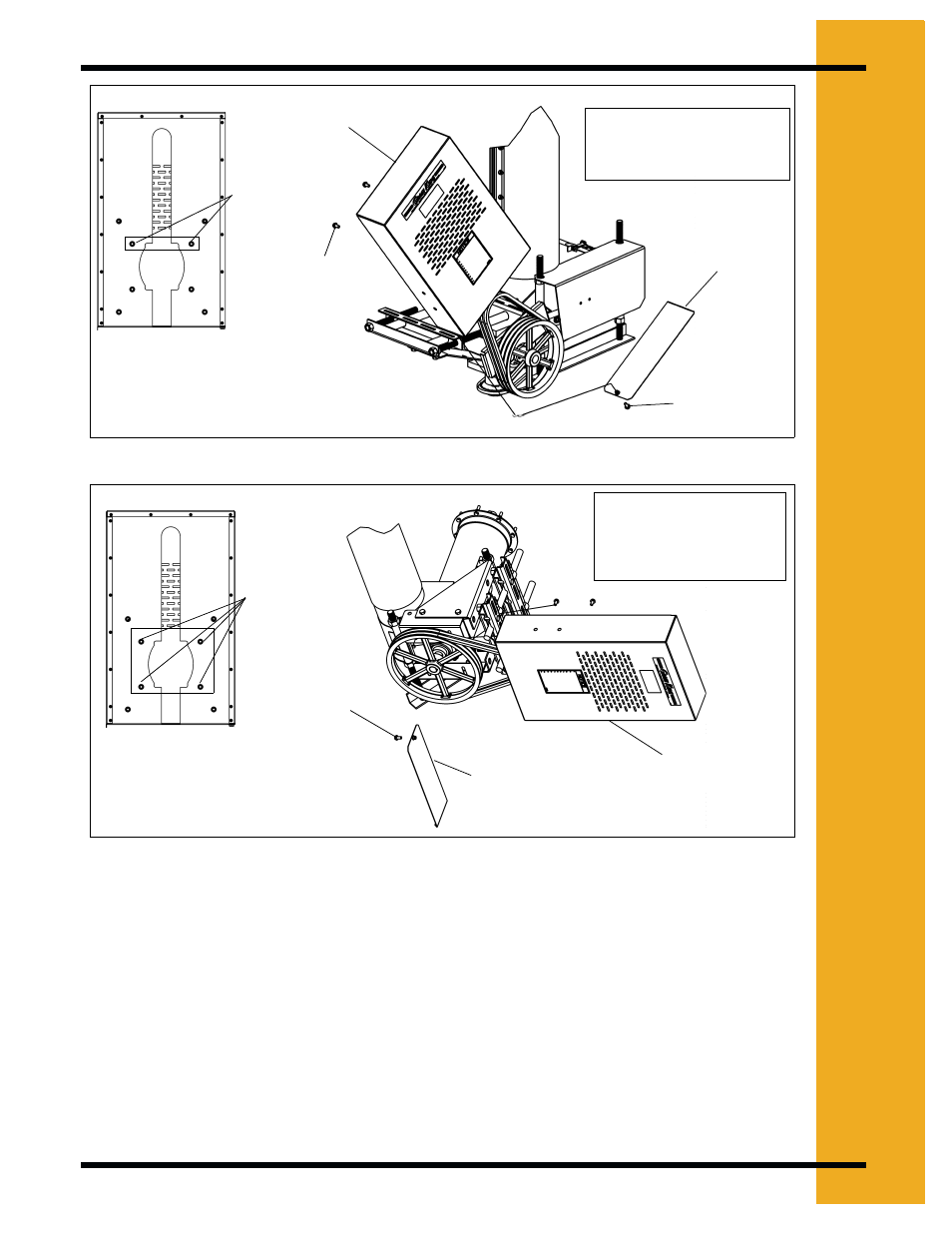

Belt Guard
3/8'' x 3/4''
Flange Bolts
Bottom Belt
Guard Cove
6'', 8'' and 10''
Single drive
Powerheads
3/8'' x 3/4''
Flange Bolts
Note: Installation for All
Single Drive Vertical
Powerheads 10'' Shown
3/8'' x 3/4''
Flange Bolts
Horizontal
Drive on 8''
Double Drive
Powerheads
Bottom Belt
Guard Cover
Belt Guard
Note: Installation for
Horizontal Drive on 8''
Double Drive Vertical
Powerheads
PNEG-1550 Belt Guard
19
Installation
Figure 4N
Figure 4O
E. Center the Belt Guard slot with the Motor Shaft and the Auger Drive Shaft. Make sure
the Belt Guard DOES NOT contact the pulleys, belts, or bearing, and tighten the Belt
Guard to the Belt Guard Mounting Bracket(s).
F. Once the Belt Guard is secured, slide the Bottom Belt Guard Cover back into place and
secure it with the 3/8'' x 3/4'' Flange bolt previously removed.
