Installation – Grain Systems Unload Augers PNEG-1550 User Manual
Page 16
16
PNEG-1550 Belt Guard
Installation
b. Reinstall the motor mount assembly, and loosely tighten the 3/4'' Motor Mount
Adjustment Nuts.

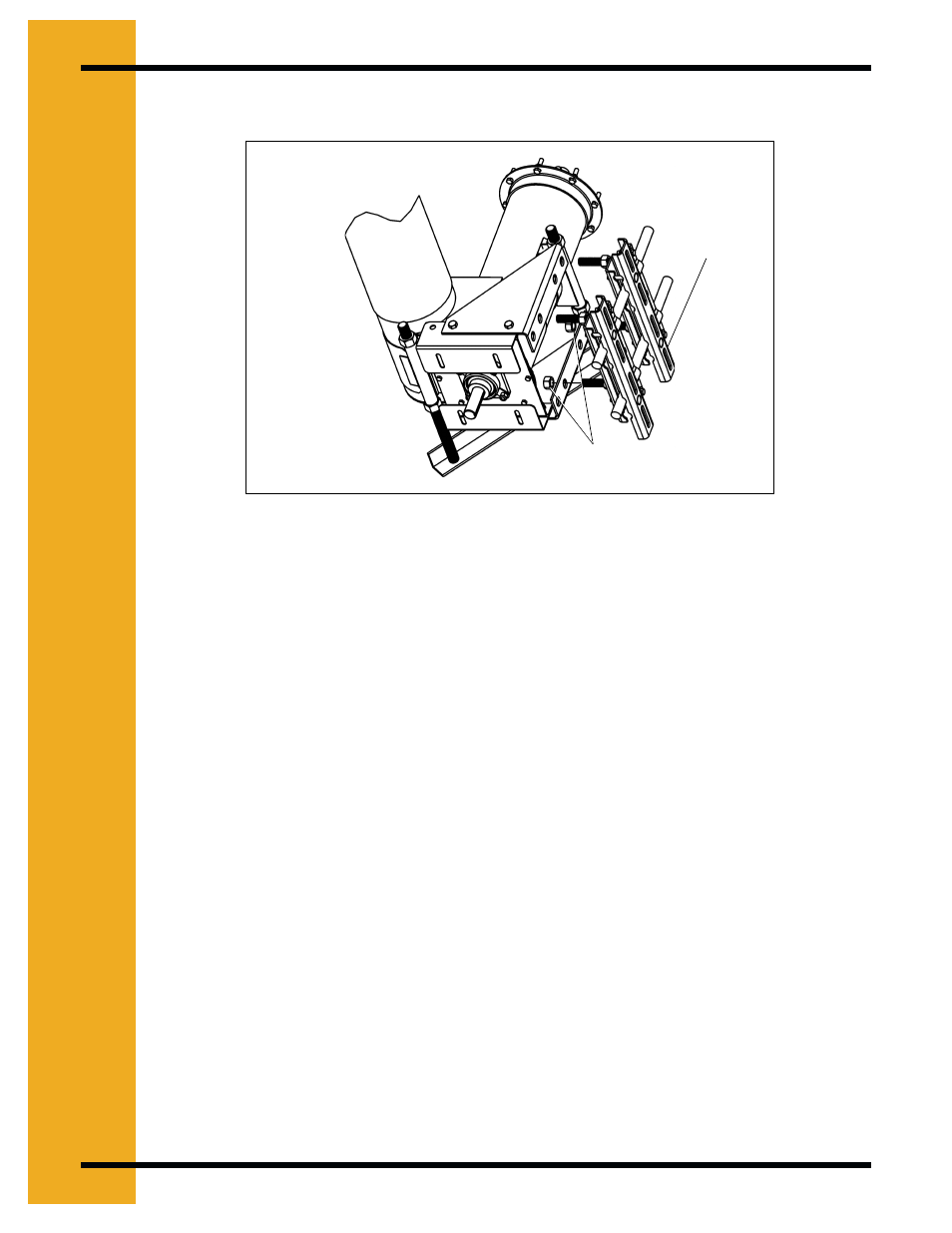

3/4'' Motor Mount
Adjustment Nuts
Motor Mount
Assembly
Figure 4I
c. Reinstall the Motor and Motor Pulley to the Motor Mount Straps. Adjust the Motor
placement along the tube and tighten the Motor Mount Assembly and Motor
attachment bolts.
3. Reinstall Auger Drive Sheave and the Drive belts. Adjust the Motor placement to produce
adequate tension on the belts.
4. Tighten all Motor Mount Component nuts and bolts.
