Installation – Grain Systems Unload Augers PNEG-1550 User Manual
Page 15
PNEG-1550 Belt Guard
15
Installation
B. 6'', 8'', 10'' Single-Drive Vertical Powerheads.

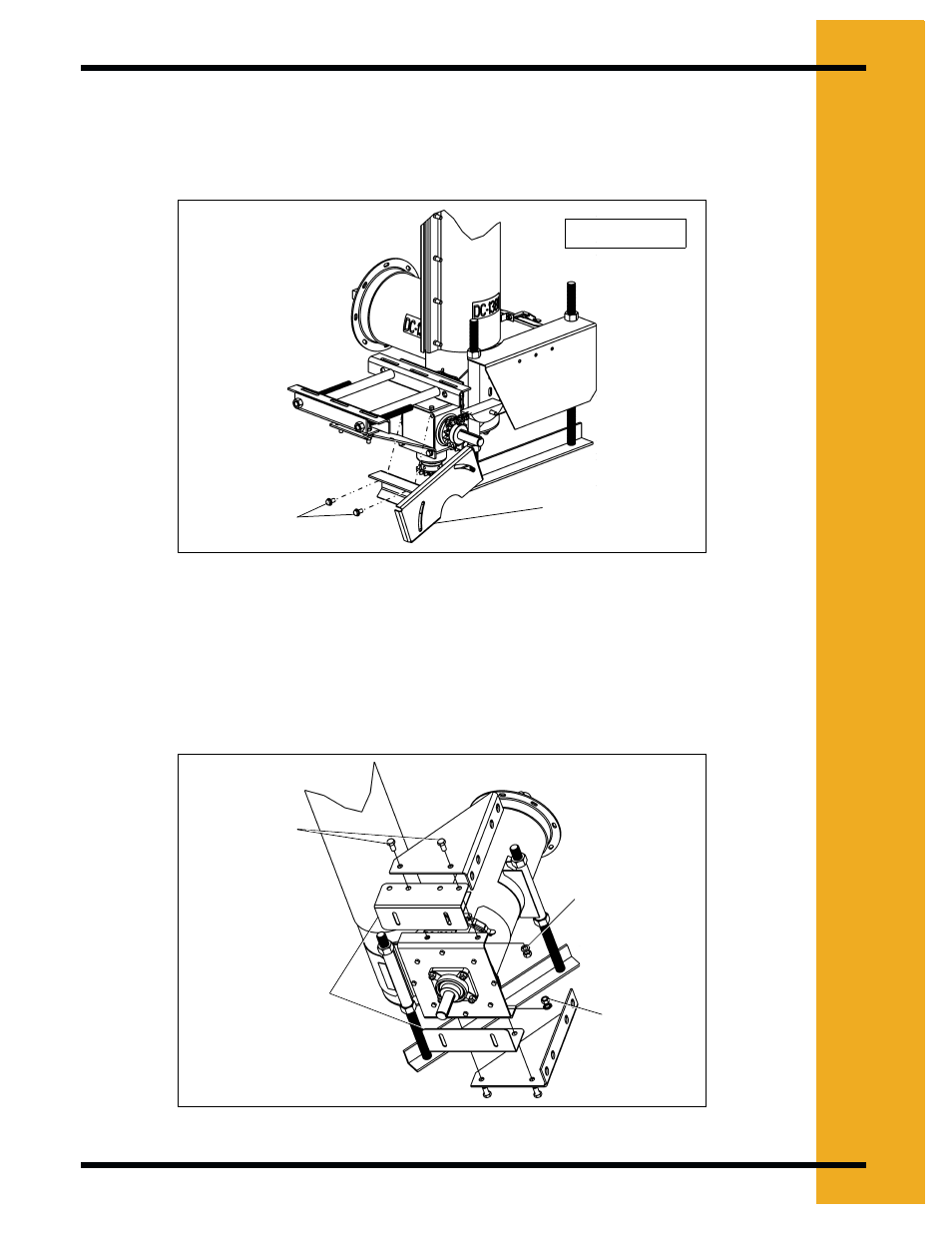

a. Bolt the New Belt Guard Mounting Bracket to the 90° gearbox with the two (2)
supplied 3/8'' x 3/4'' Flange bolts. Leave them slightly loose to adjust the Belt Guard
position later.
3/8'' x 3/4''
Flange Bolts
Note: 8'' Shown
New Belt Guard
Mounting Brackets
Figure 4G
C. Horizontal Drive on 8'' Double-Drive Vertical Augers.
a. Bolt the New Belt Guard Brackets and the Motor Mount Sides to the Powerhead, with
the Brackets pointing towards each other, and slots facing away from the Auger,
using the four (4) 1/2'' x 1'' Hex bolts, lock washers, and Hex nuts removed
previously.
1/2'' x 1''
Hex Bolts
New Belt Guard
Mounting Brackets
1/2'' Hex Nut
1/2'' Lock Washer
Figure 4H
