PNEG-1550 Belt Guard
Installation
2. Installation of New Belt Guard Brackets.
A. 6'', 8'', 10'' Horizontal and 25° Powerheads, also the Vertical Drive on 8'' Double-Drive
Vertical Powerheads.
a. Place the New Belt Guard Brackets on the Motor Mount Adjustment Rods, with the
tops of the Brackets facing away from the Drive Shaft.

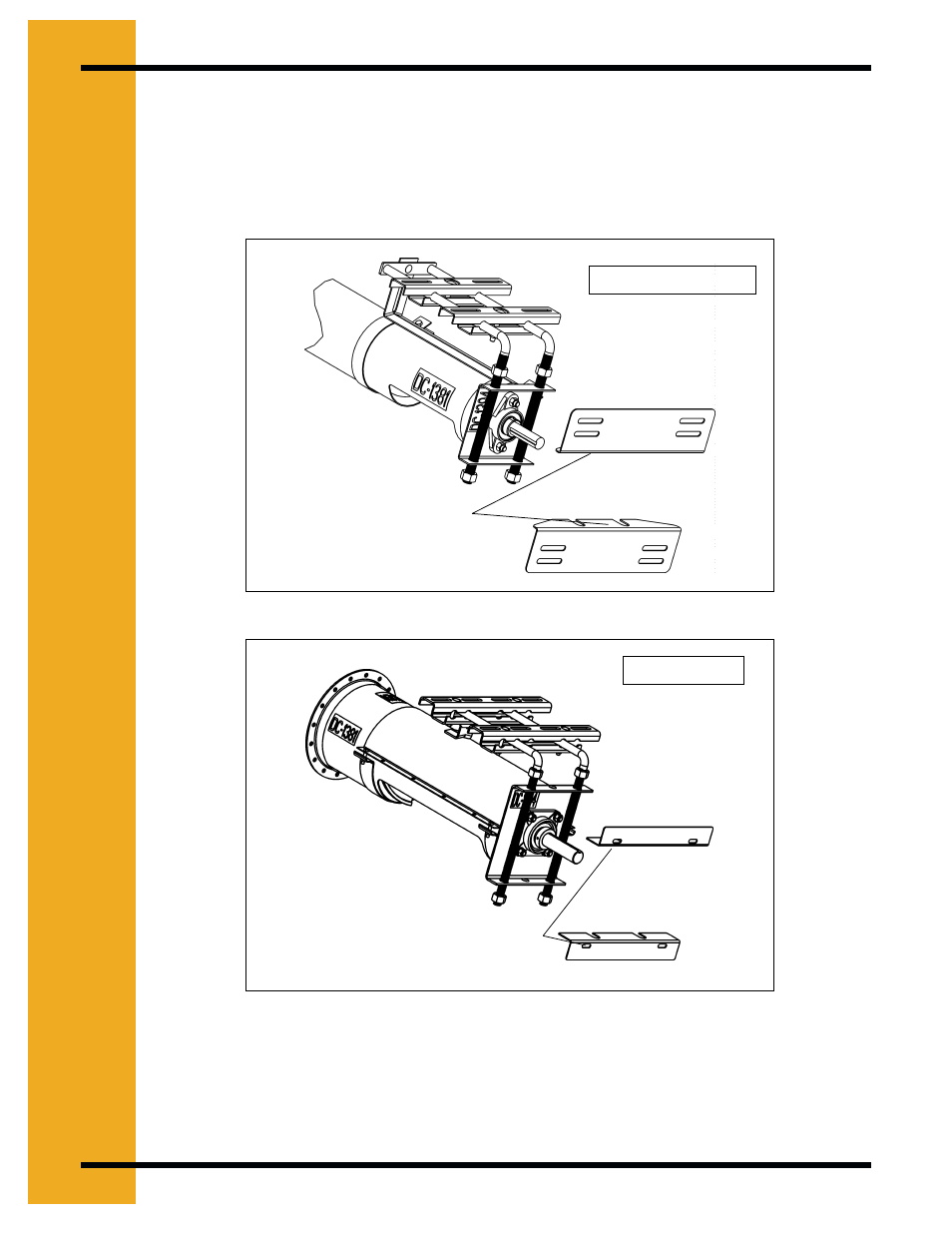

New Belt Guard
Mounting Brackets
Note: All 6'' and All 8''
New Belt Guard
Mounting Brackets
Note: All 10''
Figure 4E
Figure 4F
b. Slightly tighten the 3/4'' Motor Mount Adjustment Nuts to hold the Brackets. You will
need to adjust these to put the Motor in the proper position later.
