Installation – Grain Systems Unload Augers PNEG-1550 User Manual
Page 12
12
PNEG-1550 Belt Guard
Installation

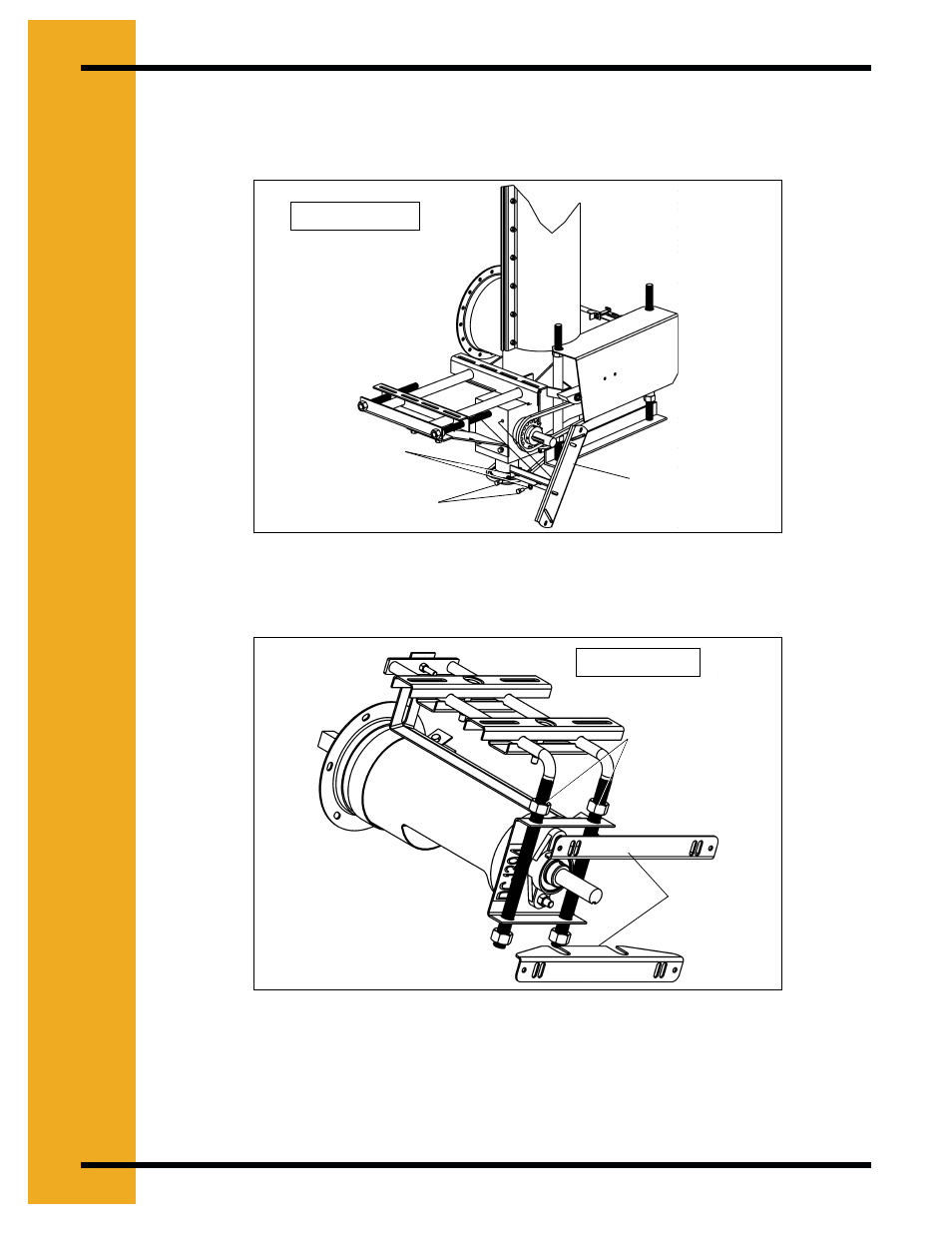

E. Removal of existing Belt Guard Brackets.
a. On 6'', 8'', and 10'' Single Drive Verticals, unbolt the two (2) 3/8'' x 1'' Hex bolts, lock
washers, and flat washers attaching the Belt Guard Bracket.
Lock Washers
Note: 10'' Shown
3/8'' x 1''
Hex Bolts
Existing Belt
Guard
Figure 4A
b. On 6'', 8'', 10'' Horizontal and 25° Powerheads, loosen the 3/4'' Motor Mount
Adjustment Nuts.
Note: 6'' Shown
3/4'' Motor Mount
Adjustment Nuts
Belt Guard
Brackets
Figure 4B
