PNEG-1550 Belt Guard
17
Installation
5. Install the New Belt Guard.
A. Remove the 3/8'' x 3/4'' Flange bolt from the Bottom Belt Guard Cover, holding it in place.
B. Remove the Cover.
C. Slip the Belt Guard down over the Motor and Drive Sheaves, enclosing the Drive belts.
D. Bolt the Belt Guard loosely to the Belt Guard Mounting Bracket(s) with the supplied two
(2) or four (4) 3/8'' x 3/4'' Flange bolts. Consult the Figures below for your application.

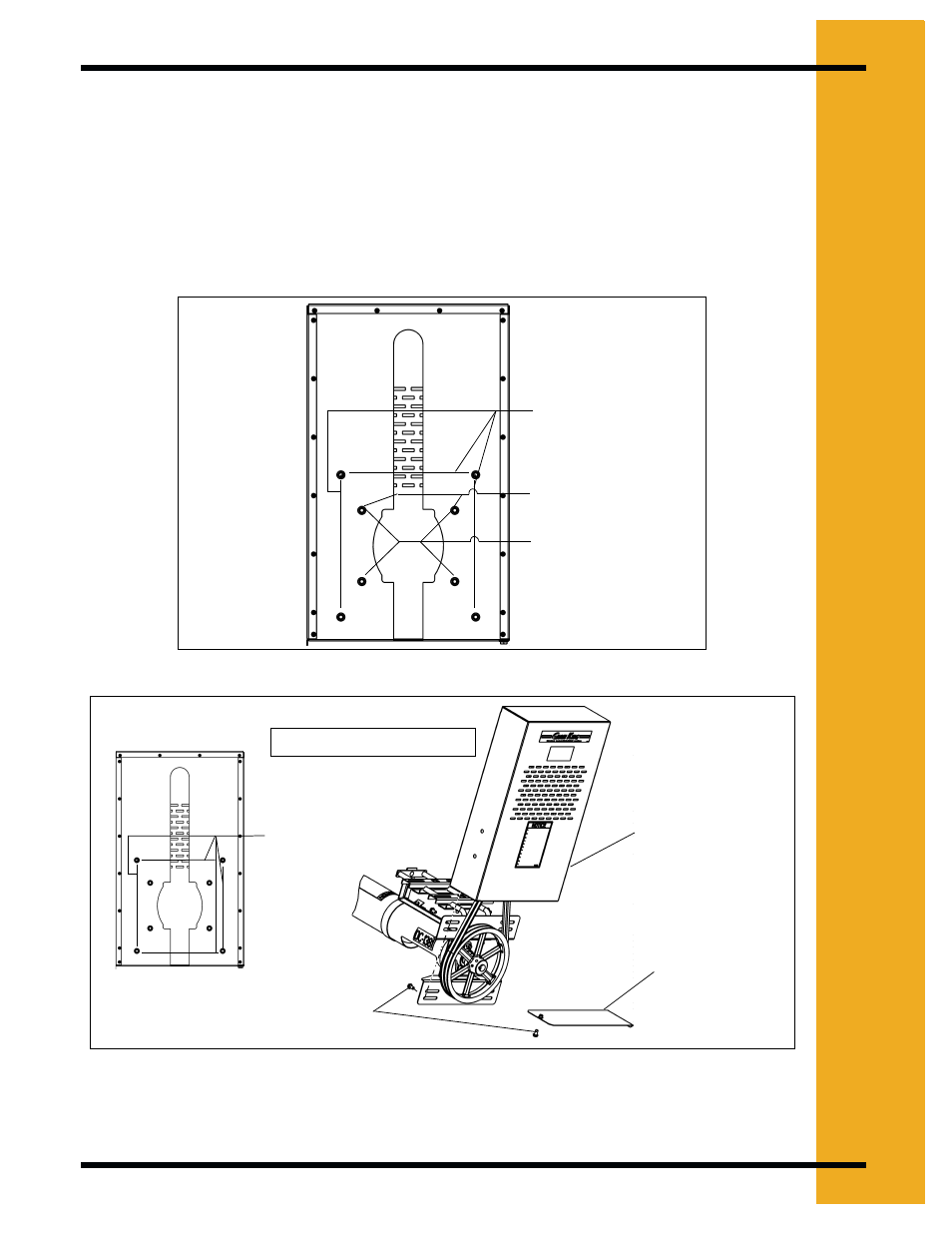

6'', 8'' and 10'' Single
Drive Powerheads
6'', 8'' and 10''
Powerheads
Horizontal Drive on
8'' Double Drive
Powerheads
Belt Guard
3/8'' x 3/4''
Flange Bolts
Bottom Belt
Guard Cover
Note: Installation for All 6''
6'', 8'' and 10''
Powerheads
Figure 4J
Figure 4K
