SIx-GUN TROUBLESHOOTING USING
THE BANKS POWERPDA (V1.2)
The standard Six-Gun Diesel
Tuner requires the engine coolant
temperature (ECT) to be above 110º
before it will add fuel. If you feel
that your Six-Gun Diesel Tuner is not
functioning properly, some diagnostics
can be performed. check the Banks
PowerPDA’s Status Indicator for the
“OK” icon. Any Six- Gun Tuner fault will
be indicated by the “Banks Engine”
icon (see Figure 22) and its cause
can be investigated by going to the
‘Self Diagnostics’ screen and scrolling
through the list of logged tuner events.
1.
Press the center button on the
5- way navigator to take you to the
System Menu screen.
2.
Touch the button labeled ‘More>’
to move to the second screen of the
System Menus.
3.
Next, touch the ‘Self Diagnostics’
button. (See Figure 23)
4.
The ‘Self Diagnostics’ screen
displays a log of diagnostic events
related to the Six-Gun tuner (See
Figure 26). The ‘Logged Events’ list
takes a moment to update each time
this screen is opened (as indicated
by a slight flickering of the list). Once
the list is updated, the most current
event will appear at the top of the
list. Each event has an associated
timestamp and description, which will
be displayed below the list when that
event is highlighted. Each key cycle
of the vehicle produces a minimum of
two logged events. (See Figure 24)
5.
Touch the ‘Down’ or ‘Up’
buttons to scroll through the list of
recorded events. Table 1 lists the
available diagnostic codes and the
recommended course of action for
each.
6.
Touch the center button on the 5-
way navigator (or the ‘Back’ button) to
return to the System-Monitor screen.
SIx-GUN TROUBLESHOOTING
WITHOUT THE BANKS POWERPDA
Your Six-Gun Diesel Tuner is equipped
with diagnostic features that will
detect and display certain errors.
Section 7
TROUBLESHOOTING

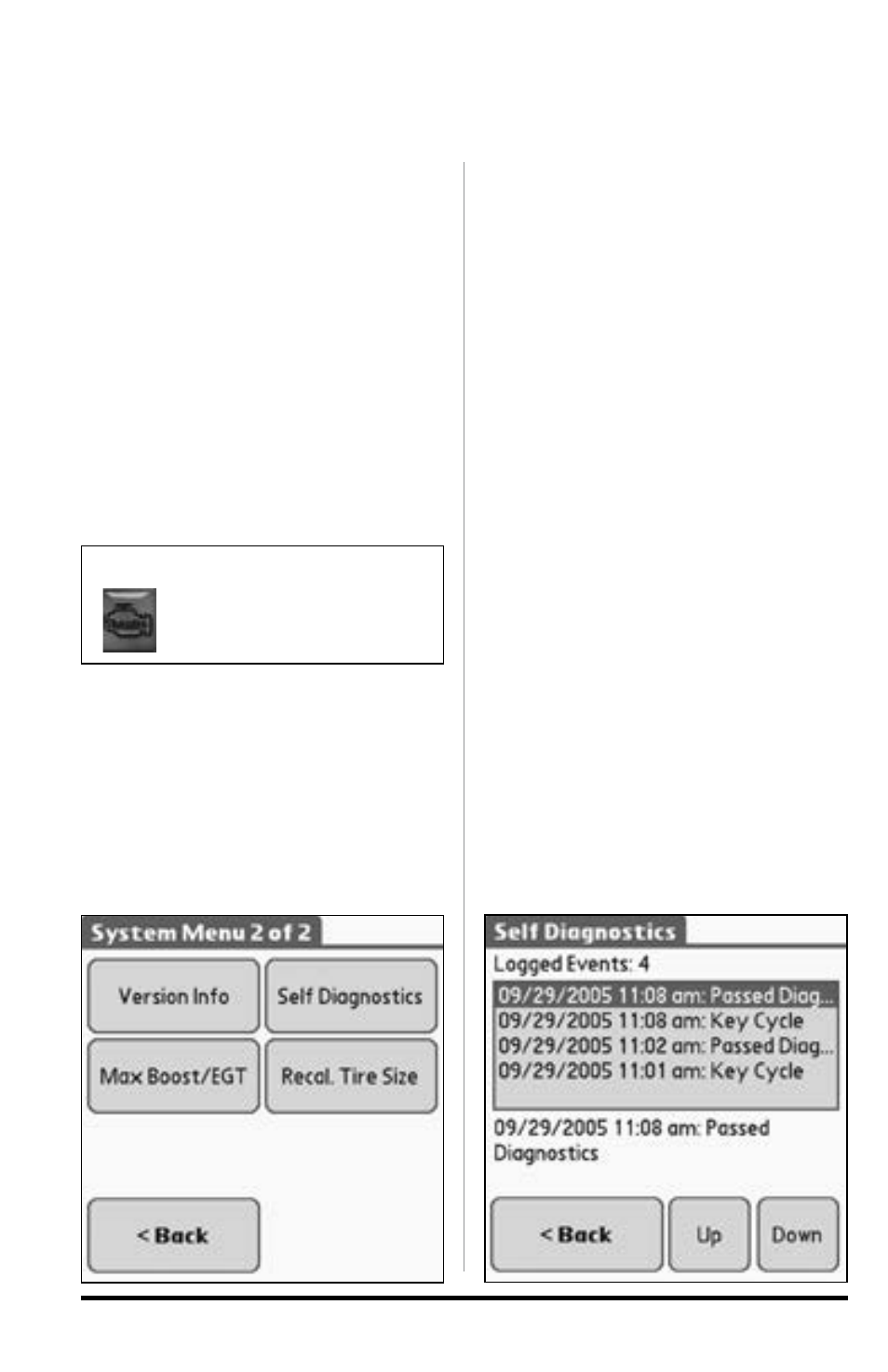

SIX-GUN TUNER IcoN
Figure 22
Figure 23 Figure 24
