locating washer tab is inserted into the
#6 position on the switch (see Figure
20).
Note: If the washer is in any position
other than the #6, your Six-Gun Diesel
tuner will not select power levels
correctly.
27.
After confirming the locating
washer is in the #6 location, install the
switch through the 3/8” hole on the
backside of the bezel. The alignment
pin should rest in the 1/8” hole and
with the switch fully rotated counter
clockwise; the shaft’s flat side should
be facing the steering column. Secure
switch with internal tooth washer and
nut. Snug the nut. Be careful not to
over torque the nut and damage the
plastic threads.
28.
Install the knob onto the shaft
facing the #1 Level on the Six-Gun
label. On the knob, snug the two (2)
set screws with the supplied 0.050”
hex key wrench.
29.
Reinstall the removed panels.
Make sure to reconnect all electrical
connecters disconnected previously.
30.
Route the Six-Gun switch wires
down to the steering column.
31.
Route the Six-Gun switch’s cable
to the wire harness that was routed
into the passenger compartment from
the Six-Gun module, and plug the 2-pin
connector into the corresponding
connector on the Six-Gun harness.
32.
Re-install the electric connector
bracket that was removed in Step 5 of
Section 1 below the steering column
in the front of the firewall with the
original two (2) bolts.
33.
Re-install the three screws
securing the center bezel.
34.
Route all wiring away from any
pedals or other moving components.
Using the cable ties supplied, secure
the wiring under the dash. Secure all
wiring under the hood away from heat
sources or sharp edges. Re-install the
lower dash panel with the original 2
bolts.
-END, SECTION 3-

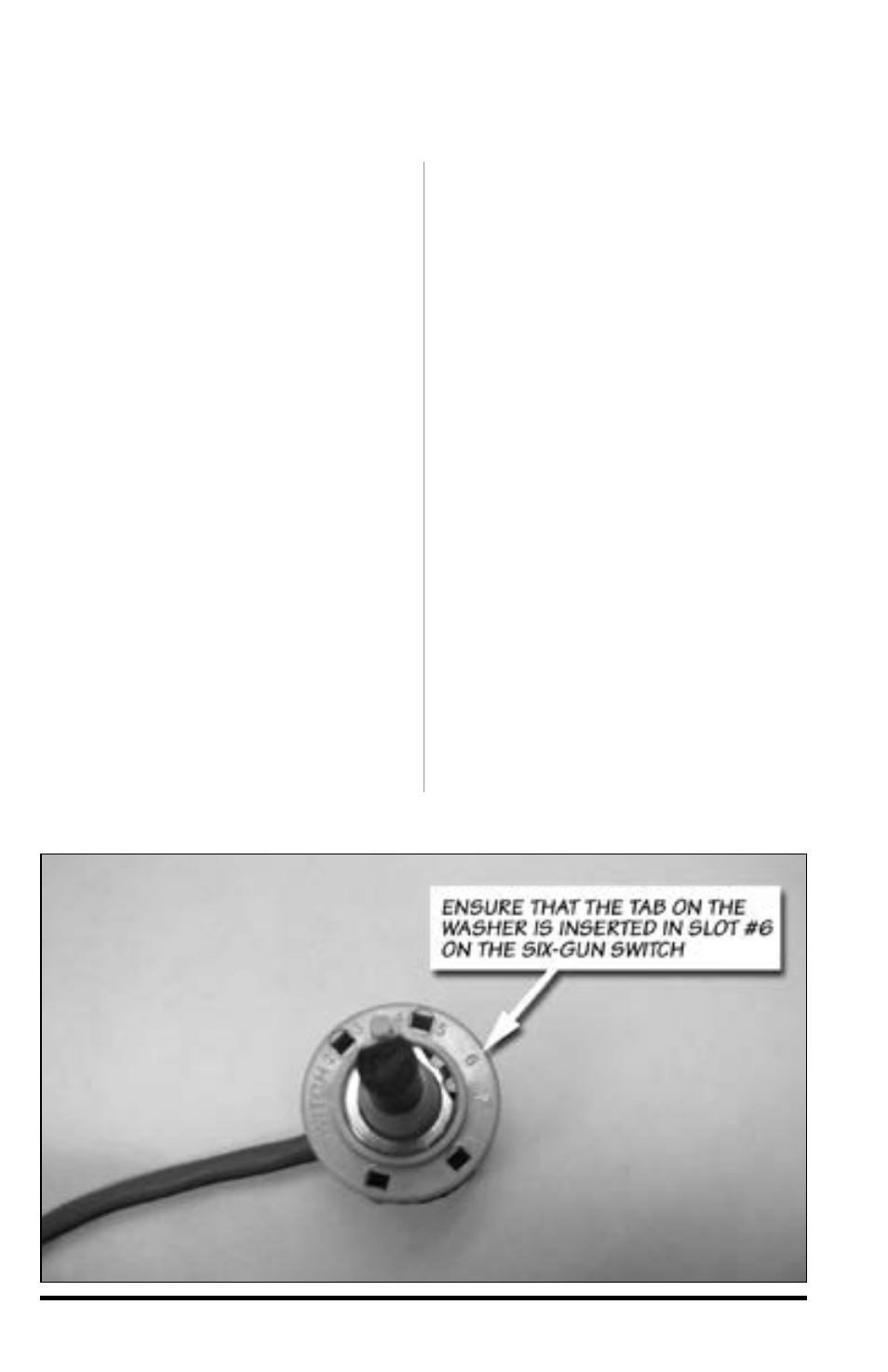

Figure 20 Six-Gun Switch, Orientation of the Tab on the Washer
