12
96810 v.7.0
14.
Locate the camshaft Position
(cMP) sensor below the fuel injection
pump between the timing gear
cover and the EcM. Unplug the
factory connector and plug it into
the corresponding male cMP sensor
connector on the Six-Gun harness.
Plug the Six-Gun’s female CMP
sensor connector into the sensor. See
Figure 10.
15.
Remove the fuse box cover,
located in left front side of the engine
compartment. Locate the mini-fuse
#28 and remove it. Install the mini-
auto blade tap onto the removed mini
fuse as shown in Figure 11.
Re-install the mini fuse with the
attached blade tap into location #28
as shown in Figure 12. Plug in the
terminal to the mini-auto blade.
Note: Install the mini-auto blade tap
on the terminal leg closest to the
engine. this is the “hot” side of the
circuit.
CAUTION: It is very important that
you select the proper fuse. The
Banks Six-Gun Diesel Tuner will
not function properly if installed
incorrectly.
16.
In the engine compartment,
locate the BLAcK Ground wire with
the ring terminal on the Six-Gun Diesel
Tuner wire harness. Install this ring
terminal onto the fender ground stud,
over the ring terminals already there,
and re-install the nut. See Figure 13.
Note: Go over the entire installation as
a precautionary check to ensure that
all clamps are tight, wiring and hoses
are properly routed, and connections
are correct and tight. Make sure that
the Six-Gun wire harness is not lying in
the way of the brake and gas pedals,
or any moving parts.

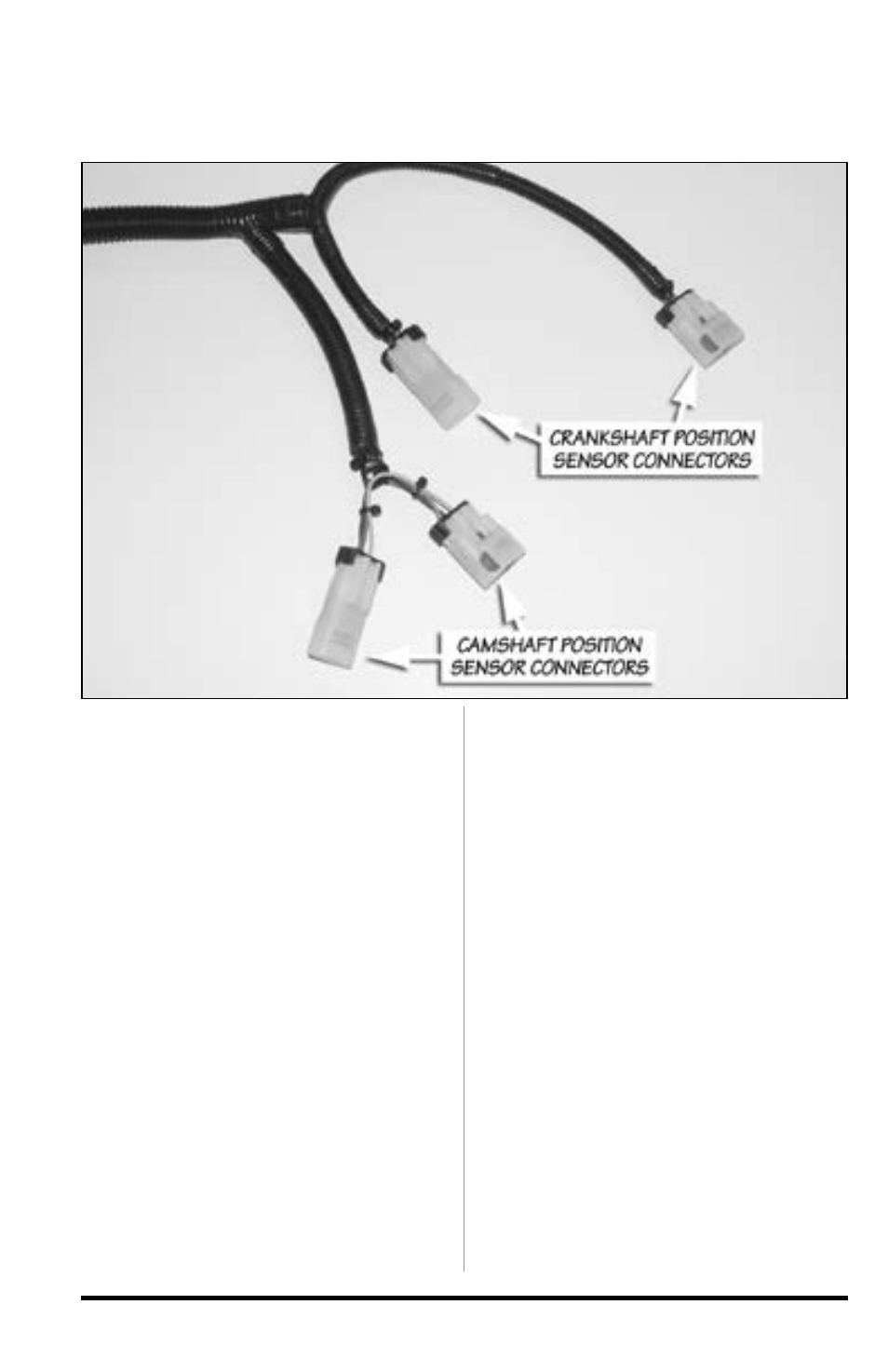

Figure 8
